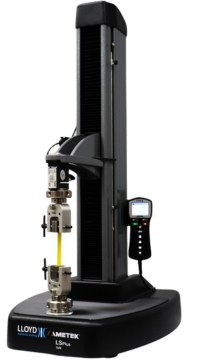

LS5 Plus Standard
Référence: AME-LS5+SH-230V
https://www.analis.com/shop/ame-ls5-sh-230v-ls5-plus-standard-115259 https://www.analis.com/web/image/product.template/115259/image_1920?unique=689d05dEnhanced Materials Testing Capabilities with the LSPlus Series for compression and tensile testings
The LS5 Plus (up to 5KN), see technical specifications below, is part of a serie of 3 available configurations: LSPlus1, LSPlus2.5, and LSPlus5.
Lloyd Instruments introduces the LSPlus Series, a significant advancement in materials testing technology. Building upon the established reputation of the LS Series, the LSPlus incorporates cutting-edge components to deliver unparalleled performance and reliability for diverse material testing applications.
Unmatched Precision and Accuracy
The LSPlus Series boasts superior speed control and enhanced accuracy compared to its predecessor. The high-precision, interchangeable YLC Series load cells guarantee meticulous results, with an impressive ±0.5% reading accuracy down to 1/100th of the load cell capacity. This enables engineers to have the utmost confidence in their material analysis data.
Versatile Design for Varied Testing Needs
Available in three configurations (LSPlus1, LSPlus2.5, and LSPlus5) with distinct sizes and capacities, the LSPlus Series offers the versatility needed to accommodate a wide range of material testing requirements across numerous industries. From tensile and compression testing to peel adhesion testing of materials like rubber and medical devices, the LSPlus Series consistently delivers dependable results.
Advanced Functionality for Streamlined Testing Workflows
The LSPlus Series facilitates seamless testing through interchangeable grips and a comprehensive suite of material test types offered within the NEXYGENPlus software, exceeding basic functionality. This software allows for effortless data exchange with Excel and Word for efficient analysis and reporting, revolutionizing the way test results are interpreted and presented. The LSPlus empowers engineers to effortlessly convert raw data into actionable insights, saving valuable time and resources throughout the testing process.
Maximized Throughput without Compromising Accuracy
For high-volume testing applications and automated environments, the LSPlus Series excels with its exceptional material test and return speed of 2032 mm/min (80 in/min). This advancement goes beyond mere speed; it empowers users to achieve unmatched efficiency and productivity. The increased return speed significantly boosts operational throughput, enabling engineers to handle tasks more swiftly and effectively. Importantly, this speed enhancement is achieved without sacrificing accuracy. Operations will run smoothly and seamlessly, upholding the precision and reliability that engineers depend upon.
Unlock the Potential of Advanced Materials Testing
Discover how the LSPlus Series from Lloyd Instruments can revolutionize your materials testing experience. Contact us today to request more information and explore how our advanced solutions can be precisely tailored to address your specific material testing needs. Upgrade to the LSPlus Series and experience a new level of precision, reliability, and efficiency in your materials testing.
Request more information to see how we can help you with a materials testing solution that suits your need.
Données Techniques
Dimensions:
| Quote | Type | LS1Plus | LS2.5Plus | LS5Plus |
| A | Standard Travel | 500 mm (19.7 in) | ||
| A | Extended Travel | 800 mm(31.5 in) | ||
| B | Width (excluding console) | 460 mm (18.1 in) | ||
| C | Depth | 557 mm (21.9 in) | ||
| D | Base Height | 108 mm (4.3 in) | ||
| E | Throat Depth | 180 mm (7.1 in) | 150 mm (5.9 in) | 150 mm (5.9 in) |
| F | Max. Crosshead Travel, Standard Travel | 500 mm (19.7 in) | 1400mm (55 1in) | 800mm (31.5 in) |
| Weight | Column break | 52 kg (115 lb) | 82kg (180 lb) | 67 kg (148 lb) |
| Specifications per Series | LS1Plus | LS2.5Plus | LS5Plus |
| Force Capacity | 1000N/225 lbf | 2500 N (562 lbf) | 5000N (1124 lbf) |
| Crosshead Speed Range | 0.01 to 2032 mm/min | 0.001
to 2032 mm/min (LS2.5Plus, LS5Plus<2000N) |
0.001
to 1016 mm/min (LS5Plus >2000) |
| Return Speed | 2032 mm/min (80 in/min) | ||
| Speed Accuracy | +/- 0.1% above 0.1 mm/min | +/- 0.1% above 0.01 mm/min | +/- 0.1% above 0.01 mm/min |
| Extension Resolution | 0.04 microns | ||
| Load Cell | < ± 0.5% of reading down to 1/100 of load
cell capacity, Resolution 32-bit A/D converter, Min. Load Resolution 1 part in 109, |
||
| Extensometer Inputs | Optional, Analog and Digital | ||
| Data Transfer Rate to PC | 1 kHz | ||
| Supply Voltage | 207-253 VAC at 50 Hz or 103.5-126.5 VAC at 60 Hz | ||
| Load Measuring System | EN ISO 7500-1:2015 Class 0.5 ASTM E4 | ||
| Operating Temperature | 10 to 40° C /50 to 104° F | ||
| Control Modes | Position, Load Rate, and Strain Rate control | ||
| Position Repeatability | <10microns | ||
| Relative Humidity | 20% to 85% (Non-condensing) |
