LABTECH

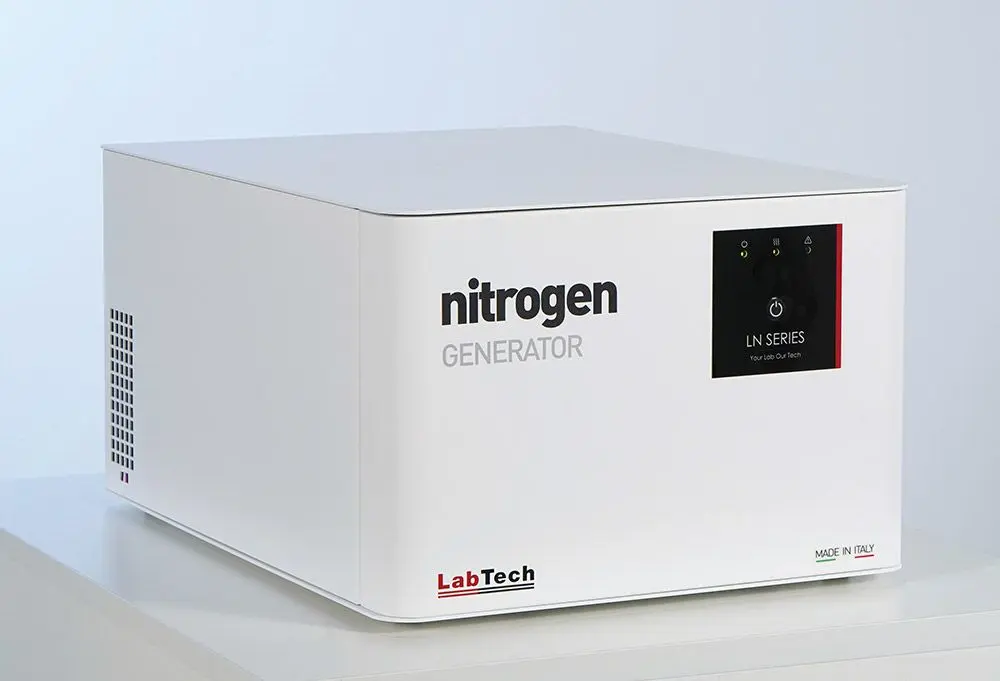

Générateur d’azote

Référence: LAT-LN15NC

https://www.analis.com/web/image/product.template/139937/image_1920?unique=5195dcb
Laboratory Nitrogen Generator - LN Series (Up to 99.9999% purity)
The LN Series nitrogen generators provide on-site production of high-purity nitrogen (up to 99.9999%) for analytical instruments including GC, LC-MS and ICP.

The system is designed for laboratories transitioning from cylinder-based supply to continuous, controlled and modular nitrogen generation, with configurations available with or without integrated compressor.

Configurations include standard LN models and LNC versions with integrated compressor, with optional catalyst solutions available for applications requiring low hydrocarbon (THC) levels.

Where on-site nitrogen generation is critical

  • Carrier and make-up gas for GC
  • LC-MS / LC-MS/MS nitrogen supply
  • ICP and ICP-MS operation
  • Analytical workflows requiring stable purity and flow

Key features

  • Continuous on-demand nitrogen production
  • Purity up to 99.9999%
  • Modular and stackable configuration for space optimization
  • Versions with integrated compressor (LNC) or external air supply
  • Auto-run and process monitoring via touchscreen
  • Catalyst option for low THC requirements

    This combination does not exist.

    Données Techniques

    • Nitrogen purity: up to 99.9999%
    • Flow rate: up to 70 L/min (model dependent)
    • Outlet pressure: up to 8 bar
    • THC (hydrocarbon content): <0.1 ppm (LNGC models)
    • Air quality requirement: ISO 8573-1:2010 Class [1:3:1]
    • Operating temperature: 5–40 °C
    • Relative humidity: 20–80%
    • Noise level: <35 dB (LN) / higher for compressor versions

    Documents connexes

    NOM DU DOCUMENT

    DATE DE SORTIE

    TÉLÉCHARGER

    Brochure LabTech Gas Generators EN
    29 / 04 / 2026
    Download icon Télécharger

    Accessoires, consommables et produits connexes

    Compresseur d’air de laboratoire
    LABTECH

    Compresseur d’air de laboratoire

    Reference : LAT-LAC40N
    Laboratory Air Compressor - Oil-Free, Low Noise, Integrated System

    LabTech air compressors provide clean, dry and oil-free compressed air for laboratory instruments and gas generators.

    Designed for continuous operation, they ensure autonomous air supply with stable pressure and integrated storage tank for peak demand.

    Available models include LAC35, LAC40N, LAC200S and LAC220S, covering flow rates from 35 to 220 L/min for typical laboratory needs.

    Where compressed air supply is critical

    • AAS and ICP-OES operation
    • Evaporation systems
    • Zero air generators (LZA series)
    • Nitrogen generators (LN series)
    • Thermogravimetric analysis (TGA)
    • Direct mercury analysis (DMA)

    Key features

    • Oil-free compressed air generation
    • Low noise operation for laboratory environments
    • Built-in humidity removal system
    • Automatic water drain
    • Integrated storage tank for peak demand
    • Self-protection and safety systems
    • Autonomous operation (on-demand production)
    • Stackable design (LAC40N)

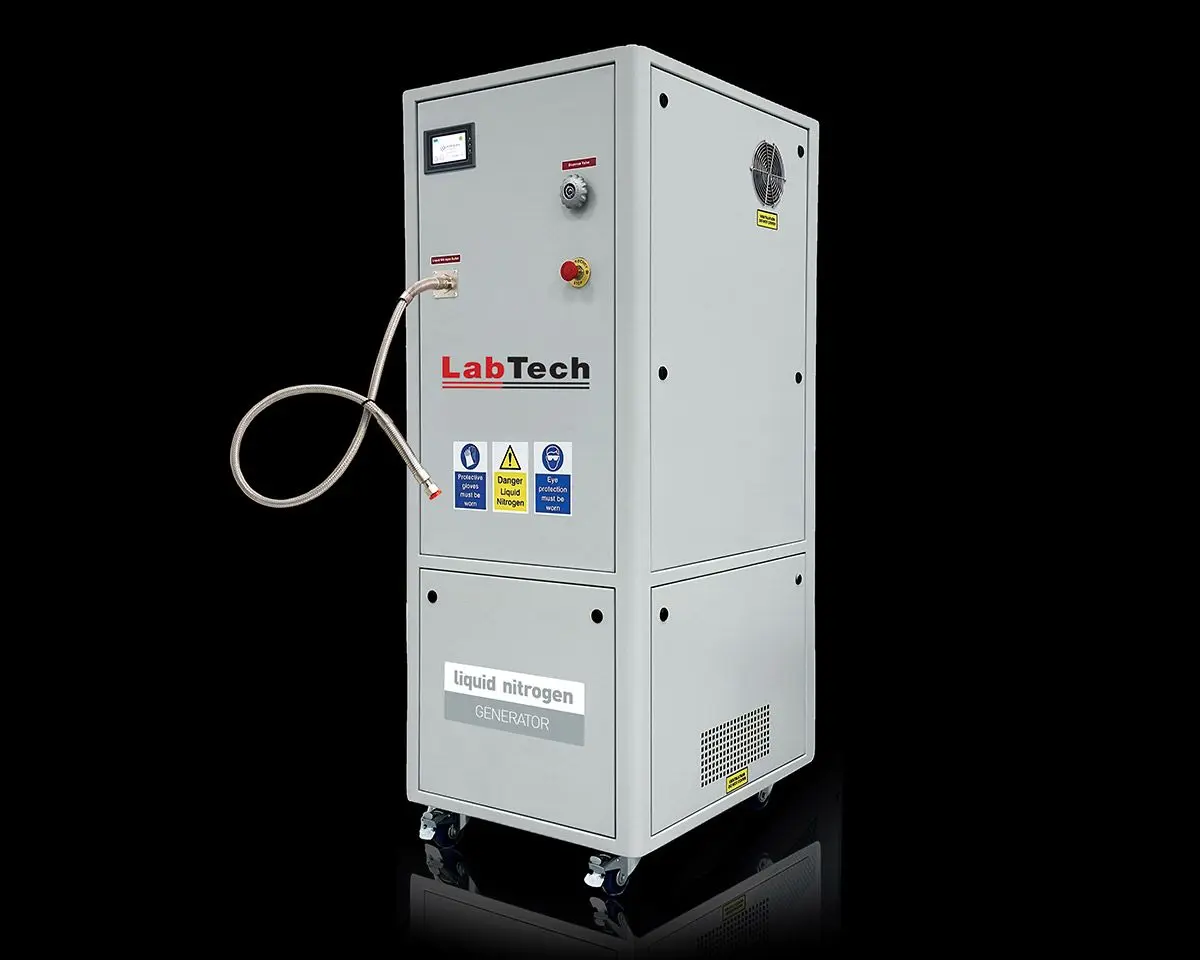

    Générateur d’azote liquide
    LABTECH

    Générateur d’azote liquide

    Reference : LAT-LLN20AC
    Liquid Nitrogen Generator - On-Site LN₂ Production (8–80 L/day)

    LabTech liquid nitrogen generators enable on-site production of LN₂ (from ~6–10 up to 60–80 L/day depending on model) using PSA and cryogenic liquefaction.

    They provide a continuous, controlled and autonomous LN₂ supply directly in the laboratory, eliminating delivery constraints and evaporation losses.

    Where on-site liquid nitrogen is essential

    • Cryopreservation and biobanking
    • NMR systems
    • Cryogenic GC applications
    • Medical and laboratory cooling workflows

    Key features

    • On-site LN₂ production (up to 80 L/day)
    • Integrated air compressor and dewar tank
    • Cryogenic liquefaction at –196.76 °C
    • PSA separation with CMS technology
    • Touchscreen control with real-time monitoring
    • Automatic level control and safe dispensing

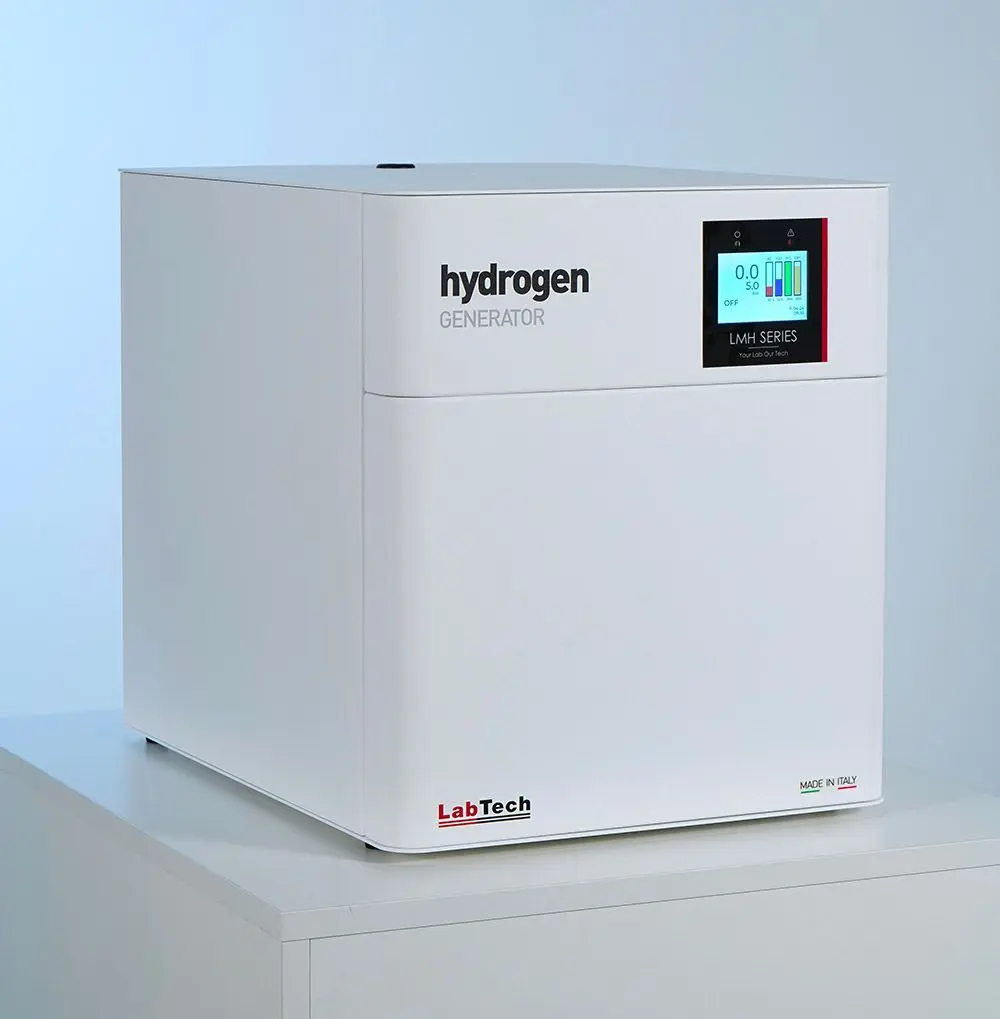

    Générateur d’hydrogène
    LABTECH

    Générateur d’hydrogène

    Reference : LAT-LMH350NPLUS
    Laboratory Hydrogen Generator - LMH Series (PEM, >99.99999%)

    The LMH and LMHPLUS hydrogen generators use multilayer PEM electrolysis to produce hydrogen with purity up to >99.99999%, suitable for GC, GC-MS and ICP-MS applications.

    They are designed for continuous and controlled hydrogen production with integrated safety monitoring and automated leak detection.

    Where hydrogen generation is critical

    • Carrier gas for GC and GC-MS
    • Fuel gas for FID detectors
    • ICP-MS collision gas
    • Hydrogen-based analytical processes

    Key features

    • PEM electrolysis technology
    • Continuous 24/7 hydrogen production
    • Maintenance-free drying system (LMHPLUS)
    • Automatic leak detection at startup
    • Integrated water tank with auto-refill
    • Touchscreen interface and remote connectivity options

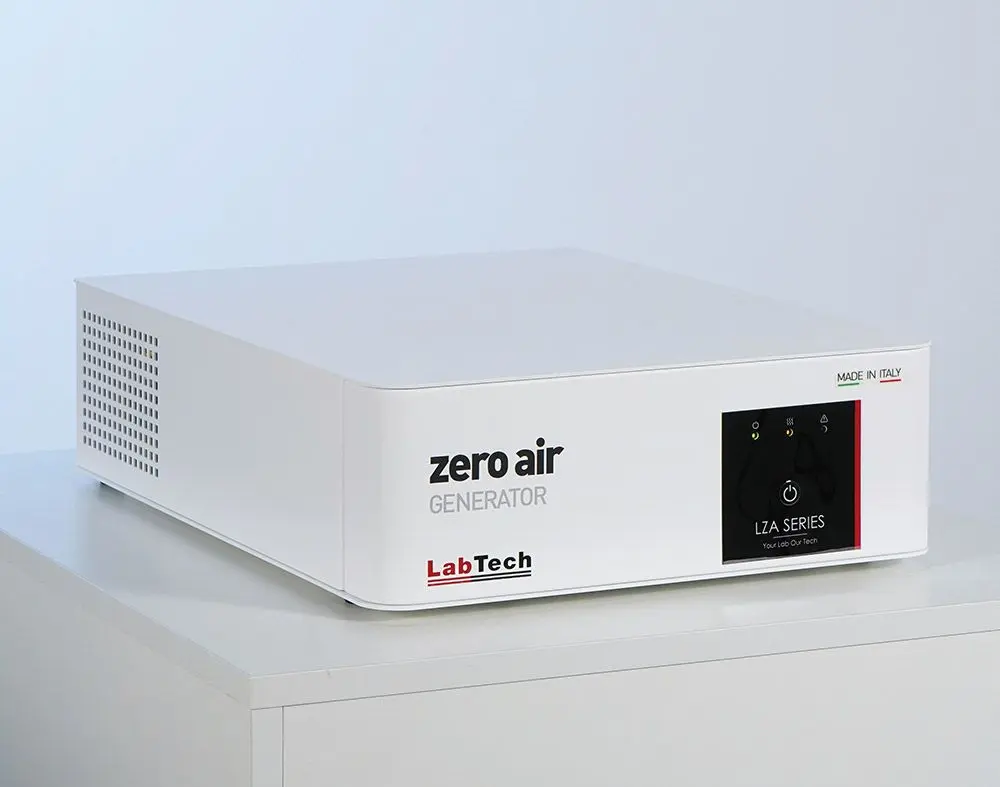

    Générateur d’air zéro
    LABTECH

    Générateur d’air zéro

    Reference : LAT-LZA3000N
    Zero Air Generator - LZA Series (Hydrocarbon-Free Air <0.05 ppm THC)
    The LZA Series generates hydrocarbon-free air (<0.05 ppm THC) using heated catalyst purification, for analytical instruments requiring clean combustion or reference air.
    It provides a compact, continuous and on-site alternative to cylinder-based air supply.

    Where ultra-clean air is required

    • Flame Ionization Detectors (FID)
    • Flame Photometric Detectors (FPD)
    • Hydrocarbon analysis systems
    • Reference air for analytical instruments

    Key features

    • Heated catalyst technology for hydrocarbon removal
    • THC <0.05 ppm
    • Flow rates up to 30,000 cc/min
    • Continuous air purification
    • Plug-and-play laboratory integration
    • Compact and stackable design
