BECKMAN COULTER LIFE SCIENCES

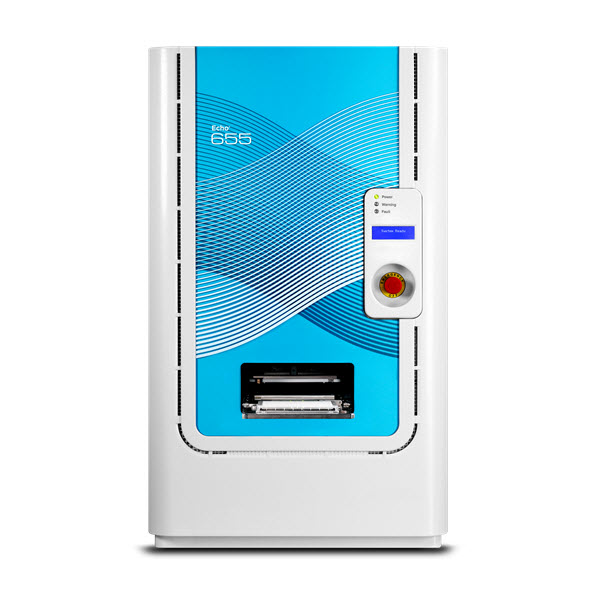

Echo® 655 Next generation high-throughput acoustic liquid handler

Référence: BEC-001-16080

Tip-less and contact-free automated liquid dispensing solution for NGS, synthetic biology, proteomics, drug discovery, sample management, and functional screening workflows.

Enables assay miniaturization through precise nanoliter-scale transfers
Allows for fast any-well-to-any-well transfers to speed up DNA/RNA normalization, barcoding, and pooling of libraries
Eliminates dependency on single use plastic pipette tips for sustainability.

Includes:
> 1 Echo 655 Liquid Handler with barcode readers (set of 2, for short side reads)
> Accessory Kit Chiller
> 1 USB drive containing ECHO v3 Server Software and user manual
> Screening and Omics Liquid Classes
> Standard Drop Placement Verification Test

The Omics2 liquid class includes the transfer of aqueous based fluid types from Echo Qualified 384-well Polypropylene (PP) 2.0 and 384-well Low Dead Volume (LDV) source plates. Scrn2 liquid class enables the transfer of 70-100% DMSO from Echo Qualified 384-well Polypropylene (PP) 2.0, 384 well Low Dead Volume (LDV), and 1536-well Low Dead Volume (LDV) source plates.

Demander plus d’information

Echo® 655 Next generation high-throughput acoustic liquid handler

Données Techniques

Minimum Table Support Requirements	54x70cm(21x28in)
Platform	Echo 600 Series
Sterile	No
Power Requirements	AC 120V, 50/60 Hz, 10 A or AC 230V, 50/60Hz, 5 A
Operating System	Windows® 7 - 32-bit
Software	Microsoft® Windows® 7 32-bit or 64-bit*, or Microsoft® Windows® 10 64-bit
Display	1280 x 1024 resolution
Autoclavable	No
Material(s)	Aluminum Chassis, ABS Cover, Acrylic Panels
Finish	Textured
Weight	130 kg(286.6 lb)
Width	53.9 cm(21.2 in)
Depth	68.3 cm(26.9 in)
Height	92.5 cm(36.4 in)
Temperature Range	21°C ± 5°C (70°F ± 9°F)
Humidity Restrictions	10% - 80% (non condensing) at 21°C
