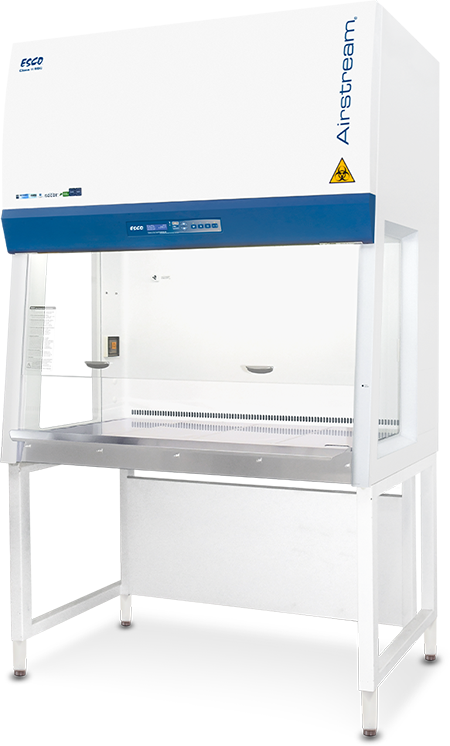

AC2-6E8 Airstream® ClassII, Biological Safety Cabinet (E-Series), 1.8m

Référence: ESC-2010657

The Esco Airstream® Gen 3 Class II Biological Safety Cabinet (AC2) is an effective solution in providing operator, product and environmental protection. It also features stable and self-compensating airflow, despite building voltage fluctuations & filter loading. Certified to EN 12469, Esco Airstream® Class II Biological Safety Cabinet also has antimicrobial coating on all its external and internal painted surfaces for improved safety.

The AC2- E series has tempered glass sidewalls that increases visibility and prevents the operator from experiencing a ""boxed-in"" feeling. This unit is also equipped with multi-piece, autoclavable work tray for easy cleaning process.

Demander plus d’information

AC2-6E8 Airstream® ClassII, Biological Safety Cabinet (E-Series), 1.8m

Données Techniques

Section	Specification
A. General Construction
External Dimensions	Without Base stand: 1950 x 810 x 1400 mm (76.8” x 32.0” x 55.1”) With Optional Base stand 711 mm (28”): 1950 x 810 x 2111 mm (76.8” x 32.0” x 83.1”)
Internal Work Area Dimensions	1830 x 580 x 660 mm (72.0” x 22.8” x 26.0”) Area: 0.86 m² (9.2 ft²)
Working Opening	190 mm (7.5”)
Material	Main body: 1.2 mm (0.05”) 18-gauge electro-galvanized steel with white oven-baked epoxy-polyester anti-microbial powder coated finish Work Zone: Abrasion and corrosion resistant 304 grade, 1.5 mm 16-gauge stainless steel with 4B finish Side walls: UV-absorbing tempered glass, 5 mm (0.2”), colorless and transparent ISOCIDE™ Antimicrobial Powder coating
Weight	346 kg (763 lbs) (Excluding optional stand)
B. Blower and Filtration
Blower	Equipped with one Direct current Electronically Commutated Motor (DC ECM) Low heat and low energy consumption offering 70% more energy savings Auto-compensating feature that adjusts blower speed in case of filter loading
Filtration	Ultra-low Particulate Air (ULPA) / H14 filter with 99.999% efficiency at 0.3-0.1 μm Average airflow velocity (Inflow) of 0.45 m/s (90 fpm) ISO 14644-1 Class 3 air quality
C. Control Panel and Electrical
Control Panel	Sentinel™ Gold Microprocessor Controller Four-line LCD display Soft touch keys for Blower, Light, and UV lamp with LED indicator QuickStart Mode and Standby Mode UV timer Audible and visual alarms
Electrical Requirements	Power rating: 230 V AC 50/60 Hz, 1 Ø Nominal Power Consumption: 283 W Heat dissipation: 966 BTU/h
Lighting	Fluorescent lamp intensity: 1384 Lux Optional UV lamp (253.7 nm)
D. Ergonomics
Ergonomics	Easy-to-service: All electrical components located at the back of the front panel Centered and angled-down location of the control panel Low noise emission of 58.2 dBA (NSF/ANSI 49); 53.6 dBA (EN12469) Optional ergonomic footrest and lab chair Angled arm rest for comfortable working position Easy-to-reach electrical outlets located at the sides of the cabinet Easy-to-clean coved corners in the working area and smoothly finished corners of the drain pan Easy-to-lift autoclavable multi-piece work tray with large tray handles
E. Accessories	Support stand (Leveling feet or Caster wheels or Telescoping) Electrical Outlets UV lamp Service fixtures (Gas, water, etc.) IV Bars Exhaust accessories (Air-tight damper, thimble exhaust collar, anti-blowback valve, tri-safe exhaust collar with alarm) Air-tight cable port Footrest Lab Chair PVC arm rest Pre-filter
