ESCO LIFE SCIENCES

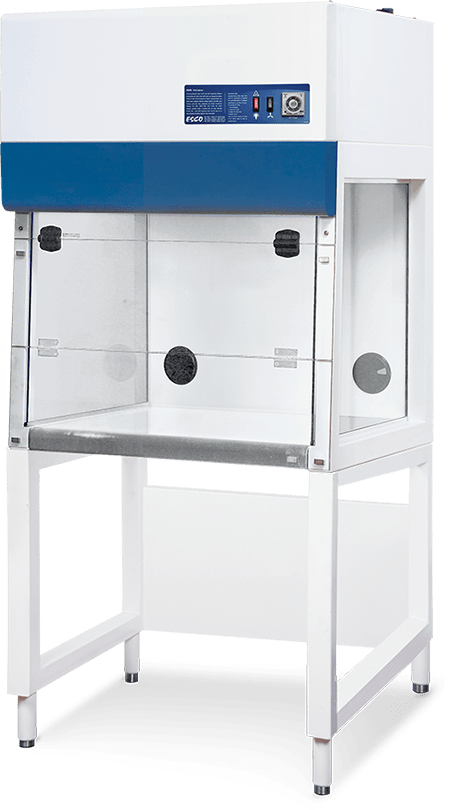

SCR-2A1 Streamline® polymerase chain reaction cabinet, 0.6m

Référence: ESC-2150009

In practice, all polymerase chain reaction (PCR) procedures are conducted in the same room. Under these circumstances, PCR Cabinets are used for reagent preparation and sample preparation to minimize contamination. Because of the high copy number generated during PCR, it is essential to prevent possible contamination of the PCR.

Esco Streamline® PCR Cabinet (SCR) provides a compact and low footprint environment for handling reagents such as PCR master mixes. It is equipped with simple rocker switches to control blower, light, and UV. The HEPA-filtered air guarantees a contaminant-free environment for reliable PCR results.

Demander plus d’information

SCR-2A1 Streamline® polymerase chain reaction cabinet, 0.6m

Données Techniques

GENERAL CONSTRUCTION
Nominal Size	0.6 meter (2’)
Main Body	Electrogalvanized Steel with white oven-baked epoxy-polyester powder coated finish, Coated with Esco Isocide™ antimicrobial coating
Workzone	1.2 mm (0.05”) 18-gauge stainless steel grade 304
Side walls	UV-absorbing tempered glass, 5 mm, colourless transparent
External dimensions (L x W x H)	730 x 617 x 950 mm (28.7” x 24.3” x 37.4”)
Internal dimensions (L x W x H)	630 x 538 x 550 mm (24.8” x 21.2” x 21.7”)
Net Weight	76.5 kg (169 lbs)
BLOWER AND FILTRATION
Laminar Airflow Velocity	0.30 m/s (60 fpm)
Motor	Direct current Electronically Commutated Motor (DC ECM)
Air Quality	ISO 14644-1 Class 3
HEPA Filter	99.99% efficiency at 0.3 µm
Disposable Fibres	85% arrestance
INTERFACE AND ELECTRICAL
Controller	Rocker switches
Power Rating	220-230 VAC, 50 Hz, 1 Ø
Nominal Power	136 W
Heat Dissipation	464 BTU/h
Lighting	Fluorescent lamp intensity: 800 Lux
UV Decontamination	253.7 nm 15W UV lamp
ERGONOMICS
Sound Emission	<63 dBA
Design	Angled front, rounded work surface front edge, glass sides
OPTIONS AND ACCESSORIES
Accessories	Hinged Front Cover, UV Lamp, Support Stand with Caster Wheels, Support Stand with Levelling Feet, and Telescoping Support Stand with Levelling Feet
