LABTECH

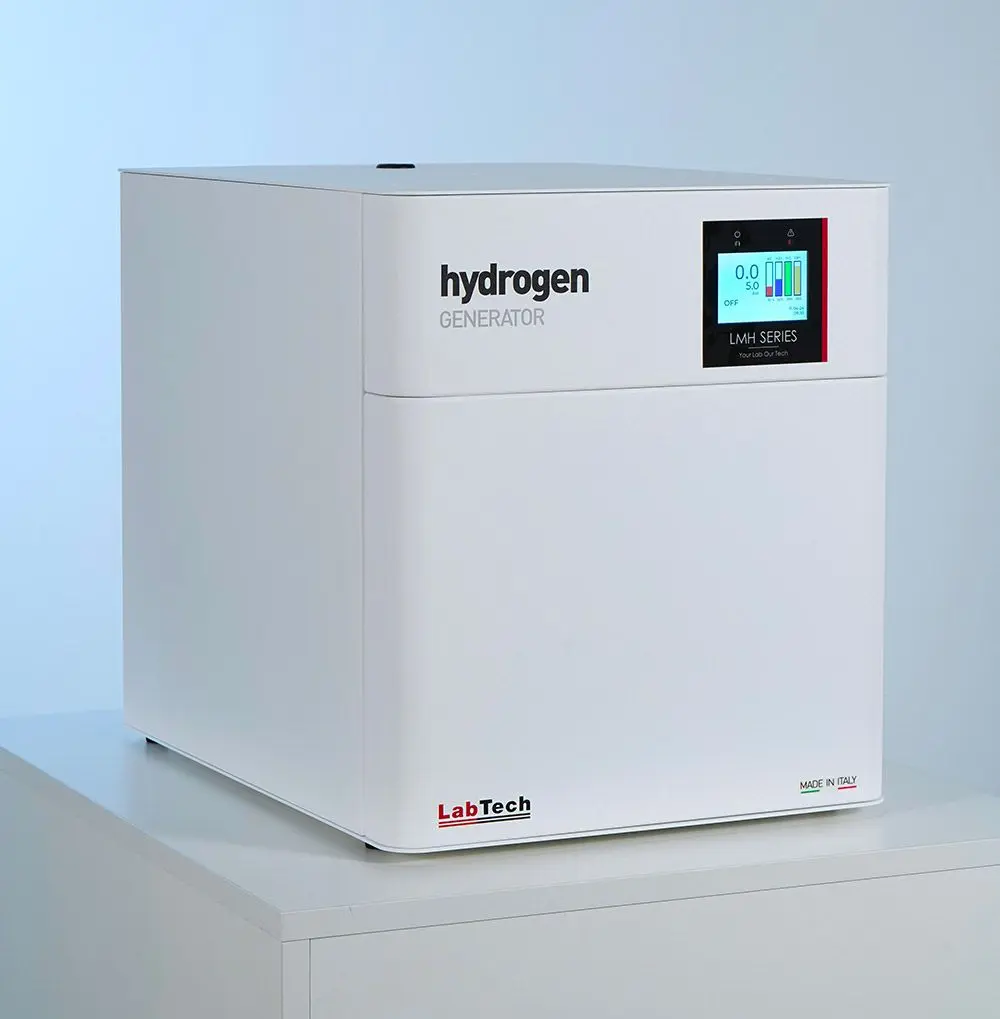

Générateur d’hydrogène

Référence: LAT-LMH350NPLUS

Laboratory Hydrogen Generator - LMH Series (PEM, >99.99999%)

The LMH and LMHPLUS hydrogen generators use multilayer PEM electrolysis to produce hydrogen with purity up to >99.99999%, suitable for GC, GC-MS and ICP-MS applications.

They are designed for continuous and controlled hydrogen production with integrated safety monitoring and automated leak detection.

Where hydrogen generation is critical

Carrier gas for GC and GC-MS
Fuel gas for FID detectors
ICP-MS collision gas
Hydrogen-based analytical processes

Key features

PEM electrolysis technology
Continuous 24/7 hydrogen production
Maintenance-free drying system (LMHPLUS)
Automatic leak detection at startup
Integrated water tank with auto-refill
Touchscreen interface and remote connectivity options

Demander plus d’information

Données Techniques

Hydrogen purity: >99.99999%
Flow rate: up to 1200 cc/min
Outlet pressure: up to 16 bar (optional)
Drying system: PSA / maintenance-free (PLUS)
Water quality: deionized ASTM II (<0.1 µS)
Internal water tank: 3 L
Noise level: <35 dB
Operating temperature: 5–30 °C

Documents connexes

NOM DU DOCUMENT

DATE DE SORTIE

TÉLÉCHARGER

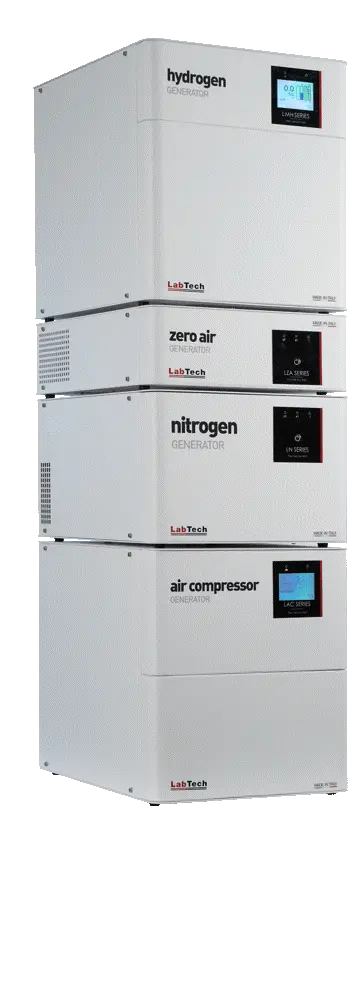

Brochure LabTech Gas Generators EN

29 / 04 / 2026

Télécharger

Accessoires, consommables et produits connexes

LABTECH

Compresseur d’air de laboratoire

Reference : LAT-LAC40N

Laboratory Air Compressor - Oil-Free, Low Noise, Integrated System

LabTech air compressors provide clean, dry and oil-free compressed air for laboratory instruments and gas generators.

Designed for continuous operation, they ensure autonomous air supply with stable pressure and integrated storage tank for peak demand.

Available models include LAC35, LAC40N, LAC200S and LAC220S, covering flow rates from 35 to 220 L/min for typical laboratory needs.

Where compressed air supply is critical

AAS and ICP-OES operation
Evaporation systems
Zero air generators (LZA series)
Nitrogen generators (LN series)
Thermogravimetric analysis (TGA)
Direct mercury analysis (DMA)

Key features

Oil-free compressed air generation
Low noise operation for laboratory environments
Built-in humidity removal system
Automatic water drain
Integrated storage tank for peak demand
Self-protection and safety systems
Autonomous operation (on-demand production)
Stackable design (LAC40N)

LABTECH

Générateur d’azote liquide

Reference : LAT-LLN20AC

Liquid Nitrogen Generator - On-Site LN₂ Production (8–80 L/day)

LabTech liquid nitrogen generators enable on-site production of LN₂ (from ~6–10 up to 60–80 L/day depending on model) using PSA and cryogenic liquefaction.

They provide a continuous, controlled and autonomous LN₂ supply directly in the laboratory, eliminating delivery constraints and evaporation losses.

Where on-site liquid nitrogen is essential

Cryopreservation and biobanking
NMR systems
Cryogenic GC applications
Medical and laboratory cooling workflows

Key features

On-site LN₂ production (up to 80 L/day)
Integrated air compressor and dewar tank
Cryogenic liquefaction at –196.76 °C
PSA separation with CMS technology
Touchscreen control with real-time monitoring
Automatic level control and safe dispensing

LABTECH

Générateur d’azote

Reference : LAT-LN15NC

Laboratory Nitrogen Generator - LN Series (Up to 99.9999% purity)

The LN Series nitrogen generators provide on-site production of high-purity nitrogen (up to 99.9999%) for analytical instruments including GC, LC-MS and ICP.

The system is designed for laboratories transitioning from cylinder-based supply to continuous, controlled and modular nitrogen generation, with configurations available with or without integrated compressor.

Configurations include standard LN models and LNC versions with integrated compressor, with optional catalyst solutions available for applications requiring low hydrocarbon (THC) levels.

Where on-site nitrogen generation is critical

Carrier and make-up gas for GC
LC-MS / LC-MS/MS nitrogen supply
ICP and ICP-MS operation
Analytical workflows requiring stable purity and flow

Key features

Continuous on-demand nitrogen production
Purity up to 99.9999%
Modular and stackable configuration for space optimization
Versions with integrated compressor (LNC) or external air supply
Auto-run and process monitoring via touchscreen
Catalyst option for low THC requirements

LABTECH

Générateur d’air zéro

Reference : LAT-LZA3000N

Zero Air Generator - LZA Series (Hydrocarbon-Free Air <0.05 ppm THC)

The LZA Series generates hydrocarbon-free air (<0.05 ppm THC) using heated catalyst purification, for analytical instruments requiring clean combustion or reference air.

It provides a compact, continuous and on-site alternative to cylinder-based air supply.

Where ultra-clean air is required

Flame Ionization Detectors (FID)
Flame Photometric Detectors (FPD)
Hydrocarbon analysis systems
Reference air for analytical instruments

Key features

Heated catalyst technology for hydrocarbon removal
THC <0.05 ppm
Flow rates up to 30,000 cc/min
Continuous air purification
Plug-and-play laboratory integration
Compact and stackable design
