REPHILE

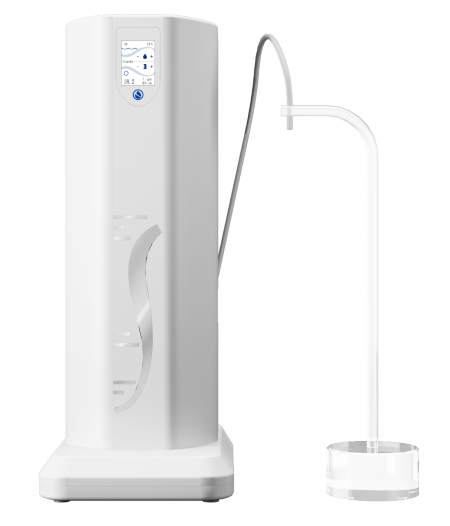

Genie De-Ion Unit

Référence: REP-RG0P0U005

Genie De-ion water purification & dispensing kit is a bi-functional kit that is specially designed to fulfill the stringent requirements of trace and ultra-trace element analyses. It not only serves as a polishing unit to further purify ultrapure water fed by RephiLe Genie ultrapure water purification systems but also provides secure delivery of analytical-grade purified water, elemental contaminants down to ppt and sub-ppt levels.

Multiple options can be chosen to withdraw product water, through the control console, the built-in touchscreen on the kit, or the foot-switch.

The system is CE/RoHS certified. RephiLe provides full document support to meet users’ GMP, GSP, GAP, GCP, GLP requirements.

Feed ultrapure water only.
Product: ICP grade ultrapure water.

Can be used with GENIE G, U, PURIST
and Super GENIE G and U systems only.

Powerful ICP ultra-purification cartridge

In-depth removal of ultra-trace ions to extremely low levels, commonly ppt and even sub-ppt
Improved water quality stability and processing efficiency due to an optimized flow scheme
High pressure rated housings, proprietary sealing, and double O-ring designs ensure operational confidence
RFID tracking and monitoring for optimal system performance and real-time operational intelligence
Easy access through the front door. Installation and maintenance require no tools or experience

2.4” built-in color capacitive touchscreen

Display of adequate product water information, such as quality, flow rate, and other key parameters for real-time monitoring
Manual and volumetric dispensing and dispensing rate adjustment
Highly responsive, water-proof, and latex-glove friendly. Perfect for wet labs
Easy to clean & resistant to scratches

Easy integration into a laboratory space and simple to use

Metallic-free water tubing support is easily adaptable to a laminar flow hood
The foot-switch allows hands-free water delivery with no cross-contamination.

Main Components

1. Transparent plastic tubing support

Placement flexibility. Separate installation in a laminar flow hood or any other clean and controlled environments
Metallic-free and extremely low extractable. Contaminant-free
Seamless design with an exceptionally smooth surface to prevent the growth of microorganisms and collection of particles from surroundings. Easy to clean and maintain
Durable. Chemicals and solvents resistant and high environmental stability
Lightweight. Easy to handle

2. Internal 0.1μm filter

Capable of filtering off any particles or other contaminants bigger than 0.1 μm in purified water
To ensure that no particles are released into the delivery, thus preventing particles from entering and clogging the pumps, the capillary tubing, or other equipment components

(*It is recommended that the 0.1 μm filter and the Genie ICP Pack be replaced at the same time to maintain the required water quality.)

3. Footswitch

Touch-free operation to reduce the risk of cross-infection from hands, gloves, or breathing
Added work efficiency since it gives users the ability to multitask with full use of both hands
In compliance with GLP (Good Laboratory Practice) and other standards and specifications for clean environments

Demander plus d’information

Données Techniques

Product Water Quality
Flow Rate	0 – 1.5 L/min
Footswitch Flow Rate	Up to 1.5 L/min
Resistivity (@25°C)	18.2 MΩ·cm
TOC	≤2 ppb
Dimensions & Weight
System Dimensions (W x D x H)	21 × 29 × 53 cm (8.3 × 11.4 × 20.9 in)
Weight	8 kg
Holder tubing length	3 m
