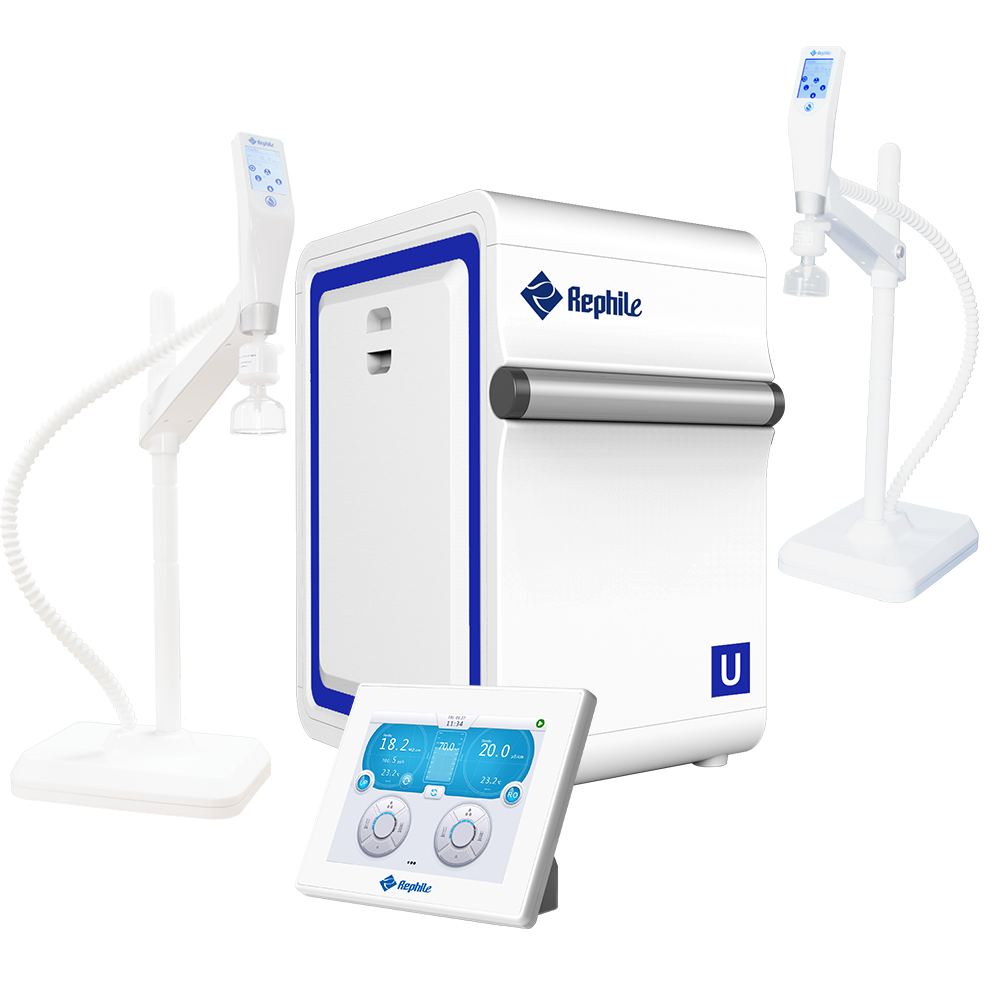

Genie U 32 System set

Référence: REP-RG0U03000K

Genie U produces ultrapure water (Type I water) and RO water from tap water directly, it offers desired solutions for research professionals who work with varieties of applications utilizing Type I ultrapure and RO pure water in the lab. Quality of ultrapure water meet or exceeds ASTM, CLSI, CAP, and ISO Type I water standards.

The system is CE/RoHS certified. RephiLe provides full documents support to meet user’s GMP, GSP, GAP, GCP, GLP requirements.

Design & Functions

The system can be linked to multiple dispensers via CAN cable or wireless. “1+N” Mode.
Automatic temperature compensation allows RO production rate stable over a wide range of temperature.
Fully automated control system has cleaning, rising, flush and many other functions.
System automatically rinses a new RO membrane. Users do not need to set special rinse program for a new RO membrane.
A bypath automatically sends the RO water to the drain if it does not meet a preset quality standard. The RO drain water is reused to increase the water yield thus it is more environmentally friendly.
The main system can be tucked away to save precious bench space since it fits well to be wall-mounted, set on the shelf or under the sink.
The Chlorine cleaning and pH cleaning functions keep the maintenance easier and ensure optimal water quality.
Leak protector incorporated can prevent damage from a water leakage by shutting the feed water off in case of unexpected leaking.
Tank recirculation model guarantees water quality in the tank.

Effective TOC level controlment

Built-in 185/254 nm dual wavelength lamp reduces TOC level in ultrapure water.
A tank Sanitization Module is equipped to effectively keep microbial growth at a lower level by LED UVC light.
On-line TOC monitor based on complete oxidation methods (for TOC models).

Easy Operation and Maintenance

Performance history, alarms and alerts information, maintenance data of consumables as well as key parts are logged and traceable from a simple RFID scan at installation.
RFID tags ensure perfect placement of consumables and trace their performance.
Water quality, operation parameters, the status of the system, dispensers, components, and peripheral devices are stored and displayed on the large color touch screen monitor.
Signature verification for maintenance and service.

Cartridges and Parts

1. Cartridge

Pre-filtration pack removes most large particles, chlorine, calcium or organic compounds to protect RO membrane to extend their usable life..
AC Pack contains special activated carbon to remove organic impurities and free chlorines.
Ultra purification cartridge is filled with LeFilTM and OrganeFilTM media to remove trace ions and organics.

2. Control console

8-inch console controls system and peripheral devices (Such as leak protector and tank sanitization module). All operations can be done on the console by touching the screen.
The control console can be placed on the bench or inside a drawer for further flexibility and space saving.
The console screen and dispenser screens are water-drop proof. You can operate the console and dispenser with latex gloves on.
The system has two level password protection on display menu for safety purposes.

3. Dispenser

The volumetric function can automatically deliver the water volume you need once it is set up.
With the adjusting button on a control console or a dispenser, you can dispense water at the flow rate you need up to 2 liters per minute.
A dispenser handle can be set on the dispenser stand, on the main system, or even hanging onto other places to free up maximum bench space.

4. Final Filter

A wide range of final filters (optional) is applicable to ensure ultrapure water without particles, bacteria or pyrogen.

5. Level sensor

The tank integrated continuous level sensor measures water level within the tank and manages the system to start or stop producing water automatically based on requirements.
Water level and quality inside the tank can be viewed from the control console.

Demander plus d’information

Rephile RG0U03000K Genie U 32 System Alone

Données Techniques

Feed Water Requirements
Tap water	Municipal water, Conductivity < 2000 μS/cm (1000 ppm)
Operating temperature	5 - 35 ℃
Feed water pressure	1 - 6 bar (15 - 90 psi)
Water Flow Rate
RO water production rate (@ 25℃)	12, 24, 32 L/hr
RO water dispensing rate	Up to 2.0 L/min
Ultrapure water dispensing rate	Up to 2.0 L/min
Product Water Quality
RO water conductivity (@ 25℃)	typically < 20 μS/cm (feed water conductivity < 500 μS/cm)
RO rejection	97 to 98% ionic rejection (new RO cartridge) > 99% organic rejection > 99% particulates & bacteria rejection
Ultrapure water resistivity (@ 25℃)	18.2 MΩ·cm
Ultrapure water TOC*	< 2 ppb
Particles in ultrapure water ( > 0.2 μm)	No particles (with a 0.2 μm final filter or RephiBio filter)
Microorganisms in ultrapure water	< 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio filter)
Pyrogens (endotoxins) in ultrapure water	< 0.001 Eu/ml (with a RephiBio filter)
RNase in ultrapure water	< 0.5 pg/ml (with a RephiBio filter)
DNase in ultrapure water	<10 pg/ml (with a RephiBio filter)
Product Water Quality Stored in Tank ( for tank recirculation models )
Resistivity (＠25℃)	> 1 MΩ·cm (default), adjustable
Dimensions
Main system dimensions Width × depth × height	32 × 44 × 54 cm (12.6 × 17.3 × 21.3 in)
Dispenser dimensions Width × depth × height	21 × 29 × 61 cm (8.3 × 11.4 × 24.0 in)
Weight	20 kg
Input Voltage	110 - 240 VAC
Operating Voltage	24 VDC
Main system power	< 200 W

*In the appropriate operating conditions, otherwise typically ≤5 ppb.
