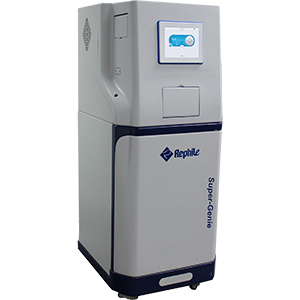

Super-Genie E 500 Water System

Référence: REP-RL0E05H00

The Super-Genie E is specifically designed to produce large volumes of Type II pure water from tap water. The system is manufactured in an ISO 9001 : 2015 certified manufacturing site and CE marked. The quality of EDI water meets or exceeds ASTM, CLSI, CAP, and ISO Type II water standards.

Design & Functions

The system is created to serve as a core workstation, generating purified water for a single lab facility or several labs. It produces large volumes of EDI water.
The system provides overall control and monitoring within the whole water purification network to ensure 100% reliability right from the very beginning. External feed tank, booster pump, prefiltration, distribution pump and leak protector are all controlled by the main system.
The all-in-one design optimizes the use of lab space and has a high degree of integration.
The system can be equipped with multiple remote dispensers to dispense pure water.
Emergency bypass loop sends water through the polishing cartridge in case of a power outage or system downtime to supply critical applications with non-stop water supply for hours.
RephiLe provides full document support to meet the user’s GMP, GSP, GAP, GCP, GLP requirements.

Easy Operation and Maintenance

Automatic RO rinsing program. No special operation is required when a new RO membrane is installed.
Manual and volumetric dispensing, adjustable dispensing rate, and water quality monitoring.
Compact dispensers allow one-handed operation and control with gloves and wet hands. Height adjustable and 360° rotatable on an anti-skid base.
To make maintenance more convenient, no tools are needed in replacing consumables. All consumables are at the front of the system for easy replacement.
Purification packs in a foolproof design with different colored labels ensure error-free and risk-free installation.
Auto-alarm and self-diagnosis functions make users identify and solve problems easily.
Details of daily operation parameters and consumables status are stored and displayed on an 8-inch color touch screen monitor. Operation data is stored for up to two years, which meets traceability requirements.
Easy mobility due to locking wheels makes installation and maintenance convenient.

Parts

1. Pretreatment

Carefully arranged pretreatment module to protect RO membranes and other downstream devices with the maximum ease of installation and maintenance

2. Reverse Osmosis

The automatic bypath sends the RO water to the drain if it does not meet the preset quality standard.
Environmentally friendly. The RO drain water is reused to increase the water yield.

3. EDI

The EDI module uses electrodeionization to further remove ions, organic compounds and has a certain capacity to prevent the growth of bacteria.
The EDI provides superior quality pure water consistently and reliably to ensure low and predictable running costs.
Ion exchange resins are continuously regenerated by an electric field. No hazardous chemical regeneration or costly resin replacement is needed.
EDI module has a high degree of automation and minimal electricity consumption by using the equivalent of the energy. Cost-effective.

4. UV Lamp

An environmentally friendly In-line Mercury-free germicidal UV lamp is applied to kill bacteria.

5. Tank

A 100L integrated tank is standard and upgradable to other sizes.
The large storage tanks integrate distribution modules including loop UV lamp, loop filter, loop resistivity sensor and so on. Provides high-quality and stable distributed water through the loops.
The sanitization module can keep bacteria in storage tanks at a low level by UVC LED lamp.
Spray ball (optional) makes tank cleaning automated and easy.

6. Final Filter

A wide range of final filters (optional) is applicable to ensure ultrapure water without particles, bacteria or pyrogen.

7. Leak protector

The leak protector incorporated can prevent damage from a water leakage by shutting the feed water off in case of unexpected leaking.

Demander plus d’information

Données Techniques

Feed Water Requirements
Tap water	Municipal water, TDS < 1000 ppm ( 2000 μS/cm )
Operating temperature	5 - 35 ℃
Feed water pressure	30 - 90 psi (2 - 6 bar)
Water Flow Rate
EDI water production rate (@ 25℃)	125, 250, 500 L/hr
EDI water dispensing rate	Up to 2.0 L/min
Product Water Quality
RO rejection	> 95% ionic rejection > 99% particulates rejection > 99% organic rejection
EDI water resistivity (@ 25℃)	> 5 MΩ·cm (typically 10 - 16 MΩ·cm)
EDI water TOC*	< 30 ppb
Dimensions
System dimensionsWidth × depth × height	with tank: 56 × 88 × 138 cm (22.0 × 34.6 × 54.3 in)w/o tank: 56 × 61 × 138 cm (22.0 × 24.0 × 54.3 in)
Weight	< 160 kg (500 L/hr: <180kg)
Voltage / Frequency	220 V ± 10%, 50 / 60 Hz (500 L/hr: 380 V ± 10%, 50/60 Hz)
Main system power	< 1500 W (500 L/hr: <2000 W)

*Product water quality may vary due to local feed water conditions.
