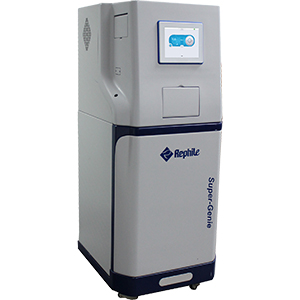

Super-Genie RO 600 Water System

Référence: REP-RL0R06H00

https://www.analis.com/web/image/product.template/10615/image_1920?unique=8fb7ab1

The Super-Genie R is specifically designed to produce large volumes of RO water from tap water. The system is manufactured in an ISO 9001 : 2015 certified manufacturing site and CE marked.

Some benefits of these integrated, centralized and fully-featured water purification systems are:

Design & Functions

  • The system is created to serve as a core workstation, generating purified water for a single lab facility or several labs. It produces large volumes of RO water directly from tap water.
  • The system provides overall control and monitoring within the whole water purification network to ensure 100% reliability right from the very beginning. The external feed tank, booster pump, prefiltration, distribution pump and leak protector are all controlled by the main system.
  • The all-in-one design can optimize the use of lab space and have a high degree of integration.
  • The system can be equipped with multiple remote dispensers to dispense RO water.
  • Emergency bypass loop sends water through the polishing cartridge in case of a power outage or system downtime to supply critical applications with non-stop water supply for hours.
  • RephiLe provides full document support to meet the user’s GMP, GSP, GAP, GCP, GLP requirements.

Easy Operation and Maintenance

  • Automatic RO rinsing program. No special operation is required when a new RO membrane is installed.
  • Manual and volumetric dispensing, adjustable dispensing rate, and water quality monitoring.
  • Compact dispensers allow one-handed operation and control with gloves and wet hands. Height adjustable and 360° rotatable on an anti-skid base.
  • To make maintenance more convenient, no tools are needed for replacing consumables. All consumables are at the front of the system for easy replacement.
  • Purification packs in a foolproof design with different colored labels ensure error-free and risk-free installation.
  • Auto-alarm and self-diagnosis functions make users identify and solve problems easily.
  • Details of daily operation parameters and consumables status are stored and displayed on an 8-inch color touch screen monitor. Operation data is stored for up to two years, which meets traceability requirements.
  • Easy mobility due to locking wheels makes installation and maintenance convenient.

Parts

1. Pretreatment

  • Carefully arranged pretreatment module to protect RO membranes and other downstream devices with the maximum ease of installation and maintenance

2. Reverse Osmosis

  • The automatic bypath sends the RO water to the drain if it does not meet the preset quality standard.
  • Environmentally friendly. The RO drain water is reused to increase the water yield.

3. UV Lamp

  • An environmentally friendly In-line Mercury-free germicidal UV lamp is applied to kill bacteria.

3. Tank

  • A 100L integrated tank is standard and upgradable to other sizes.
  • The large storage tanks integrate distribution modules including loop UV lamp, loop filter, loop resistivity sensor and so on. Provides high-quality and stable distributed water through the loops.
  • The sanitization module can keep bacteria in storage tanks at a low level by using an UVC LED lamp.
  • Spray ball (optional) make tank cleaning automated and easy.

4. Leak protector

  • The leak protector incorporated can prevent damage from a water leakage by shutting the feed water off in case of unexpected leaking.


    This combination does not exist.

    Super-Genie RO 600 Water System

    Données Techniques

    Feeding Water Requirements
    Tap waterMunicipal water, TDS < 1000 ppm ( 2000 μS/cm )
    Operating temperature5 - 35 ℃
    Feeding water pressure30 - 90 psi (2 - 6 bar)
    Water Flow Rate
    RO water production rate (@ 25℃)150, 300, 600 L/hr
    RO water dispensing rateUp to 2.0 L/min
    Product Water Quality
    RO water conductivity (@ 25℃)Typically <20 μS/cm
    RO rejection> 95% ionic rejection
    > 99% particulates rejection
    > 99% organic rejection
    Dimensions
    System dimensionsWidth × depth × heightwith tank: 56 × 88 × 138 cm (22.0 × 34.6 × 54.3 in)w/o tank: 56 × 61 × 138 cm (22.0 × 24.0 × 54.3 in)
    Weight< 140 kg (600L/hr: <160kg)
    Voltage / Frequency220 V ± 10%, 50 / 60 Hz
    Main system power< 1000 W (600L/hr: <1500 W)

    *Product water quality may vary due to local feed water conditions.
