EVIDENT

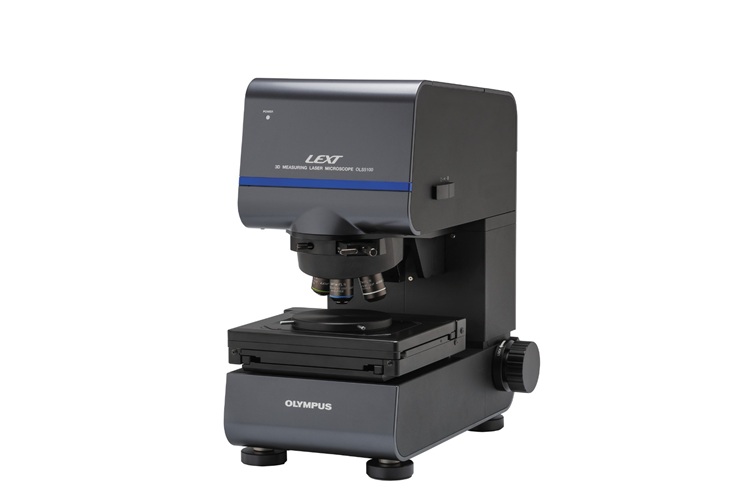

LEXT-OLS5100 Confocale Laserscanningmicroscoop voor Materiaalanalyse

Referentie: EVI-LEXT-OLS5100

3D confocale lasermicroscoop voor contactloze oppervlaktemetrologie.
De Olympus / Evident LEXT OLS5100 biedt precisie op submicronniveau voor materiaalinspectie en kwaliteitscontrole.

- Gegarandeerde submicronprecisie in 3D-metingen (compatibel met ISO 25178)
- Scannen op hoge snelheid en panoramisch hechten voor een groot dekkingsgebied
- Geavanceerde optiek met lage aberratie over het hele gezichtsveld
- Geautomatiseerde analyse en intuïtieve interface stroomlijnen de bediening
- Geschikt voor metalen, halfgeleiders, polymeren en meer

Gebruikt in R&D en QC in verschillende industrieën. Analis kan het systeem configureren volgens uw inspectiebehoeften.

Vraag meer info

LEXT-OLS5100 Confocale Laserscanningmicroscoop voor Materiaalanalyse

Gerelateerde documenten

DOCUMENT NAAM

UITGAVE DATUM

DOWNLOADEN

Brochure EVIDENT LEXT-OLS5100 3D Measuring Laser Microscope EN.pdf

26 / 03 / 2025

Downloaden
