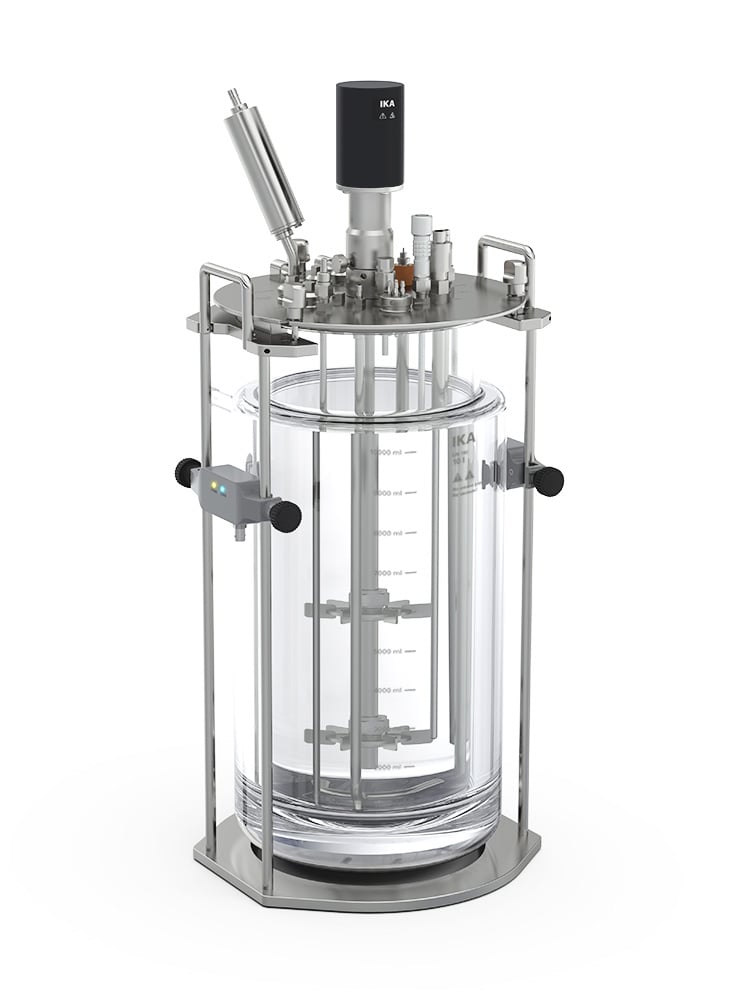

HABITAT ferment dw 10
Reference: IKA-0010007662
https://www.analis.com/shop/ika-0010007662-habitat-ferment-dw-10-110428 https://www.analis.com/web/image/product.template/110428/image_1920?unique=95a34d1The 10 l vessel package for the bioreactor HABITAT research contains a 10 l double-walled glass vessel for fermentation applications as well as the appropriate stirring drive. Together with the separately available control tower package (e.g. HABITAT ferment) you receive all necessary components for a successful cultivation. For temperature control via the double jacket we recommend one of our our circulators such as the HRC 2 basic or control.
Technical information
Reactor: Fermenter
Volume [l]: 10
Type: double wall
Heating blanket: no
Single use: no
Multi use: yes
Autoclavable: yes
Inner diameter [mm]: 190
Ratio = height / inner diameter: 2.47
Useable volume min. [l]: 2.0
Useable volume max. [l]: 12.9
Reactor vessel material: borosilicate glass
Reactor lid material: stainless steel 1.4404
Net weight reactor vessel [kg]: 7.65
Net weight reactor assembled [kg]: 21.9
Number lid ports: 18
Lid ports (Baffle): 1
Lid ports (pH): 1
Lid ports (Reserve): 7
Lid ports (Condenser): 1
Lid ports (Cooling Finger): 1
Lid ports (Inoculation): 1
Lid ports (Harvest Pipe): 1
Lid ports (Sparger): 1
Lid ports (Feed): 0
Lid ports (4in1): 1
Lid ports (Temperature): 1
Lid ports (DO): 1
Lid ports (Level): 1
Material in contact with medium: AISI 316L, borosilicate glass 3.3, silicone USP class VI
Motor coupling: shaft feedthrough
Harvest pipe outer diameter [mm]: 6
Harvest pipe inner diameter: 4
Harvest pipe design: straight
Harvest pipe, height adjustable: yes
Feeding port, outer diamter [mm]: 4.5
Feeding port, inner diamter [mm]: 2
Feeding port, amount: 4
Inoculation port, outer diamter [mm]: 6
Inoculation port, inner diameter [mm]: 4
Sparger: Ring sparger
Sparger, outer diameter [mm]: 8
Sparger, inner diameter [mm]: 6
Sparger pore size [μm]: 500
Cooling finger: Accessory
Cooling finger connection threat [mm]: M27x3
Cooling finger water connection, outer diamter [mm]: 8
Stirrer design: Propeller stirrer, 6-bladed
Stirrer diameter 6 blade impeller [mm]: 68
Ratio = stirrerdiameter 6blade / inner diameter reactor: 0.36
Stirrer quantity: 2
Condenser: yes
Condenser, connection threat: M16x2
Type of cooling: Vertical condenser
Condenser Temperature min. [°C]: 5
Temperature min. / Condenser with Peltier [°C]: 15
Temperature min. / Condenser with water cooling [°C]: 5
Filtertype: sterile filter
Filtermaterial: PTFE reinforced with PP
Filter housing material: PP
Pore size [μm]: 0.22
Filter heater: yes
Spin filter [μm]: 40
Baffle: Accessory
Temperature measuring: yes
Working temperature sensor: PT1000
pH sensor: yes
pH sensor connection threat: PG 13.5
pO2 sensor: yes
pO2 sensor connection threat: PG 13.5
Level sensor: IKA HA.s.lv
Foam sensor: IKA HA.s.fo
Turbidity sensor: Accessory
Conductivity sensor: Accessory
CO2 sensor: Accessory
Speed max. [rpm]: 800
Heating blanket: no
Dimensions (W x H x D) [mm]: 300 x 710 x 300
