OHAUS

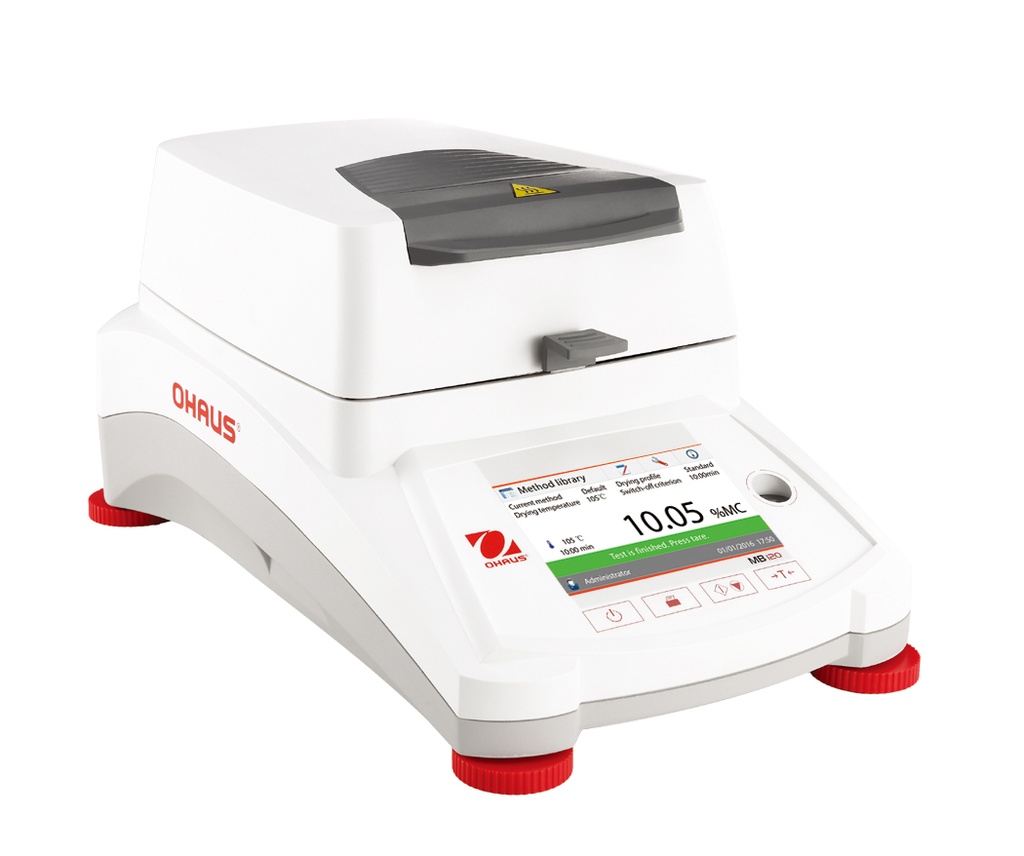

MB120 Moisture Balance

Référence: OHA-30241169

https://www.analis.com/web/image/product.template/3984/image_1920?unique=9c80963

Faster, Smarter, and More Efficient Moisture Analysis

You can analyze more samples using the MB120, retrieve data that has been recorded, and spend more time utilizing your findings rather than preparing.
Everything we use on a daily basis is impacted by moisture. As a result, being able to precisely ascertain the moisture content of samples is frequently crucial. Our flagship moisture analyzer, the MB120, is capable of handling both simple and complex readings, making the procedure easier, faster, and more effective overall. You can analyze more samples using the MB120, retrieve data that has been recorded, and spend more time utilizing your findings rather than preparing.

Applications
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, and Weighing

Display
4.3" TFT color touchscreen display

Operation
Power cord (included)

Communication
RS232 with GLP/GMP data output, USB Host and USB Device (included)

Construction
Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover

Design Features
Seven shut-off criteria (manual, timed, autofree %/s, autofree mg/s, A30, A60 and A90), four drying profiles (standard, fast, ramp and step), storage up to 100 methods and 1000 test results for all methods, user guide, 40°C to 230°C heating temperature range (1°C increments), 14 operational languages

    This combination does not exist.

    MB120 Moisture Balance

    Données Techniques

    Maximum Capacity120 g
    Readability Moisture Content1 mg/0.01%
    Pan Size3.5 in (90 mm)
    Heater TypeHalogen Lamp
    CommunicationUSB device;  USB host x 2;  RS232
    Dimensions13.98 in x 7.09 in x 8.31 in (355 mm x 180 mm x 211 mm) (LxHxW)
    DisplayFull-Color 4.3 in Touchscreen WQVGA
    Heating ProfilesRamp;  Standard;  Step;  Fast
    In-Use CoverIncluded
    Moisture Range0 % ;  100 %
    Net Weight11.53 lb (5.23 kg)
    Operating Range (Temp.)10 °C ;  40 °C
    Power230V
    Sample Size0.5 g ;  120 g
    Shut-Off CriteriaTimed;  Manual;  Custom - User Set Weight Loss/Time;  Custom - User Set Moisture% Loss/Time;  Automatic - Preset Weight Loss/Time
    Temperature Range40 °C ;  230 °C
    Test Library100
    Units of Measurement%DC;  Gram;  %RG;  %MC
    Working Environment50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85% RH, non-condensing)
