OHAUS

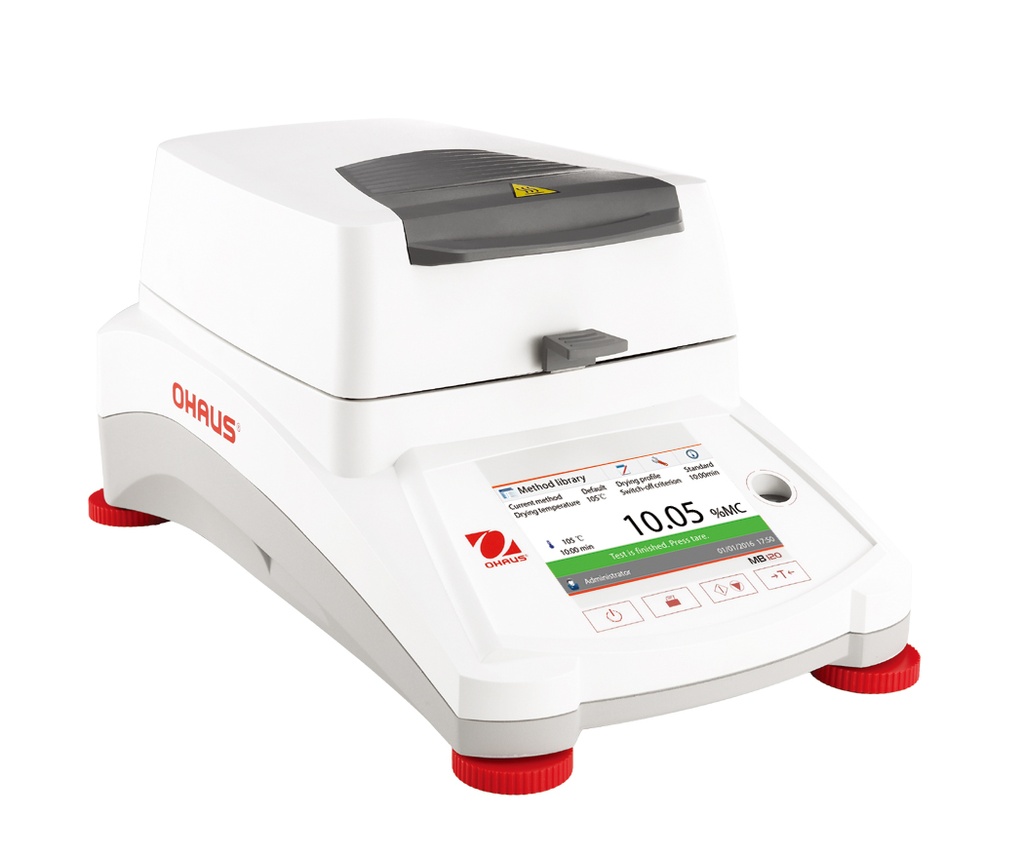

MB120 Moisture Balance

Reference: OHA-30241169

Faster, Smarter, and More Efficient Moisture Analysis

You can analyze more samples using the MB120, retrieve data that has been recorded, and spend more time utilizing your findings rather than preparing.
Everything we use on a daily basis is impacted by moisture. As a result, being able to precisely ascertain the moisture content of samples is frequently crucial. Our flagship moisture analyzer, the MB120, is capable of handling both simple and complex readings, making the procedure easier, faster, and more effective overall. You can analyze more samples using the MB120, retrieve data that has been recorded, and spend more time utilizing your findings rather than preparing.

Applications
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, and Weighing

Display
4.3" TFT color touchscreen display

Operation
Power cord (included)

Communication
RS232 with GLP/GMP data output, USB Host and USB Device (included)

Construction
Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover

Design Features
Seven shut-off criteria (manual, timed, autofree %/s, autofree mg/s, A30, A60 and A90), four drying profiles (standard, fast, ramp and step), storage up to 100 methods and 1000 test results for all methods, user guide, 40°C to 230°C heating temperature range (1°C increments), 14 operational languages

Request more information

Technical information

Maximum Capacity	120 g
Readability Moisture Content	1 mg/0.01%
Pan Size	3.5 in (90 mm)
Heater Type	Halogen Lamp
Communication	USB device; USB host x 2; RS232
Dimensions	13.98 in x 7.09 in x 8.31 in (355 mm x 180 mm x 211 mm) (LxHxW)
Display	Full-Color 4.3 in Touchscreen WQVGA
Heating Profiles	Ramp; Standard; Step; Fast
In-Use Cover	Included
Moisture Range	0 % ; 100 %
Net Weight	11.53 lb (5.23 kg)
Operating Range (Temp.)	10 °C ; 40 °C
Power	230V
Sample Size	0.5 g ; 120 g
Shut-Off Criteria	Timed; Manual; Custom - User Set Weight Loss/Time; Custom - User Set Moisture% Loss/Time; Automatic - Preset Weight Loss/Time
Temperature Range	40 °C ; 230 °C
Test Library	100
Units of Measurement	%DC; Gram; %RG; %MC
Working Environment	50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85% RH, non-condensing)
