Shining3D Freescan Combo+ Laser Handheld 3D Scanner

Référence: SHIN-C9875

Hybrid Handheld 3D Scanner for Metrology & Inspection

The Shining3D FreeScan Combo+ is a hybrid handheld 3D scanner combining blue laser and infrared VCSEL technology. It delivers metrology-grade accuracy up to 0.02 mm for both detailed inspection and large-scale scanning.

Key Advantages for Industrial 3D Scanning

Hybrid light source: laser (precision) + IR (markerless scanning)
4 scanning modes: multi-line, fine, single-line, infrared
High speed: up to 3.6 million points/sec
Deep hole and complex geometry capture
Lightweight and portable (620 g)

Applications: Inspection, Reverse Engineering & Production

Dimensional inspection and quality control
Reverse engineering and product development
Maintenance and manufacturing environments

Optimized for Complex Industrial Surfaces

Efficiently scan dark, reflective, and complex parts with minimal preparation, ensuring reliable results across diverse applications.

Ask Analis local experts for a demo in the Benelux.

Demander plus d’information

Shining3D Freescan Combo+ Laser Handheld 3D Scanner

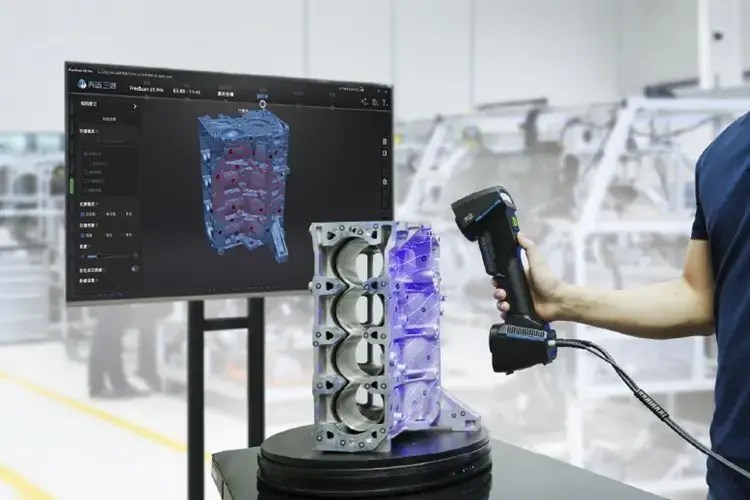

Shining 3D-handled-Portable-3D-Scanner.webp
