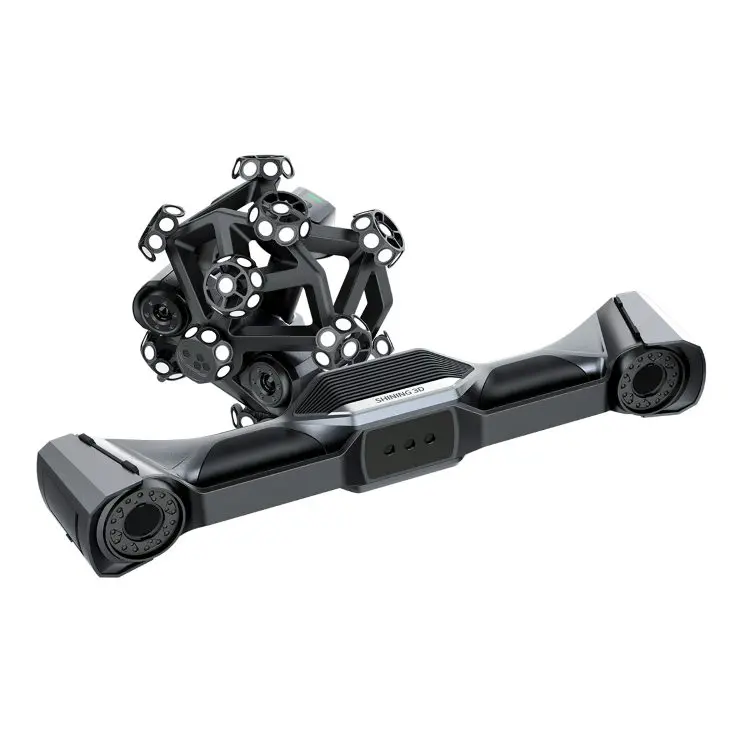

Shining3D FreeScan Trak Nova Dynamic Tracking System

Référence: SHIN-C010198

https://www.analis.com/web/image/product.template/138770/image_1920?unique=7749db6
Dynamic Tracking 3D Scanner for Large-Scale Measurement

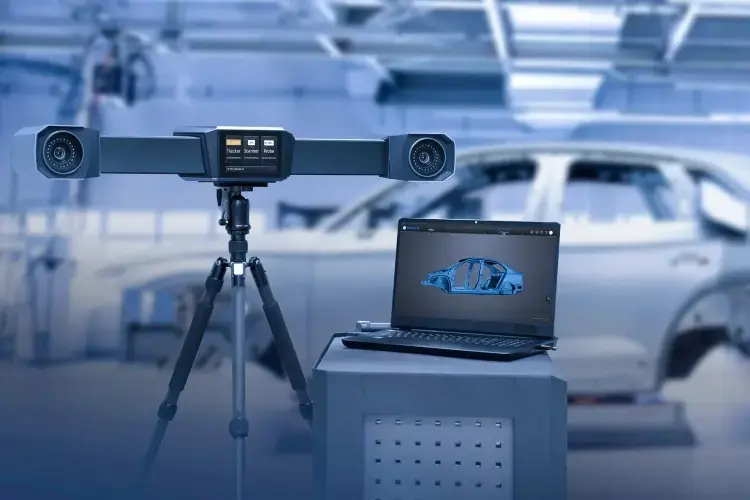

The Shining3D FreeScan Trak Nova is a dynamic tracking 3D scanning system integrating optical tracking, handheld scanning, and video photogrammetry (VPG) for accurate large-volume inspection.

Key Advantages for Large-Volume 3D Inspection

  • Markerless dynamic tracking for faster setup

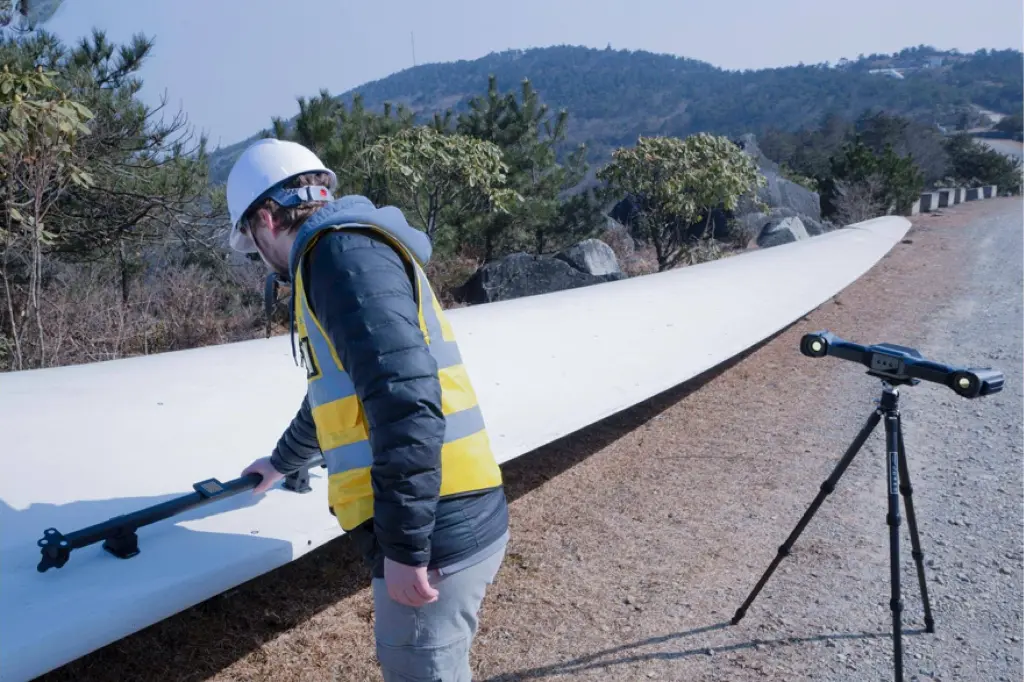

  • Integrated VPG for consistent volumetric accuracy
  • All-in-one system: tracking + scanning + photogrammetry

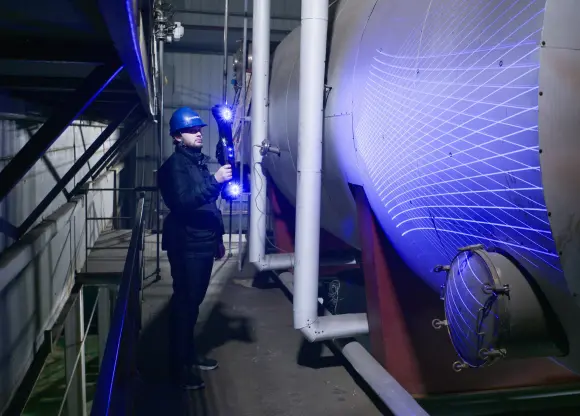

  • Wireless and portable for on-site measurement

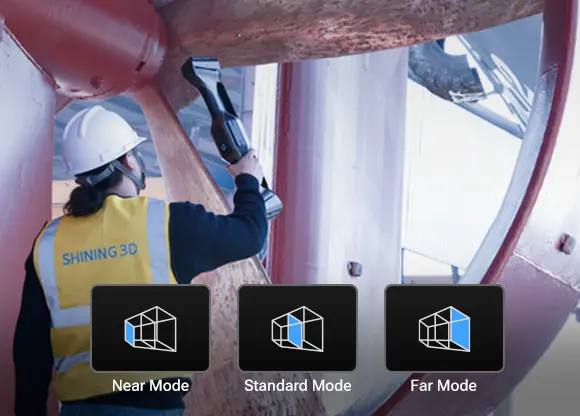

  • Large FOV combined with fine detail acquisition

Applications: Large Parts & Industrial Environments

  • Aerospace, rail, and energy components
  • Large assembly inspection and alignment
  • Shopfloor and production line quality control

Built for High Productivity Measurement Workflows

Combines wide-area scanning and local high-detail capture into a single dataset, reducing measurement time and improving efficiency.

Ask Analis local experts for a demo in the Benelux.

    This combination does not exist.

    Documents connexes

    NOM DU DOCUMENT

    DATE DE SORTIE

    TÉLÉCHARGER

    Shining3D FreeScan Trak Nova brochure
    28 / 04 / 2026
    Download icon Télécharger
