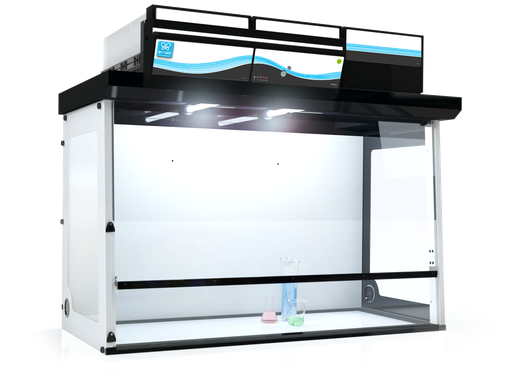

The Erlab captair Smart 633 is a ductless filtration fume hood designed to protect the user by filtering hazardous vapors produced by your samples. It is quiet, easy to use and fully customizable to your exact needs and laboratory application.
Features:
- Reverso type opening
- Cut costs of installation, maintenance and operation with a ductless fume hood
- With Erlab’s unrivalled SMART technology you can work with complete confidence that you are fully protected from the hazardous fumes and particles produced from your laboratory applications
- Simple communication by clear sound and light pulses indicate varied information including faults, run time, air face velocity, filter saturation, ventilation settings, fan failure, etc.
- Overall dimensions (WxD) 1604x749 mm. Height is dependent on filter configuration and can be 1340-1515 mm.
- Corrosion resistant, electro-galvanized steel coated with an anti-acid polymer
- The eGuard App is available for remote control monitoring of the hood, changing the settings, and delivering safety alerts immediately to your devices (mobile phone, tablet and PC)
- One filtering column that can be configured to handle liquids, powders or both
- Continuous monitoring of air face velocity
- 160W
Options:
- Three different work surface options with built in spill tray (Trespa/phenolic resin, 304L stainless steel or tempered glass)
- Can be supplied with a fixed bench or you have the option to use your own bench
- The Molecode detection sensor can be supplied in three types (acid, solvents and formaldehyde)
- By providing us with your chemical handlings, we can calculate what type of activated carbon or HEPA filters you require and initiate a filter rotation schedule to ensure full protection for years to come
- Safety filter in case of main filter saturation
- Available with a number of tap options (nitrogen, hot water, cold water, vacuum, natural gas, compressed air, distilled water, un-ionized water, methane, etc.)
- Transparent back panel
- Internal 240V electrical socket
- Waste port
- Sink (30x15 cm), location to be indicated by customer
- Analis exclusive warranty and service contract available to include annual visits and replacement filters
Power supply:
- Standard 230V
Safety Standards
- AFNOR NF X 15-211:2009: France - BS 7989: England, DIN 12 927:Germany - EN 1822:1998 (HEPA H14 & ULPA U17 Filters) - CE Marking

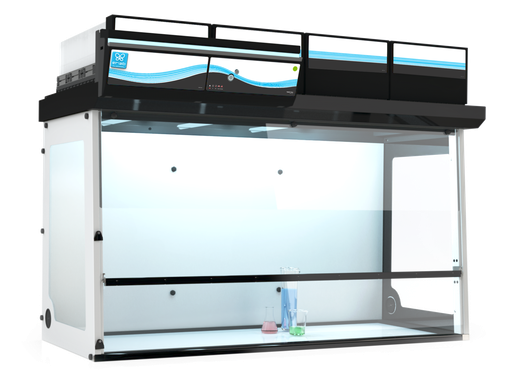

The Erlab captair Smart 714 is a ductless filtration fume hood designed to protect the user by filtering hazardous vapors produced by your samples. It is quiet, easy to use and fully customizable to your exact needs and laboratory application.
Features:
- Reverso type opening
- Cut costs of installation, maintenance and operation with a ductless fume hood
- With Erlab’s unrivalled SMART technology you can work with complete confidence that you are fully protected from the hazardous fumes and particles produced from your laboratory applications
- Simple communication by clear sound and light pulses indicate varied information including faults, run time, air face velocity, filter saturation, ventilation settings, fan failure, etc.
- Overall dimensions (WxD) 1805x749 mm. Height is dependent on filter configuration and can be 1340-1515 mm.
- Corrosion resistant, electro-galvanized steel coated with an anti-acid polymer
- The eGuard App is available for remote control monitoring of the hood, changing the settings, and delivering safety alerts immediately to your devices (mobile phone, tablet and PC)
- One filtering column that can be configured to handle liquids, powders or both
- Continuous monitoring of air face velocity
- 220W
Options:
- Three different work surface options with built in spill tray (Trespa/phenolic resin, 304L stainless steel or tempered glass)
- Can be supplied with a fixed bench or you have the option to use your own bench
- The Molecode detection sensor can be supplied in three types (acid, solvents and formaldehyde)
- By providing us with your chemical handlings, we can calculate what type of activated carbon or HEPA filters you require and initiate a filter rotation schedule to ensure full protection for years to come
- Safety filter in case of main filter saturation
- Available with a number of tap options (nitrogen, hot water, cold water, vacuum, natural gas, compressed air, distilled water, un-ionized water, methane, etc.)
- Transparent back panel
- Internal 240V electrical socket
- Waste port
- Sink (30x15 cm), location to be indicated by customer
- Analis exclusive warranty and service contract available to include annual visits and replacement filters
Power supply:
- Standard 230V
Safety Standards
- AFNOR NF X 15-211:2009: France - BS 7989: England, DIN 12 927:Germany - EN 1822:1998 (HEPA H14 & ULPA U17 Filters) - CE Marking

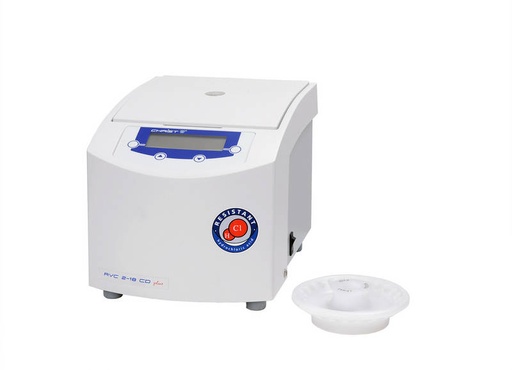

De RVC 2-18 CDplus HCl (tafelmodel) is een chemisch en HCL-bestendige versie (Hastelloy) met magnetisch aandrijfsysteem en bestendige afdichtingen, 230 V, 50/60 Hz. Het toestel heeft een geëmailleerde rotorkamer, deksel van borosilicaatglas met kijkvenster, elektrische vergrendeling en veiligheidsvoorziening. Ventiel bestand voor het ontluchten van het vacuüm.
Gebruiksvriendelijk bedieningssysteem met LC-display en voorkeuze van de tijd en de verwarmingstemperatuur tot +60°C in stappen van 1°C. Verwarmingstijd en bedrijfstijd kunnen afzonderlijk worden ingesteld.
Included in the basic price:
· Fully automatic, microprocessor control including 12
programs:
1-3 Solids
4-5 Waste destruction bags
6-7 Liquid waste
8-11 Liquid Media
12 Cleaning
·
Integrated separate steam generator (no heating
elements in sterilization chamber)
· Novel safety ring-lock closure system with lip seal
·
Temperature and steam pressure up to 140°C / 4 bar
absolute pressure
· Thermal lock: door lock controlled by pressure and
medium temperature according to Pressure Vessel Regulations
·
Flexible PT-100 temperature sensor for reference
vessel
· Medium temperature-controlled sterilization time
· Electronic pressure transducer for pressure and
temperature control
·"Autofill" - Automatic demineralized water
feed for steam generation
· Special program for waste destruction with pulsating
heat-up period for improved ventilation of waste bags
· Start by clock / timer for programmed start time
· Steam exhaust condensation, water cooled,
thermostatic controlled
· Common collector connection for all outlets
· Emptying valve
· Base plate for vessels, baskets etc.
· Validation port
· RS 232 interface for external data transfer
· Prepared for subsequent printer installation
· Prepared for subsequent rapid cooling installation
· Prepared for subsequent installation of vacuum system
· Prepared for subsequent drying installation
·Safety cut of at low water level
· Safety cut of at excess temperature

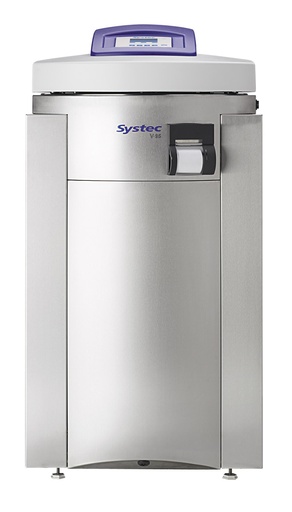

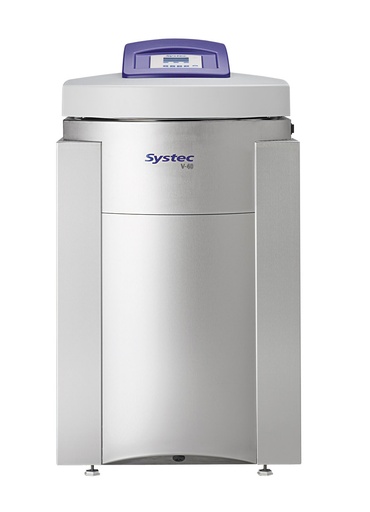

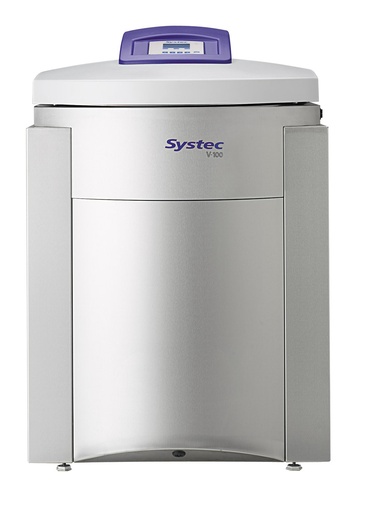

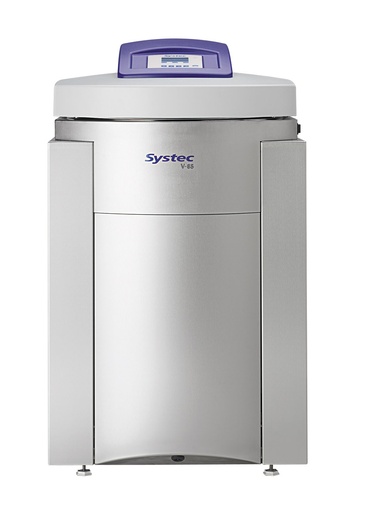

Laboratory autoclaves Systec V-series are characterized by their modern design, user-friendly functions and state-of-the-art technology.
Lid and locking system:
The innovative ring-lock closure in combination with a robust lip seal
system ensures that the autoclave lid is hermetically sealed and hence safe.
The lip seal is additionally compressed as a result of the steam pressure;
thus, additional compressed air is unnecessary. Locking takes place
automatically when the lid is closed.
The ring lock is released at the press of a button, whereby the lid opens automatically. It can also be set individually for each program to open the lid automatically after the end of the sterilization cycle. The seal is made of heat-resistant silicone and is very reliable. A heat-resistant plastic cover protects the user from contact and possibly injury by hot components.
Systec V-series autoclaves are fitted ex-factory with a temperature-controlled door lock according to Pressure Vessel Regulations for the sterilization of liquids and according to ISO/DIN regulations. In addition, the doors remain locked as long as there is excess pressure in the chamber.
Control mechanisms:
A specially developed microprocessor regulates all the functions of the
autoclave. These include steam pressure, temperature, sterilization time as
well as the optional functions of rapid cooling, pre- and post-vacuum and
drying. In cases of deviation from the set values, a corresponding alarm is
displayed.
Control is by menu and easy to operate. All sterilization parameters can be altered by using special numerical codes. The control panel is ergonomically integrated into the plastic lid cover of the autoclave.
Steam generator:
Steam generation takes place in a vessel that is completely separated
from the sterilization chamber (i.e. no heating elements in the chamber
itself). The steam generator is built-in into the autoclave housing. As the
generator is separated from the chamber, it needs not be cooled during the
cool-down-phase.
Advantages:
- More rapid cooling.
- Less cooling water required.
- Steam is immediately available after cooling as the steam generator is
not cooled.
The steam generator incorporates all the necessary control functions, valves and pumps for filling with de-mineralized water.
Steam exhaust
condenser:
The exhausted steam vapor generated during the course of the program is
automatically cooled and thus condensed. This exhaust condensation process
prevents the release of unpleasant odors and protects waste water piping that
may be made of plastic from overheating. The process is thermostatically regulated
via a PT 100 temperature sensor; this saves cooling water.
Pressure vessel safety
valve:
The pressure vessel of the autoclave is made of corrosion-resistant
stainless steel 316L (1.4404) and is electro-polished for ease of cleaning. Should the pressure exceed
a maximum level, a type approved safety valve is activated and releases the
pressure.
The fully automatic,
menu-controlled microprocessor incorporates 12 standard programs:
Individual program parameters such as
temperature and time can be set and stored for each of the programs.
Program 1-3: Fast cycle for
solids, instruments, apparatus and plastic items, with rapid steam exhaust.
Program 4-5: For waste material
in waste destruction bags. Uses pulsating heat-up phase for better ventilation
of the destruction bags.
Program 6-7: For sterilization
of liquid waste material with slow steam exhaust. (or rapid retro-cooling as an
option).
Program 8-11: For liquids with
subsequent controlled steam exhaust and self-cooling (or rapid retro-cooling as
an option).
Program 12: Cleaning program
with rapid steam exhaust.
Program variants and programs for special applications are available on request.
The programs run fully automatically. Temperature measurement is done in the sterilization chamber or in a reference vessel (on liquid sterilization) via a flexible temperature sensor and by a second fixed sensor at the coldest spot in the condensate exhaust. Both temperature sensors need to measure the required temperature during the sterilization phase. A lower temperature will cause a failure message.
The control mechanism consists of combined temperature and pressure regulation which allows the set steam pressure to be exceeded by up to 0.3 bar during the heat-up phase without allowing the product temperature to be exceeded. This means that the heat-up phase can be shortened by ca. 50 % compared with simple temperature regulation. The sterilization temperature can be freely selected from 60 to 140°C and the sterilization time from 1 to 9999 minutes.
The product- respectively the chamber temperature and the pressure within the chamber are permanently displayed during the entire program.
Validation,
documentation:
For validation with external temperature sensors, a 1/2" validation
port is fitted. Various other options are also available for documentation
purposes – from printer to PC software via interface RS 232 or separate data
logger systems for GMP-conform documentation.
Options:
Further options include various rapid cooling systems both with and
without support pressure, vacuum systems, drying processes, ventilation within
the chamber, steam-air mixtures, hot water spraying or sub-aqua systems,
lifting devices for the items to be sterilized, exhaust air filtration for
infective microorganisms, prolonged temperature maintenance phases for the
sterilization of extremely resistant microorganism or for material stress
testing in industrial applications. Additional special programs can be compiled
and tested according to customer specifications.
All the above options can also be retrospectively fitted to current Systec Autoclaves. The basic version includes all the connections necessary for any of the options.

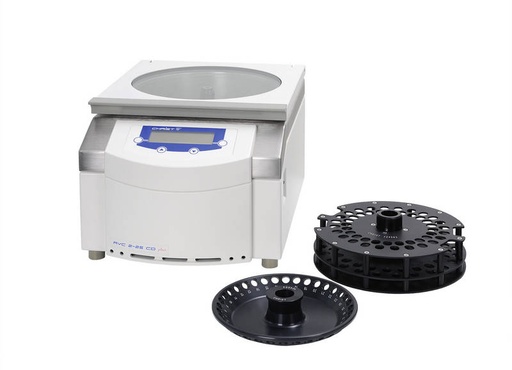

Roterende vacuümconcentrator RVC 2-25 CDplus, 230 V, 50/60 Hz (tafelmodel) met roestvrijstalen rotorkamer, magnetisch aandrijfsysteem, deksel met kijkvenster, elektrische vergrendeling en veiligheidsvoorziening. Gebruiksvriendelijk bedieningssysteem met LC-display.
Speciaal voltage, zie artikelnummer 120100.
• Fully automatic, microprocessor control including 12 programs:
1-3 Solids
4-5 Waste destruction bags
6-7 Liquid waste
8-11 Liquid Media
12 Cleaning
• Integrated separate steam generator (no heating elements in sterilization chamber)
• Novel safety ring-lock closure system with lip seal
• Temperature and steam pressure up to 140°C / 4 bar absolute pressure, extendable to 150°C / 5 bar absolute pressure
• Thermal lock: door lock controlled by pressure and medium temperature according to Pressure Vessel Regulations
• Flexible PT-100 temperature sensor for reference vessel
• Medium temperature-controlled sterilization time
• Electronic pressure transducer for pressure and temperature control
• "Autofill" - Automatic demineralized water feed for steam generation
• Special program for waste destruction with pulsating heat-up period for improved ventilation of waste bags
• Start by clock / timer for programmed start time
• Steam exhaust condensation, water cooled, thermostatic controlled
• Common collector connection for all outlets
• Emptying valve
• Base plate for vessels, baskets etc.
• Validation port
• RS 232 interface for external data transfer
• Prepared for subsequent printer installation
• Prepared for subsequent rapid cooling installation
• Prepared for subsequent installation of vacuum system
• Prepared for subsequent drying installation
• Safety cut of at low water level
• Safety cut of at excess temperature
De BioCompact II RR310 is een betrouwbare en compacte laboratoriumkoelkast om biomaterialen optimaal op te slaan. Met een temperatuurbereik van +2°C tot +20 °C is ze ideaal voor gebruik in laboratoria waar consistente en stabiele omstandigheden essentieel zijn. Het innovatieve koelsysteem zorgt voor een gelijkmatige temperatuurverdeling, waardoor deze koelkast perfect is voor kleine ruimtes.
Belangrijkste Kenmerken:
- Geavanceerde luchtverdeling: zorgt voor consistente koeling zonder koude zones.
- Energiezuinig: minimaal energieverbruik met behoud van prestaties.
- Compact: past makkelijk in kleinere labruimtes.
- Handig interieur: verstelbare planken, lades en draadmanden voor opslag op maat.
- Milieuvriendelijk: gebruikt R600a koelmiddel.
De BioCompact II RF310 is een krachtige vriezer voor de veilige opslag van gevoelige biomaterialen bij temperaturen van -25 °C tot -5 °C. De geavanceerde koeltechnologie garandeert een stabiele en betrouwbare temperatuurregeling, ideaal voor labomgevingen.
Belangrijkste Kenmerken:
- Efficiënt koelsysteem: zorgt voor een gelijkmatige koeling en handhaaft ultralage temperaturen.
- Duurzame constructie: gebouwd met hoogwaardige materialen voor langdurige prestaties.
- Compact en veelzijdig: ontworpen voor gebruik in kleine ruimtes met aanpasbare indelingsopties.
- Energiebesparend: efficiënt en minimaal energieverbruik.
• Fully automatic, microprocessor control including 12 programs:
1-3 Solids
4-5 Waste destruction bags
6-7 Liquid waste
8-11 Liquid Media
12 Cleaning
• Integrated separate steam generator (no heating elements in sterilization chamber)
• Novel safety ring-lock closure system with lip seal
• Temperature and steam pressure up to 140°C / 4 bar absolute pressure, extendable to 150°C / 5 bar absolute pressure
• Thermal lock: door lock controlled by pressure and medium temperature according to Pressure Vessel Regulations
• Flexible PT-100 temperature sensor for reference vessel
• Medium temperature-controlled sterilization time
• Electronic pressure transducer for pressure and temperature control
• "Autofill" - Automatic demineralized water feed for steam generation
• Special program for waste destruction with pulsating heat-up period for improved ventilation of waste bags
• Start by clock / timer for programmed start time
• Steam exhaust condensation, water cooled, thermostatic controlled
• Common collector connection for all outlets
• Emptying valve
• Base plate for vessels, baskets etc.
• Validation port
• RS 232 interface for external data transfer
• Prepared for subsequent printer installation
• Prepared for subsequent rapid cooling installation
• Prepared for subsequent installation of vacuum system
• Prepared for subsequent drying installation
• Safety cut of at low water level
• Safety cut of at excess temperature

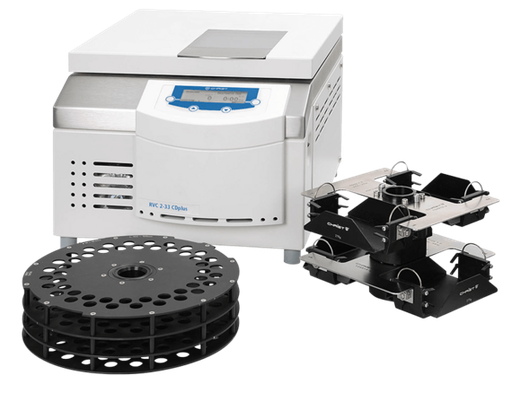

RVC 2-33 CDplus infrarood vacuümconcentrator: geavanceerde technologie voor monstervoorbereiding
De RVC 2-33 CDplus infrarood vacuümconcentrator van Martin Christ combineert geavanceerde technologie met gebruiksvriendelijke functies, waardoor het de ideale oplossing is voor laboratoria in de Benelux en daarbuiten. Of u nu werkt met DNA/RNA, eiwitten of gevoelige chemische monsters, deze concentrator levert nauwkeurige, efficiënte en reproduceerbare resultaten voor uw monsterpreparatiebehoeften.
Belangrijkste kenmerken van de RVC 2-33 CDplus
Efficiënte infraroodverwarming
Versnel de monsterverdamping met behoud van nauwkeurige controle. Het infraroodverwarmingssysteem zorgt voor een gelijkmatige warmteverdeling, voorkomt oververhitting en behoudt de integriteit van het monster.Optimale vacuümregeling
Het geavanceerde vacuümsysteem minimaliseert het opspringen van oplosmiddelen en verhoogt de droogsnelheid, vooral voor waterige en organische oplosmiddelen. Ideaal voor laboratoria met een hoge doorvoer.Compact design
Met zijn kleine voetafdruk is de RVC 2-33 CDplus perfect voor laboratoria waar werkruimte schaars is. Ondanks zijn compacte formaat kan hij grote monstervolumes efficiënt verwerken.Aanpasbare rotoren en accessoires
Het systeem kan worden aangepast aan de behoeften van uw lab met een reeks rotoren en adapters voor microbuisjes, microplaten en andere monsters.Gebruiksvriendelijke interface
Het intuïtieve bedieningspaneel maakt het eenvoudig om uw processen te programmeren en te bewaken. Stel parameters zoals temperatuur, vacuümniveau en looptijd met vertrouwen in.
Toepassingen
De RVC 2-33 CDplus blinkt uit in een verscheidenheid aan toepassingen, waaronder:
- Genomisch en proteomisch onderzoek
- Monsterconcentratie voor analytische technieken (bijv. HPLC, GC-MS)
- Drogen van monsters met een hoog gehalte aan water of organische oplosmiddelen
Waarom kiezen voor de RVC 2-33 CDplus?
Martin Christ is een leider op het gebied van vriesdroog- en vacuümconcentratieoplossingen en biedt ongeëvenaarde kwaliteit en betrouwbaarheid. Door te investeren in de RVC 2-33 CDplus kiest u voor een systeem dat:
- De efficiëntie van de labworkflow verbetert
- Downtime en onderhoud vermindert
- Zorgt voor consistente resultaten van hoge kwaliteit
Verkrijgbaar in België
Via Analis, de officiële distributeur van Martin Christ in België, kunt u terecht voor deskundige ondersteuning, snelle levering en technisch advies voor de RVC 2-33 CDplus en andere laboratoriumapparatuur.
Bestel vandaag nog uw RVC 2-33 CDplus
Verbeter de efficiëntie en precisie van uw laboratorium met de RVC 2-33 CDplus infrarood vacuümconcentrator. Neem contact op met Analis voor een offerte of voor meer informatie over hoe deze geavanceerde concentrator aan uw specifieke behoeften kan voldoen.
• Fully automatic, microprocessor control including 12 programs:
1-3 Solids
4-5 Waste destruction bags
6-7 Liquid waste
8-11 Liquid Media
12 Cleaning
• Integrated separate steam generator (no heating elements in sterilization chamber)
• Novel safety ring-lock closure system with lip seal
• Temperature and steam pressure up to 140°C / 4 bar absolute pressure, extendable to 150°C / 5 bar absolute pressure
• Thermal lock: door lock controlled by pressure and medium temperature according to Pressure Vessel Regulations
• Flexible PT-100 temperature sensor for reference vessel
• Medium temperature-controlled sterilization time
• Electronic pressure transducer for pressure and temperature control
• "Autofill" - Automatic demineralized water feed for steam generation
• Special program for waste destruction with pulsating heat-up period for improved ventilation of waste bags
• Start by clock / timer for programmed start time
• Steam exhaust condensation, water cooled, thermostatic controlled
• Common collector connection for all outlets
• Emptying valve
• Base plate for vessels, baskets etc.
• Validation port
• RS 232 interface for external data transfer
• Prepared for subsequent printer installation
• Prepared for subsequent rapid cooling installation
• Prepared for subsequent installation of vacuum system
• Prepared for subsequent drying installation
• Safety cut of at low water level
• Safety cut of at excess temperature
Laboratoriumvriesdroger
Compacte tafelmodel voor het efficiënt drogen van grotere hoeveelheden monsters.

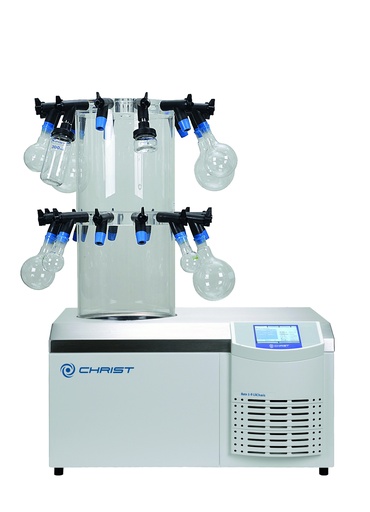

Het basistoestel Beta 1-8 LSCbasic is een compact tafelmodel voor het effectief drogen van relatief grote hoeveelheden monsters. De LDplus-gebruikersinterface maakt het werk zeer eenvoudig. U kunt kiezen uit een breed scala aan configuraties om de vriesdroger optimaal aan te passen aan uw specifieke behoeften. Condensortemperatuur van –55 °C voor het drogen van waterige producten.
Kenmerken
- Omzetting van producttemperatuur en vacuüm volgens de dampdrukcurve boven ijs
- Touchscreen
Uitgerust met natuurlijke koelmiddelen*
Als toonaangevende fabrikant van vriesdroogsystemen gebruikt Martin Christ natuurlijke koelmiddelen om duurzame en milieuvriendelijke vriesdroogoplossingen te bieden. Deze innovaties helpen de impact op het milieu te verminderen en een groenere toekomst op te bouwen.
In 2009 was Martin Christ een van de eerste fabrikanten die laboratorium- en proefvriesdrogers ombouwde naar niet-brandbare koelmiddelen. Daardoor hebben hun vriesdrogers een bijzonder lage Global Warming Potential (GWP)-index.
* 50 Hz-versie, onder voorbehoud van technische wijzigingen
.
