  1. Métrologie Scan laser 3D
  2. Shining3D FreeScan Omni Standalone 3D Scanner
Share
SHINING3D

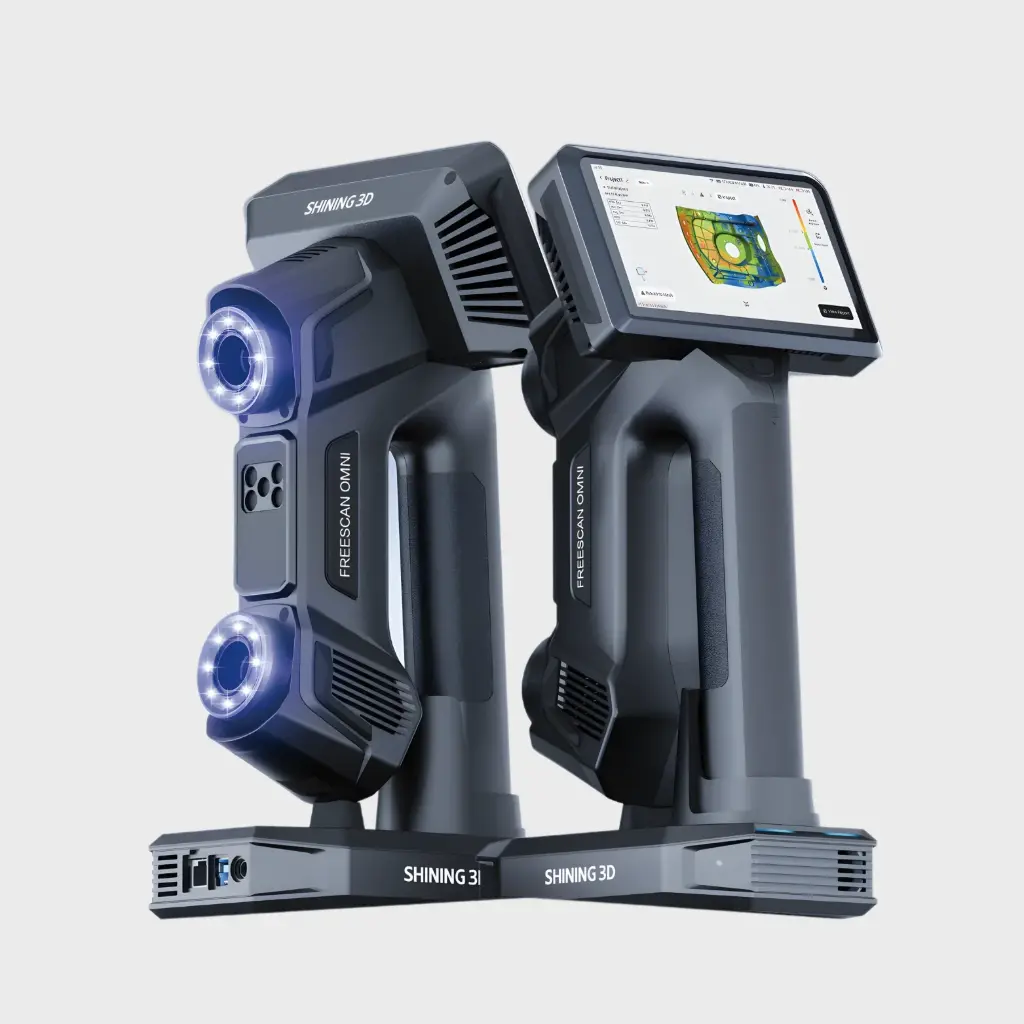

Shining3D FreeScan Omni Standalone 3D Scanner

Référence: SHIN-BD.202511.051

https://www.analis.com/web/image/product.template/138771/image_1920?unique=9370778
Standalone 3D Scanner with Integrated Inspection Workflow
The Shining3D FreeScan Omni is a standalone 3D scanner designed for on-device inspection, enabling a complete workflow from scanning to reporting without external hardware.

Key Advantages for Autonomous 3D Inspection

  • On-scanner scan-to-inspect workflow
  • PTB-certified inspection module for traceable results
  • Fully wireless operation (no cables or external PC)

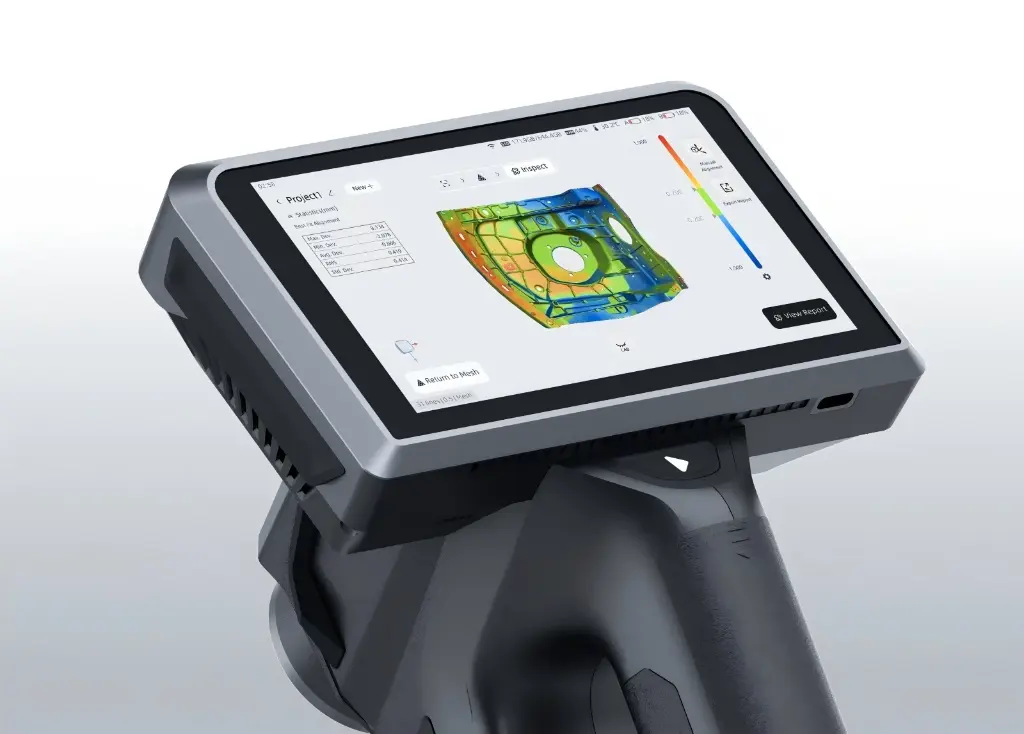

  • Real-time processing and reporting on-device
  • Multiple scan modes including high-speed laser and IR

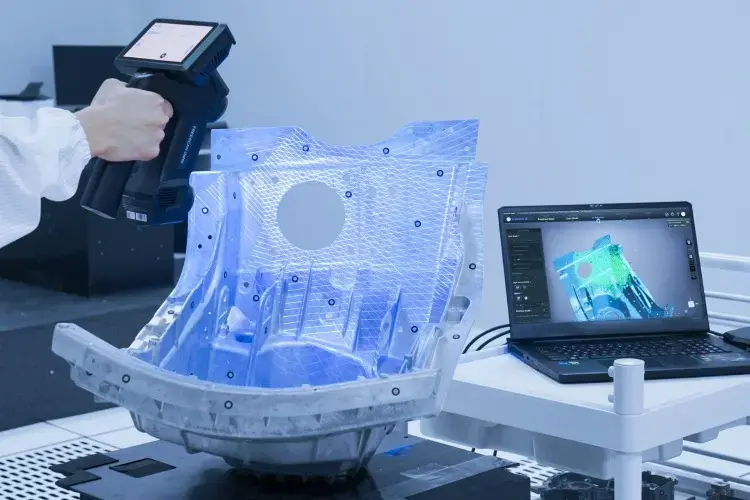

Applications: Shopfloor & Field Inspection

  • Production floor quality control
  • On-site inspection and maintenance
  • Mobile reverse engineering

Built for Fast and Reliable Decision-Making

From data acquisition to reporting, everything is performed directly on the scanner, improving speed, consistency, and operator efficiency.

Ask Analis local experts for a demo in the Benelux.

    This combination does not exist.

    Documents connexes

    NOM DU DOCUMENT

    DATE DE SORTIE

    TÉLÉCHARGER

    Shining3D FreeScan Omni brochure
    28 / 04 / 2026
    Download icon Télécharger
