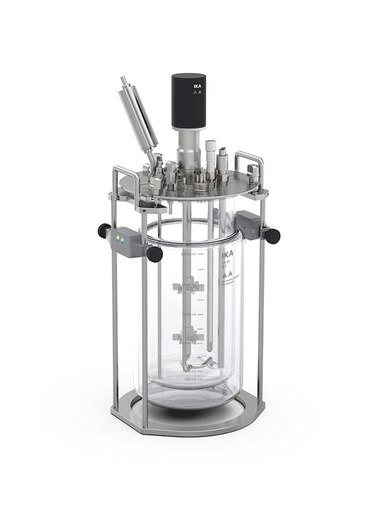

Het 5 l-vatenpakket voor de HABITAT-researchbioreactor bevat een 5 l dubbelwandig glazen recipiënt voor fermentatietoepassingen en de bijbehorende roeraandrijving. Samen met het apart verkrijgbare controletorenpakket (bv. HABITAT ferment) ontvangt u alle benodigde componenten voor een succesvolle kweek. Voor temperatuurregeling via de dubbele mantel raden we een van onze circulatiepompen aan, zoals de HRC 2 basic of control.

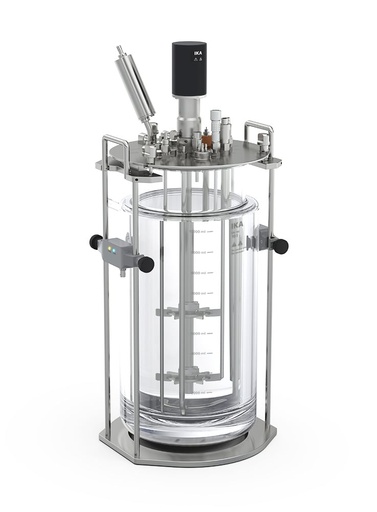

Het 10 l-vatenpakket voor de HABITAT-researchbioreactor bevat een 10 l dubbelwandig glazen recipiënt voor fermentatietoepassingen en de bijbehorende roeraandrijving. Samen met het apart verkrijgbare controletorenpakket (bv. HABITAT ferment) ontvangt u alle benodigde componenten voor een succesvolle kweek. Voor temperatuurregeling via de dubbele mantel raden we een van onze circulatiepompen aan, zoals de HRC 2 basic of control.

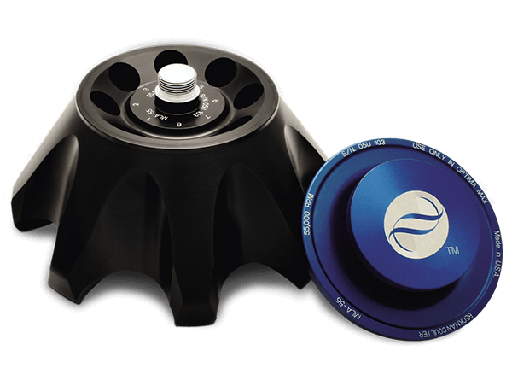

The MLA-55 fixed angle rotor, rated for 55 000 rpm, has a tube angle of 35 degrees from the axis of rotation. The rotor can centrifuge up to eight tubes and is used in Beckman Coulter Optima MAX, MAX-XP, and MAX-E tabletop ultracentrifuges.
The rotor, lid, and handle are made of aluminium and anodized to resist corrosion. A rotor retention mechanism on the ultracentrifuge drive hub secures the rotor during the run. Lubricated O-rings made of Buna-N rubber in the rotor lid and handle maintain atmospheric pressure inside the rotor during centrifugation. The tube cavities are numbered to aid in sample identification.
The ultracentrifuge identifies rotor speed during the run by means of a magnetic speed sensor in the instrument chamber and magnets on the bottom of the rotor. This overspeed protection system ensures that the rotor does not exceed its maximum permitted speed.
Major Applications: Subcellular isolations.
For use in the Optima MAX-XP Benchtop Ultracentrifuges and Optima MAX Micro Ultracentrifuges.
Adapter for 2 x 500/750 ml blood bag systems, two compartments with 1,100 ml nominal capacity each, incl. 2 balancing weights no. 17768, 1 set = 2 pcs.

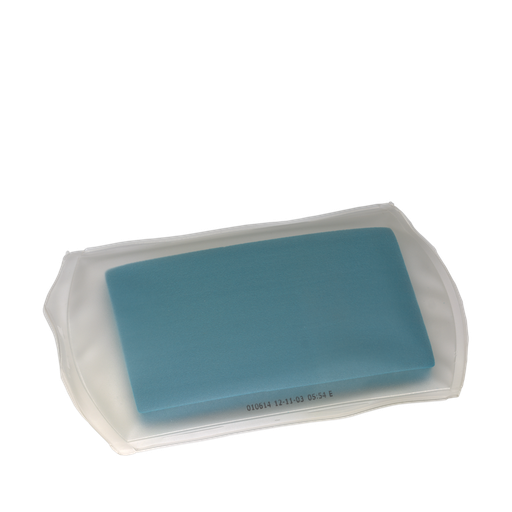

Adapter for smaller blood bags or for reduced filling,
1 set = 2 pcs.
Maak van uw Cytonote een realtime-beeldvormingsapparaat in uw incubator en sluit tot 6 Cytonote-lezers aan op één HORUS-software.
Overzicht
Belangrijkste kenmerken
Hoge gevoeligheid voor fluorescentie
- 6,4 MP BSI CMOS-sensor voor maximale fotosensitiviteit
- Geoptimaliseerd voor NIR-kleurstoffen en observatie van eiwitexpressie
- Heldere, gedetailleerde beelden bij korte belichtingstijden en zeer lage ruis voor betrouwbare fluorescentiedocumentatie
Compact & gebruiksvriendelijk
- Passieve koeling, waardoor de camera licht, stil en onderhoudsarm blijft
- Eenvoudige installatie via één enkele USB-kabel (data + voeding)
- Compatibel met elke microscoop met een standaard C-mount-adapter
Snelle beeldregistratie & intuïtieve workflow
- Vlotte beeldacquisitie voor routinefluorescentie
- Volledige integratie met cellSens-software voor snel en eenvoudig beeldbeheer
- Optioneel cellSens Count & Measure voor automatische cel¬telling en morfologische analyse
Voordelen voor uw laboratorium
- Uitstekend geschikt voor routinelabs, onderwijs, QC-omgevingen en R&D-afdelingen
- Sterke prijs-prestatieverhouding binnen het Evident-ecosysteem
- Naadloze compatibiliteit met de Olympus / Evident beeldvormingssoftware
Vraag een demo aan
Vraag Analis om een demo of een camera-opstelling op maat.

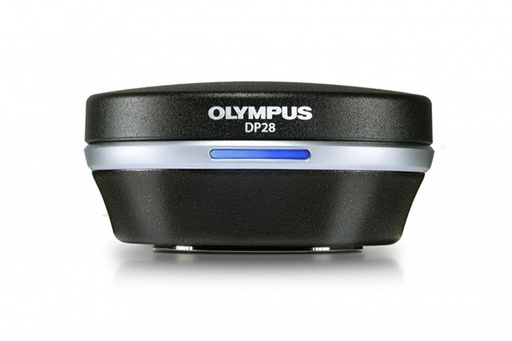

Krachtige 4K digitale camera voor microscopische beeldvorming en documentering.
De Olympus / Evident DP28 garandeert gedetailleerde beelden voor klinisch, educatief en onderzoeksgebruik.
- 4K resolutie met levensechte kleurprecisie
- Breed gezichtsveld voor overzicht en het vastleggen van details
- 8,9 MP CMOS-sensor voor scherpe beelden met hoge resolutie
- Gestroomlijnde integratie met de Olympus microscoopsystemen
- Ideaal voor vergaderen, lesgeven en samenwerken
Breng 4K-kwaliteit in uw werkproces.
Analis zorgt voor integratie en ondersteuning.

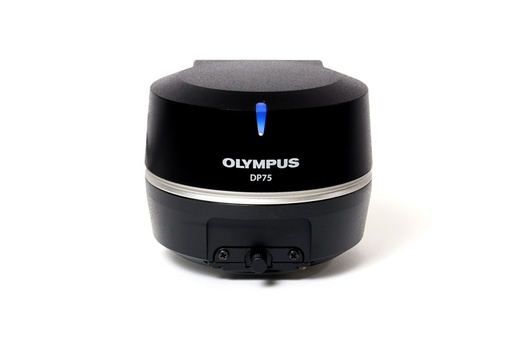

Veelzijdige kleurencamera voor helderveld- en fluorescentiebeelden in één apparaat.
De Olympus / Evident DP75 ondersteunt beeldvorming met hoge resolutie en complexe kleuringstoepassingen.
- Ondersteunt golflengten tot 1000 nm met instelbaar IR-filter.
- TruAI denoising verbetert de live beeldkwaliteit
- Levendige kleurenreproductie met uitstekende gevoeligheid
- Gestroomlijnde opnames van helderveld- en fluorescentiebeelden
- Ideaal voor onderzoekslaboratoria die multi-modale beeldvorming nodig hebben
Optimaliseer beeldvorming met één slimme camera.
Vraag Analis om deskundige ondersteuning.

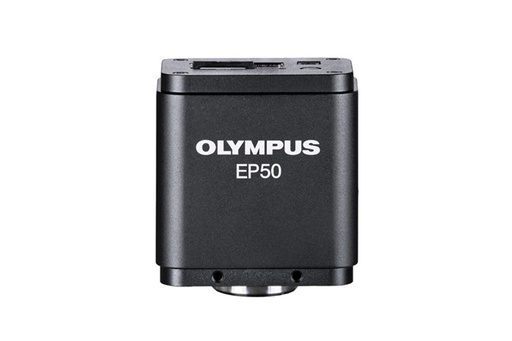

Slimme digitale camera die elke microscoop verandert in een draadloos leerinstrument.
De Olympus / Evident EP50 maakt gezamenlijk bekijken en digitaal streamen van microscoop naar scherm mogelijk.
-
Volledige standalone-configuratie via tablet of pc
- Simultane WLAN- en HDMI-uitgang
- Ondersteunt draadloos delen naar monitors of projectors
- Ontworpen voor onderwijs, leren in groepen en live-demonstraties
- Eenvoudige integratie met Olympus-microscoopsystemen
Versterk lesruimten en trainingen met connected microscopie.
Verkrijgbaar via Analis.

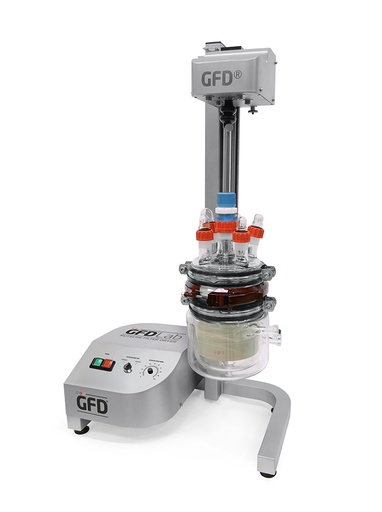

De glasfilterdroger (GFD) is een innovatief lab- en pilotplantapparaat. Het is een miniatuurversie van een productiefilterdroger waarmee je makkelijk op labschaal kunt filteren en drogen met dezelfde betrouwbaarheid en voordelen als de grote PSL-filterdrogers. Dankzij de verschillende beschikbare maten is er voor elk lab een geschikte GFD. Het toestel werkt onder vacuüm en druk, heeft een verwarmde mantel voor het drogen en een verwijderbare filterkorf om het product op te vangen. De GFD-technologie vervangt de oude laboratoriumfiltratie- en droogmethoden zoals Buchner-filtratie en drogen op bakken.
Advanced Helipath Testing when it is used with a suitable AMETEK Brookfield Viscometer/Rheometer fitted with a unique T-bar type spindle, the HPQA will permit viscosity/consistency measurements in relative centipoise values for materials having characteristics similar to paste, putty, cream, gelatin, or wax. The helical test action also allows measurement of paints, dyes, lithographic inks, and many other thixotropic substances, demonstrating a viscosity drop as the material is sheared.
HPQA slowly lowers or raises the AMETEK Brookfield Viscometer/Rheometer so that its rotating T-bar spindle will describe a helical path through the test sample. The problem of channeling or separating is eliminated by constantly cutting into fresh material for meaningful viscosity/consistency measurements.
Quick Action Operations:
Motorized capabilities bring the HPQA to the next level. The control system with the integrated interface, joystick, and motor simplifies and expands laboratory and testing capabilities, making it the modern choice.
The HPQA features a variable-speed motor, allowing high-speed travel up with the integrated joystick to 40mm/s. Users can set up standard viscosity tests quickly and accurately with traditional spindles. Eliminating manual adjustment efforts, the touchscreen interface allows the user to create programmable height locations to perform repetitive testing quickly and efficiently. The one-touch Home button allows the stand to automatically drive to the top (Home) position for easy spindle cleanup and sample change.
Programmable height locations, one touch movements, DVPlus Integrations, and a user-friendly interface allow users to more efficiently and repeatably set up and execute tests.
FEATURES & BENEFITS
- Designed for viscosity/consistency measurement of materials that are sometimes difficult to measure, such as gels, pastes, creams, putty, gelatin, and other non-flowing substances
- Variable, high-speed travel up to 40 mm/s with joystick: Ideal for Quick Action operations and standard viscosity tests
- Touchscreen interface with physical joystick for easy programming and precise control
- Home and programmable test positions allow quick one-touch stand movements for easy cleaning and preparation for the next test
- Excellent choice for end-of-line quality tests to be sure product is consistent
- Simple to set up and clean
- Available with Magnetic Spindle Coupling Option, allowing spindles to be quickly attached and removed while preventing damage during frequent spindle changes
- Compatible with all AMETEK Brookfield Viscometers and DVNext Rheometers
- Integrates directly with DVPlus for seamless operation and automated movements.
Included:
- HPQA Drive Assembly and Lab Stand Extrusion
- Coupling
- Base
- Spindle Case
- Six T-bar Spindles (magnetic, threaded or none), please specify when ordering.
MAGNETIC SPINDLE COUPLING OPTION**
The HPQA is available to purchase with a Magnetic Spindle Coupling Option. This option allows spindles to be quickly attached and removed and may also help prevent damage from frequent spindle changes or multiple users. A special coupling adapter can allow the use of magnetic spindles.
**Note: The Magnetic Spindle Coupling Option must be purchased with all Viscometers/Rheometers with a magnetic spindle coupling.
