The Biomek i7 Automated Workstation has been designed to optimize dependability and walk-away time in mid- to high-throughput labs. The Biomek i7 Hybrid with enclosure has up to 45 deck positions and includes both Multichannel and Span-8 pipette heads in an enclosed work space.

B87585 configuration of the system includes:
accuframe tool, side and rear safety shields, front safety light curtain, Enclosure, Automation Controller, Biomek Software, 8 x 1mL Syringes, 8 x Disposable Mandrels, Passive Wash Station
Comes with a single box of p/n B85775 T80 conductive tips

Request more information

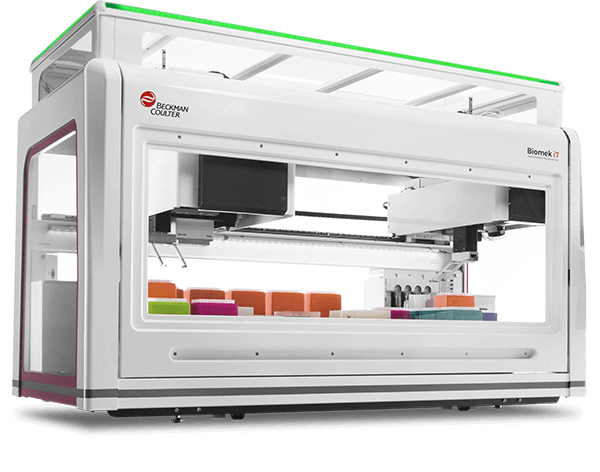

Biomek i7 Hybrid (MC + Spn-8) with enclosure

Technical information

Minimum Table Support Requirements	116x63cm(46x25in)
Platform	Biomek i-Series
Pod and Tool Type	1μL - 300 μL 96-Channel head; 5 μL -1200 μL 96-Channel Head; 0.5 μL - 60 μL Multichannel-384 Head; Span-8 Pod
Environmental Conditions	Up to 2000 m
Installation Category	II
Power Requirements	100-240 VAC, 50/60 Hz, 10 A
Operating System	Windows® 10
Software	Biomek software, SAMI EX scheduling software, Biomek PowerPack software, Biomek Method Launcher, DART 2.0 software
Display	22" controller screen
Operating Mode(s)	Semi-automated, manual, controlled by operator
Autoclavable	No
Material(s)	ABS Cover, Acrylic Panels, Aluminum Chassis
Finish	High-gloss paint, Hardcoat anodized coating
Weight	260 kg(573.2 lb)
Width	170 cm(66.9 in)
Depth	81 cm(31.9 in)
Height	112 cm(44.1 in)
Package Quantity	1
Temperature Range	10° C - 30°C
Humidity Restrictions	20%–85% (non-condensing) at 30°C
