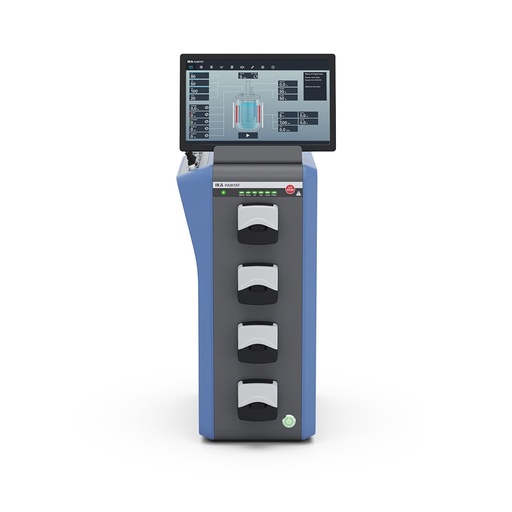

The HABITAT cell control tower package is particularly suitable for HABITAT’s cell culture applications and is used to monitor and control the bioprocess.
It includes the control unit with all connection options for gas supply, liquid addition, sensors and temperature control as well as a tablet for easy and clear operation of the bioreactor.
Control and monitoring
The bioprocess and all associated test parameters can be easily controlled and monitored via the tablet attached to the control unit and with the help of the intuitive and easy-to-use software. Depending on the type of cultivation, you can choose between the operating modes batch, fed-batch and perfusion/continuous. The new Chaotic Mixing function ensures faster and more effective mixing when required. The 10.4-inch tablet allows direct access to all actuators directly on the main screen. A clear calibration management, a diagram overview and the complete documentation of the process round off the operation. A software version that meets FDA CFR Part 11 requirements is available as an option.
Gas supply
Built in mass flow controllers for 4 separate gas lines (for N2, O2, air and CO2) ensure precise, individually adjustable gassing, ideally tailored to the needs of your cells.
Flow rates of 0.01 - 2 l/min can be achieved.
Liquid supply
4 integrated Watson Marlow pumps, adjustable in direction and speed, give you the variability to pump in and pump out different liquids (like acid, base, anti-foam agent, feeding solutions).
Sensors
HABITAT cell enables the measurement of the following parameters by means of sensors:
• pH
• DO (dissolved oxygen)
• temperature
• filling level
• foam
Temperature control
The constant and precise temperature control during the cultivation is guaranteed by the heating sleeve, which is adapted to the respective vessel size. (Heating sleeve is included with the HABITAT cell vessel package).
* may be combined with double-walled vessel packages

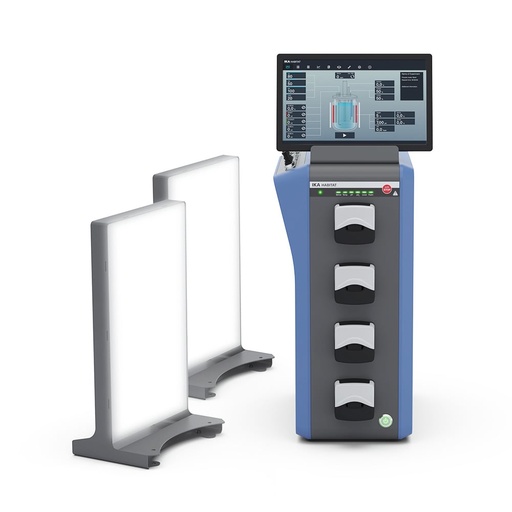

The HABITAT photo cell control unit package of the HABITAT research bioreactor is used to monitor and control the bioprocess. With the help of the LED panels included in the scope of delivery, the system can be used as a photobioreactor, for example for algae cultivation. The adjustment of the light intensity enables the simulation of the day-night rhythm. Furthermore,, the package includes the control unit with all connection options for the gas supply, liquid addition, sensors and temperature control as well as a tablet for simple and clear operation of the bioreactor.
Control and monitoring
The bioprocess and all associated test parameters can be easily controlled and monitored via the tablet attached to the control unit and with the help of the intuitive and easy-to-use software. Depending on the type of cultivation, you can choose between the operating modes batch, fed-batch and perfusion/continuous. The new Chaotic Mixing function ensures faster and more effective mixing when required. The 10.4-inch tablet allows direct access to all actuators directly on the main screen. A clear calibration management, a diagram overview and the complete documentation of the process round off the operation. A software version that meets FDA CFR Part 11 requirements is available as an option.
Gas supply
Built in mass flow controllers for 4 separate gas lines (for N2, O2, air and CO2) ensure precise, individually adjustable gassing, ideally tailored to the needs of your cells. Flow rates of 0.01-2 l/min can be achieved.
Liquid supply
4 integrated Watson Marlow pumps, adjustable in direction and speed, give you the variability to pump in and pump out different liquids (like acid, base, anti-foam agent, feeding solutions).
Sensors
HABITAT cell enables the measurement of the following parameters by means of sensors:
• pH
• DO (dissolved oxygen)
• temperature
• filling level
• foam
Temperature control
The constant and precise temperature control during the cultivation is guaranteed by the heating sleeve, which is adapted to the respective vessel size. (Heating sleeve is included with the HABITAT cell vessel package).
All features at a glance
> compact, space-saving design, dimensions: 223 x 402 x 450 mm (WxDxH)
> large tablet for clear operation (10,4 inch)
> intuitive, easy-to-use software with a lot of functionalities.
> 4 integrated fast-load pumps (Watson Marlow)
> connectivity: USB, PC, RS232, ethernet, external signal input, external pump, single-use unit, thermostat
> data storage
> gas supply with 4 built-in mass flow controllers: e.g. for O2, Luft, N2, CO2
> Status LED display: direct error display by indicator light
Note: Only a control tower package and the separately available vessel package make up a functional unit.
The HABITAT cell cct control tower package is particularly suitable for HABITAT’s cell culture applications and is used to monitor and control the bioprocess. It includes the control unit with all connection options for gas supply, liquid addition, sensors and temperature control as well as a tablet for easy and clear operation of the bioreactor. In addition to the HABITAT cell package, you have the option of connecting CO2, conductivity and turbidity sensors.
Control and monitoring
The bioprocess and all associated test parameters can be easily controlled and monitored via the tablet attached to the control unit and with the help of the intuitive and easy-to-use software. Depending on the type of cultivation, you can choose between the operating modes batch, fed-batch and perfusion/continuous. The new Chaotic Mixing function ensures faster and more effective mixing when required. The 10.4-inch tablet allows direct access to all actuators directly on the main screen. A clear calibration management, a diagram overview and the complete documentation of the process round off the operation. A software version that meets FDA CFR Part 11 requirements is available as an option.
Gas supply
Built in mass flow controllers for 4 separate gas lines (for N2, O2, air and CO2) ensure precise, individually adjustable gassing, ideally tailored to the needs of your cells. Flow rates of 0.01-2 l/min can be achieved.
Liquid supply
4 integrated Watson Marlow pumps, adjustable in direction and speed, give you the variability to pump in and pump out different liquids (like acid, base, anti-foam agent, feeding solutions).
Sensors
HABITAT cell enables the measurement of the following parameters by means of sensors:
• pH
• DO (dissolved oxygen)
• temperature
• filling level
• foam
Temperature control
The constant and precise temperature control during the cultivation is guaranteed by the heating sleeve, which is adapted to the respective vessel size. (Heating sleeve is included with the HABITAT cell vessel package).
All features at a glance
> compact, space-saving design, dimensions: 223 x 402 x 450 mm (WxDxH)
> large tablet for clear operation (10,4 inch)
> intuitive, easy-to-use software with a lot of functionalities.
> 4 integrated fast-load pumps (Watson Marlow)
> connectivity: USB, PC, RS232, ethernet, external signal input, external pump, single-use unit, thermostat
> data storage
> gas supply with 4 built-in mass flow controllers: e.g. for O2, Luft, N2, CO2
> Status LED display: direct error display by indicator light
Note: Only a control tower package and the separately available vessel package make up a functional unit.
* may be combined with double-walled vessel packages
The HABITAT photo cell cct control unit package of the HABITAT research bioreactor is used to monitor and control the bioprocess. With the help of the LED panels included in the scope of delivery, the system can be used as a photobioreactor, for example for algae cultivation. The adjustment of the light intensity enables the simulation of the day-night rhythm. Furthermore, the package includes the control unit with all connection options for the gas supply, liquid addition, sensors and temperature control as well as a tablet for simple and clear operation of the bioreactor. In addition to the HABITAT cell package, you have the option of connecting CO2, conductivity and turbidity sensors.
Control and monitoring
The bioprocess and all associated test parameters can be easily controlled and monitored via the tablet attached to the control unit and with the help of the intuitive and easy-to-use software. Depending on the type of cultivation, you can choose between the operating modes batch, fed-batch and perfusion/continuous. The new Chaotic Mixing function ensures faster and more effective mixing when required. The 10.4-inch tablet allows direct access to all actuators directly on the main screen. A clear calibration management, a diagram overview and the complete documentation of the process round off the operation. A software version that meets FDA CFR Part 11 requirements is available as an option.
Gas supply
Built in mass flow controllers for 4 separate gas lines (for N2, O2, air and CO2) ensure precise, individually adjustable gassing, ideally tailored to the needs of your cells. Flow rates of 0.01-2 l/min can be achieved.
Liquid supply
4 integrated Watson Marlow pumps, adjustable in direction and speed, give you the variability to pump in and pump out different liquids (like acid, base, anti-foam agent, feeding solutions).
Sensors
HABITAT cell enables the measurement of the following parameters by means of sensors:
• pH
• DO (dissolved oxygen)
• temperature
• filling level
• foam
Temperature control
The constant and precise temperature control during the cultivation is guaranteed by the heating sleeve, which is adapted to the respective vessel size. (Heating sleeve is included with the HABITAT cell vessel package).
All features at a glance
> compact, space-saving design, dimensions: 223 x 402 x 450 mm (WxDxH)
> large tablet for clear operation (10,4 inch)
> intuitive, easy-to-use software with a lot of functionalities.
> 4 integrated fast-load pumps (Watson Marlow)
> connectivity: USB, PC, RS232, ethernet, external signal input, external pump, single-use unit, thermostat
> data storage
> gas supply with 4 built-in mass flow controllers: e.g. for O2, Luft, N2, CO2
> Status LED display: direct error display by indicator light
Note: Only a control tower package and the separately available vessel package make up a functional unit.
The HABITAT ferment control tower package is particularly suitable for HABITAT’s fermentation applications and is used to monitor and control the bioprocess. It includes the control unit with all connection options for gas supply, liquid addition, sensors and temperature control as well as a tablet for easy and clear operation of the bioreactor.
Control and monitoring
The bioprocess and all associated test parameters can be easily controlled and monitored via the tablet attached to the control unit and with the help of the intuitive and easy-to-use software. Depending on the type of cultivation, you can choose between the operating modes batch, fed-batch and perfusion/continuous. The new Chaotic Mixing function ensures faster and more effective mixing when required. The 10.4-inch tablet allows direct access to all actuators directly on the main screen. A clear calibration management, a diagram overview and the complete documentation of the process round off the operation. A software version that meets FDA CFR Part 11 requirements is available as an option.
Gas supply
Built in mass flow controllers for 4 separate gas lines (for N2, O2, air and CO2) ensure precise, individually adjustable gassing, ideally tailored to the needs of your cells. Flow rates of 0.1-20 l/min can be achieved.
Liquid supply
4 integrated Watson Marlow pumps, adjustable in direction and speed, give you the variability to pump in and pump out different liquids (like acid, base, anti-foam agent, feeding solutions).
Sensors
HABITAT cell enables the measurement of the following parameters by means of sensors:
• pH
• DO (dissolved oxygen)
• temperature
• filling level
• foam
Temperature control
The constant and precise temperature control during the cultivation is guaranteed by the heating sleeve, which is adapted to the respective vessel size. (Heating sleeve is included with the HABITAT cell vessel package).
All features at a glance
> compact, space-saving design, dimensions: 223 x 402 x 450 mm (WxDxH)
> large tablet for clear operation (10,4 inch)
> intuitive, easy-to-use software with a lot of functionalities.
> 4 integrated fast-load pumps (Watson Marlow)
> connectivity: USB, PC, RS232, ethernet, external signal input, external pump, single-use unit, thermostat
> data storage
> gas supply with 4 built-in mass flow controllers: e.g. for O2, Luft, N2, CO2
> Status LED display: direct error display by indicator light
Note: Only a control tower package and the separately available vessel package make up a functional unit.
* may be combined with double-walled vessel packages
The HABITAT photo ferment control unit package of the HABITAT research bioreactor is used to monitor and control the bioprocess. With the help of the LED panels included in the scope of delivery, the system can be used as a photobioreactor, for example for algae cultivation. The adjustment of the light intensity enables the simulation of the day-night rhythm. Furthermore,, the package includes the control unit with all connection options for the gas supply, liquid addition, sensors and temperature control as well as a tablet for simple and clear operation of the bioreactor.
Control and monitoring
The bioprocess and all associated test parameters can be easily controlled and monitored via the tablet attached to the control unit and with the help of the intuitive and easy-to-use software. Depending on the type of cultivation, you can choose between the operating modes batch, fed-batch and perfusion/continuous. The new Chaotic Mixing function ensures faster and more effective mixing when required. The 10.4-inch tablet allows direct access to all actuators directly on the main screen. A clear calibration management, a diagram overview and the complete documentation of the process round off the operation. A software version that meets FDA CFR Part 11 requirements is available as an option.
Gas supply
Built in mass flow controllers for 4 separate gas lines (for N2, O2, air and CO2) ensure precise, individually adjustable gassing, ideally tailored to the needs of your cells. Flow rates of 0.1-20 l/min can be achieved.
Liquid supply
4 integrated Watson Marlow pumps, adjustable in direction and speed, give you the variability to pump in and pump out different liquids (like acid, base, anti-foam agent, feeding solutions).
Sensors
HABITAT cell enables the measurement of the following parameters by means of sensors:
• pH
• DO (dissolved oxygen)
• temperature
• filling level
• foam
Temperature control
The constant and precise temperature control during the cultivation is guaranteed by the heating sleeve, which is adapted to the respective vessel size. (Heating sleeve is included with the HABITAT cell vessel package).
All features at a glance
> compact, space-saving design, dimensions: 223 x 402 x 450 mm (WxDxH)
> large tablet for clear operation (10,4 inch)
> intuitive, easy-to-use software with a lot of functionalities.
> 4 integrated fast-load pumps (Watson Marlow)
> connectivity: USB, PC, RS232, ethernet, external signal input, external pump, single-use unit, thermostat
> data storage
> gas supply with 4 built-in mass flow controllers: e.g. for O2, Luft, N2, CO2
> Status LED display: direct error display by indicator light
Note: Only a control tower package and the separately available vessel package make up a functional unit.
The HABITAT ferment cct control tower package is particularly suitable for HABITAT’s fermentation applications and is used to monitor and control the bioprocess. It includes the control unit with all connection options for gas supply, liquid addition, sensors and temperature control as well as a tablet for easy and clear operation of the bioreactor. In addition to the HABITAT cell package, you have the option of connecting CO2, conductivity and turbidity sensors. Control and monitoring The bioprocess and all associated test parameters can be easily controlled and monitored via the tablet attached to the control unit and with the help of the intuitive and easy-to-use software. Depending on the type of cultivation, you can choose between the operating modes batch, fed-batch and perfusion/continuous. The new Chaotic Mixing function ensures faster and more effective mixing when required. The 10.4-inch tablet allows direct access to all actuators directly on the main screen. A clear calibration management, a diagram overview and the complete documentation of the process round off the operation. A software version that meets FDA CFR Part 11 requirements is available as an option. Gas supply Built in mass flow controllers for 4 separate gas lines (for N2, O2, air and CO2) ensure precise, individually adjustable gassing, ideally tailored to the needs of your cells. Flow rates of 0.1-20 l/min can be achieved. Liquid supply 4 integrated Watson Marlow pumps, adjustable in direction and speed, give you the variability to pump in and pump out different liquids (like acid, base, anti-foam agent, feeding solutions). Sensors HABITAT cell enables the measurement of the following parameters by means of sensors: • pH • DO (dissolved oxygen) • temperature • filling level • foam Temperature control The constant and precise temperature control during the cultivation is guaranteed by the heating sleeve, which is adapted to the respective vessel size. (Heating sleeve is included with the HABITAT cell vessel package). All features at a glance > compact, space-saving design, dimensions: 223 x 402 x 450 mm (WxDxH) > large tablet for clear operation (10,4 inch) > intuitive, easy-to-use software with a lot of functionalities. > 4 integrated fast-load pumps (Watson Marlow) > connectivity: USB, PC, RS232, ethernet, external signal input, external pump, single-use unit, thermostat > data storage > gas supply with 4 built-in mass flow controllers: e.g. for O2, Luft, N2, CO2 > Status LED display: direct error display by indicator light Note: Only a control tower package and the separately available vessel package make up a functional unit.
* may be combined with double-walled vessel packages
The HABITAT photo ferment cct control unit package of the HABITAT research bioreactor is used to monitor and control the bioprocess. With the help of the LED panels included in the scope of delivery, the system can be used as a photobioreactor, for example for algae cultivation. The adjustment of the light intensity enables the simulation of the day-night rhythm. Furthermore, the package includes the control unit with all connection options for the gas supply, liquid addition, sensors and temperature control as well as a tablet for simple and clear operation of the bioreactor. In addition to the HABITAT cell package, you have the option of connecting CO2, conductivity and turbidity sensors.
Control and monitoring
The bioprocess and all associated test parameters can be easily controlled and monitored via the tablet attached to the control unit and with the help of the intuitive and easy-to-use software. Depending on the type of cultivation, you can choose between the operating modes batch, fed-batch and perfusion/continuous. The new Chaotic Mixing function ensures faster and more effective mixing when required. The 10.4-inch tablet allows direct access to all actuators directly on the main screen. A clear calibration management, a diagram overview and the complete documentation of the process round off the operation. A software version that meets FDA CFR Part 11 requirements is available as an option.
Gas supply
Built in mass flow controllers for 4 separate gas lines (for N2, O2, air and CO2) ensure precise, individually adjustable gassing, ideally tailored to the needs of your cells. Flow rates of 0.1-20 l/min can be achieved.
Liquid supply
4 integrated Watson Marlow pumps, adjustable in direction and speed, give you the variability to pump in and pump out different liquids (like acid, base, anti-foam agent, feeding solutions).
Sensors
HABITAT cell enables the measurement of the following parameters by means of sensors:
• pH
• DO (dissolved oxygen)
• temperature
• filling level
• foam
Temperature control
The constant and precise temperature control during the cultivation is guaranteed by the heating sleeve, which is adapted to the respective vessel size. (Heating sleeve is included with the HABITAT cell vessel package).
All features at a glance
> compact, space-saving design, dimensions: 223 x 402 x 450 mm (WxDxH)
> large tablet for clear operation (10,4 inch)
> intuitive, easy-to-use software with a lot of functionalities.
> 4 integrated fast-load pumps (Watson Marlow)
> connectivity: USB, PC, RS232, ethernet, external signal input, external pump, single-use unit, thermostat
> data storage
> gas supply with 4 built-in mass flow controllers: e.g. for O2, Luft, N2, CO2
> Status LED display: direct error display by indicator light
Note: Only a control tower package and the separately available vessel package make up a functional unit.
The faster Vi-CELL BLU automates the Trypan Blue Dye Exclusion method for cell viability analysis. The Vi-CELL BLU expedites processing by now having the option to use a 24-position sample carousel or a 96 well plate for sample delivery.
C19201 Includes Vi-CELL BLU Instrument (C19196) and Start up Kit (C23660)
Startup Kit (C23660) Contains:
C22467 Carousel Assembly
873155 Power Cord (North America)
C09492 Power Supply, 90-264 VAC, 220 W, 12V/15A
C99606 Vi-CELL Sample Vials (500 vials each bag), [C99606 replace previous C24243]
C24841 Vi-CELL 96-Well Plate, 5 pcs
C24842 Vi-CELL 96 Well Plate Cover Slip, 10 pcs
C17273 Wrench, allen std hex 8mm
C17843 Plug to cover locking screw hole
Additional enhancements incorporated in the Vi-CELL BLU include:
-Fully automated sample preparation, analysis and post-run cleaning
-Small sample size
-Fast sample processing time
-Small laboratory footprint
-Flexible sample introduction – carousel or 96 well plate
-User-friendly reagent system
-Cell viability reported in percentage, concentration, and cell count
-Large sampler capacity
-Data integrity tools
Want more information? Watch the Vi-CELL BLU automated cell counter Launch video.
Features :
Increased Productivity
FAST mode
24-position carousel
Supports 96 well plate sample introduction
Customizable analysis parameters
Flexibility and Ease of Use
Easy sample vial dispensing
Easy load reagent pack
Load-on-the go processing
Clean room kit option
Reagent Pack
RFID Tracking of reagent part number, lot number, activities, and expiration date
Easy load for automated sample prep
Labroatory reagent pack complete with Trypan Blue dye, buffer, disinfectant and cleaning solutions
Data Integrity and Compliance
Audit trail
Error log files
Electronic signature capability
Secure user sign-on
User level permissions
Administrative configuration tools
IQ/OQ
Your legacy Vi-CELL XR cell counter and viability analyzer is now replaced by the Vi-CELL BLU.
The MIRI® Time-Lapse Incubator is a multiroom incubator with a built-in camera and microscope. Designed and manufactured in EU, the MIRI® Time-Lapse Incubator provides high quality time-lapse images of embryos developing in "real-time" without having to remove the embryos from the safety of the incubation chamber for manual microscopy. Time-lapse embryo monitoring provides detailed morphokinetic data throughout embryo development, which is not available on routine spot microscopic evaluation. This allows all important events to be observed, helping IVF labs to identify healthy embryos with the highest probability of implantation, with the aim of achieving higher pregnancy rates.
FEATURES:
Completely independent chambers
6 (TL6) / 12 (TL12) independent chambers with precise temperature and gas regulation: Opening any chamber does not affect the environment in other chambers.
Time-lapse monitoring
Time-lapse video generated from images allows objective and reliable scoring and annotation of embryos for better prediction of future developmental and implantation potential
Heated lid
Excellent uniformity between the top and bottom lid.Heated chamber lids prevent condensation, enhance temperature regulation/recovery, and ensure temperature uniformity between the top and bottom of the chamber.
Fast temperature and gas recovery
• Temperature recovery <1 min
• Gas recovery <3 mins.
Superior gas system
• Built-in gas mixer for tri-gas, an advanced gas regulation system, and HEPA-VOC filtered recirculation allows precise gas level control and a lower gas consumption.
• UV-sterilization of recirculating gas ensures biological safety of embryos.
Easy external gas and temperature validation
Gas sampling ports for each chamber and independent PT-1000 sensors allow external quality evaluation of gas levels and temperature in each chamber.
User friendly interface
Touchscreen control panel with intuitive menu to manage configuration of the device
The CultureCoin
Specially designed culture dish, the CultureCoin, allows each chamber to culture 14 embryos, giving a total capacity of 84 embryos for the TL6 and 168 embryos for the TL12.
MIRI® TL Data Logger
Continually monitors and documents gas flow, gas concentration and pressure, temperature regulation.
Continuous pH monitoring
Optional SAFE Sens integration for continuous pH monitoring without opening the chamber.
MIRI® TL Viewer software and MIRI® TL Data Server
• Exponentially increase image and data storage capacity by adding the MIRI® TL Data Server.
• Combine MIRI® TL Viewer software platform to review, annotate and compare morphokinetic parameters of embryos, as well as export data for retrospective analysis.
The NEW Ultra ZWYC-293G offers comprehensive solutions for shaking cultivations on small foot print, including active humidity and CO2 control technology, offering exceptional flexibility, allowing for traditional shaking incubations with flasks and tubes, as well as micro-volume high-throughput microbial screening with 96-well plates.
Compact size for all-round applications, optimized controlling for process reliability, secured protections for precious samples, ZWYC-293G looks after all that you care about the most when it comes to shaking incubations for microbial, mammalian, and plant cell cultures.
Key Features:
- Ultra-compact design: Maximizes bench space while providing ample capacity for your incubation needs.
- Stackable configuration: Allows for easy expansion and customization to fit your laboratory setup. Compatible to stack with ZWYR-293.
- Ø1-50mm Shaking Diameter: Flexibility for most common shaking orbit used, ensuring uniform mixing and optimal growth conditions for small to large vessels.
- Ø3m Shaking Diameter (P5052): Aligning with the trends of high throughput screening, this option enables high speed up to 1200rpm.
- Humidity Active Control (P5053): 140°C direct steam injection system enables fast responsive humidity control, preventing the sample from drying out.
- CO2 Control (P5054): World class single beam, dual wavelength IR CO2 sensor, providing reliable performance, ensuring the healthy growth of cell cultures.
- Condensation Control:
o Heated full piece of glass door panel with no screws, minimizes the condensation, and easy for cleaning
o Chamber with rounded corners for easy cleaning
o Water dripping slot catches any excessive condensation - New dual lighting system: two sets of LED illumination and UV lighting inside the chamber. UV light is interlocked with the door opening.
- New ergonomic door handle locks the door securely preventing gas & water leakage.
- LED photosynthetic lighting panels (P5031WW; P5031RB): Available in Red & Blue dual color; and warm white single color.
The MIRI® Time-Lapse Incubator is a multiroom incubator with a built-in camera and microscope. Designed and manufactured in EU, the MIRI® Time-Lapse Incubator provides high quality time-lapse images of embryos developing in "real-time" without having to remove the embryos from the safety of the incubation chamber for manual microscopy. Time-lapse embryo monitoring provides detailed morphokinetic data throughout embryo development, which is not available on routine spot microscopic evaluation. This allows all important events to be observed, helping IVF labs to identify healthy embryos with the highest probability of implantation, with the aim of achieving higher pregnancy rates.
FEATURES:
Completely independent chambers
6 (TL6) / 12 (TL12) independent chambers with precise temperature and gas regulation: Opening any chamber does not affect the environment in other chambers.
Time-lapse monitoring
Time-lapse video generated from images allows objective and reliable scoring and annotation of embryos for better prediction of future developmental and implantation potential
Heated lid
Excellent uniformity between the top and bottom lid.Heated chamber lids prevent condensation, enhance temperature regulation/recovery, and ensure temperature uniformity between the top and bottom of the chamber.
Fast temperature and gas recovery
• Temperature recovery <1 min
• Gas recovery <3 mins.
Superior gas system
• Built-in gas mixer for tri-gas, an advanced gas regulation system, and HEPA-VOC filtered recirculation allows precise gas level control and a lower gas consumption.
• UV-sterilization of recirculating gas ensures biological safety of embryos.
Easy external gas and temperature validation
Gas sampling ports for each chamber and independent PT-1000 sensors allow external quality evaluation of gas levels and temperature in each chamber.
User friendly interface
Touchscreen control panel with intuitive menu to manage configuration of the device
The CultureCoin
Specially designed culture dish, the CultureCoin, allows each chamber to culture 14 embryos, giving a total capacity of 84 embryos for the TL6 and 168 embryos for the TL12.
MIRI® TL Data Logger
Continually monitors and documents gas flow, gas concentration and pressure, temperature regulation.
Continuous pH monitoring
Optional SAFE Sens integration for continuous pH monitoring without opening the chamber.
MIRI® TL Viewer software and MIRI® TL Data Server
• Exponentially increase image and data storage capacity by adding the MIRI® TL Data Server.
• Combine MIRI® TL Viewer software platform to review, annotate and compare morphokinetic parameters of embryos, as well as export data for retrospective analysis.
