Universal Testing Machines for tensile - compression - bending - …

Revolutionary systems optimized for production testing applications:

Medical devices, plastics, packaging, textiles, rubber, wood, electronics, pharma and  cosmetics.

Single Column Universal Test Machines - Up to 5 kN

 The single column test stands offer a wide range of materials testing possibilities, no matter your testing needs. Use the force testing machines for compression testing (Push) and tensile testing (Pull), or to perform a wide variety of tests on the universal materials testing machines.


AMETEK LLOYD LSPlus Tensile Force Testing Machine




AMETEK LLOYD - LSPlus Series - Up to 5 kN

Time to upgrade  to the Next Generation
of Tensile  & Compression Testing Technologie:
The new Lloyd LSPlus Series!


Order before February 2025 and GET 15% DISCOUNT


The LSPlus Series have a large working area and comes in three sizes and capacities:

  • LSPlus1 with a frame capacity of 1 kN (225 lbf) and 500 mm crosshead travel.
  • LSPlus2.5 with a frame capacity of 2.5 kN (562 lbf) and 1400 mm crosshead travel.
  • LSPlus5 with a frame capacity of 5 kN (1124 lbf) and 800 mm crosshead travel.

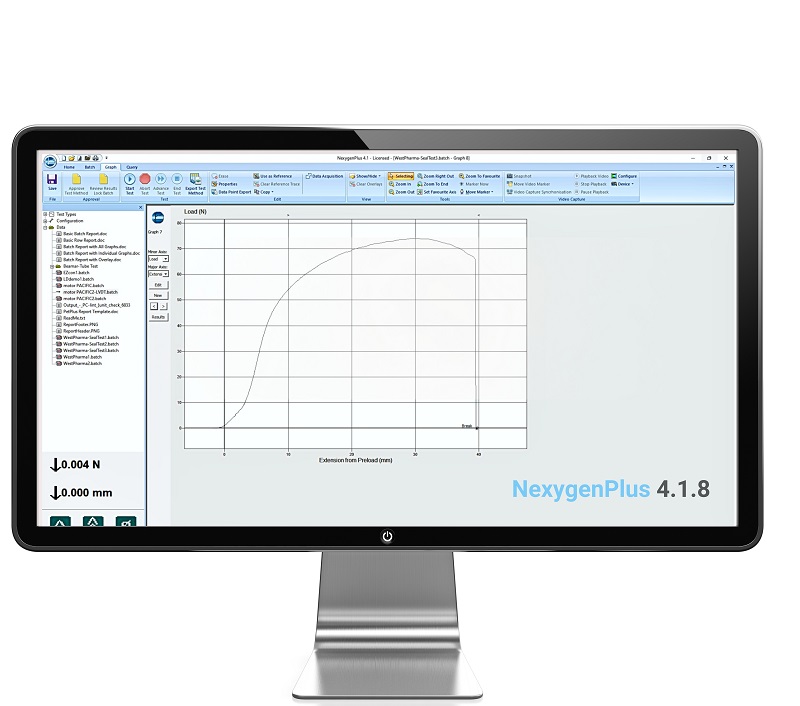

The LSPlus Series facilitates seamless testing through interchangeable grips and a comprehensive suite of material test types offered within the NEXYGENPlus software, exceeding basic functionality. This software allows for effortless data exchange with Excel and Word for efficient analysis and reporting, revolutionizing the way test results are interpreted and presented.

LSPlus Series Key Features:
- Simple to set up, operate and maintain with the optional laptop console.
- Enhanced capabilities in speed regulation and accuracy.
- Intuitive software interface for seamless operation and data analysis.
- Compatibility with a wide range of grips and accessories for versatile testing capabilities.
- High-precision, interchangeable YLC Series load cells.

LSPlus Series Introduction Video           Ask our experts

View all LSPlus product specifications

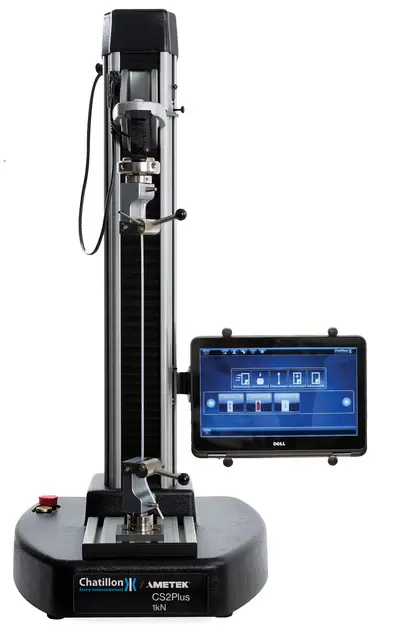

   AMETEK LLOYD-CSPlus Tensile Force Testing Machine

AMETEK CHATILLON - CSPlus Series - Up to 5 kN


The CSPlus Series feature a 2-in-1 laptop console with a user-friendly, robust and reliable 13” touch screen for use in production environments. The screen offers both graphical and tabular results along with a very intuitive user interface regardless of the operator skill level.
The CSPlus-225 offers a large work area with 180 mm throat depth and a 500 mm crosshead travel. This model is ideal for testing applications up to 1 kN (225 lbf). The CSPlus-1100 offers 150 mm throat depth and a 800 crosshead travel and is ideal for testing applications up to 5 kN  (1124 lbf). Both models have a speed accuracy better than 1%.

CS2Plus Series Key Features:
- Intuitive, user-friendly 2-in-1 laptop.
- Colorful 13" screen for easy and fast test setups.
- Robust construction.
- Flexible "T" slot mounting base for custom fixturing.
- Results and statistics are exported to CSV and PDF formats.
- Automatic export of results via RS232 interface after each test.
- 100 Hz data sampling.
- Multilingual and multi-unit display options as standard.

Dual Column Universal Test Machines - Up to 100 kN

 The dual column test stands are designed to measure medium or high force ranges on large materials where high-precision is required.

AMETEK  LLOYD  - LD Series - Up to 100 kN

AMETEK  LLOYD  - LD Series - Up to 100 kN


Designed for both routine quality control testing, automated testing and for performing complex multi-stage testing, the LD Series bench mounted testing machines come in five bench mounted models: the LD5 (up to 5 kN/1124 lbf), LD10 (up to 10 kN/2248 lbf), LD30 (up to 30 kN/6744 lbf), LD50 (up to 50 kN/11240 lbf) and LD100 (up to 100 kN/22480 lbf).

LD Series Key Features:
- Simple to set up, operate and maintain
- High-stiffness frame
- High-performance AC drive
- Compliant to CE machinery directive

Watch the video

Dual Column Universal Test Machines - Up to 1000 kN

The Hoytom LAB series is made with nominal capacities up to  1000 kN. Its high-capacity load cell provides maximum accuracy across the entire measurement range. It can also be equipped with a large range of fixtures, such as tensile grips, T-slotted plates, compression plates, bending tools, extensometers, etc. Each machine includes our Hoytom HoyWin® test control software, and our custom designed electronics. This enables users to extract maximum performance and accuracy, through a simple and intuitive interface. Typical test applications include high-strength steel, aerospace and automotive structures, screws, nuts, etc.

Ask our expert               Download Catalogue

HOYTOM HM-D Lab Series up to 300kN

HOYTOM HM-D Lab Series up to 300kN

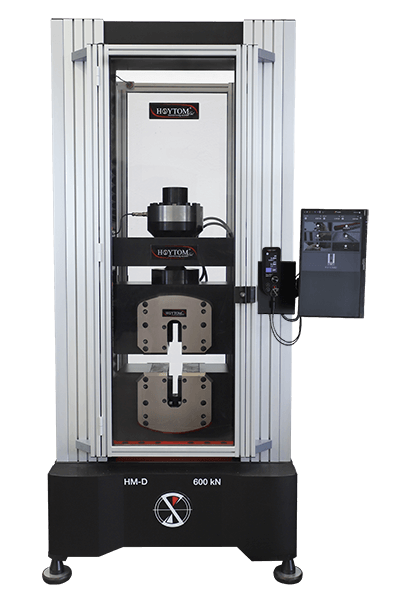

HOYTOM HM-D Lab Series up to 600kN

HOYTOM HM-D Lab Series up to 600kN

HOYTOM HM-D Lab Series up to 1000kN

HOYTOM HM-D Lab Series up to 1000kN

Download brochure

STARK Transmission System

The transmission in the HOYTOM STARK system, with its tempered gears rather than belts or chains, ensures there is hardly any deformation during peak torque. Thereby increasing rigidity and notably reducing the "rebound effect" following specimen breakage.

Watch the video

HYTOM STARK Transmission System

HoyWin®
Materials Testing Software

HoyWin®  Materials Testing Software
The HoyWin® software is available for Hoytom testing machines. HoyWin® has been designed to be an extension of our testing instruments, providing efficient operation and powerful analytical tools for each test.

Computer integrated in the machine - Touchscreen - Smart|Remote® Control

Learn more




Our products

AMETEK

LS5 Plus Standard

Reference : AME-LS5+SH-230V

Enhanced Materials Testing Capabilities with the LSPlus Series for compression and tensile testings

The LS5 Plus (up to 5KN), see technical specifications below, is part of a serie of 3 available configurations:  LSPlus1, LSPlus2.5, and LSPlus5.

Lloyd Instruments introduces the LSPlus Series, a significant advancement in materials testing technology. Building upon the established reputation of the LS Series, the LSPlus incorporates cutting-edge components to deliver unparalleled performance and reliability for diverse material testing applications.

Unmatched Precision and Accuracy
The LSPlus Series boasts superior speed control and enhanced accuracy compared to its predecessor. The high-precision, interchangeable YLC Series load cells guarantee meticulous results, with an impressive ±0.5% reading accuracy down to 1/100th of the load cell capacity. This enables engineers to have the utmost confidence in their material analysis data.

Versatile Design for Varied Testing Needs
Available in three configurations (LSPlus1, LSPlus2.5, and LSPlus5) with distinct sizes and capacities, the LSPlus Series offers the versatility needed to accommodate a wide range of material testing requirements across numerous industries.  From tensile and compression testing to peel adhesion testing of materials like rubber and medical devices, the LSPlus Series consistently delivers dependable results.

Advanced Functionality for Streamlined Testing Workflows
The LSPlus Series facilitates seamless testing through interchangeable grips and a comprehensive suite of material test types offered within the
NEXYGENPlus software, exceeding basic functionality. This software allows for effortless data exchange with Excel and Word for efficient analysis and reporting, revolutionizing the way test results are interpreted and presented. The LSPlus empowers engineers to effortlessly convert raw data into actionable insights, saving valuable time and resources throughout the testing process.

Maximized Throughput without Compromising Accuracy
For high-volume testing applications and automated environments, the LSPlus Series excels with its exceptional material test and return speed of 2032 mm/min (80 in/min). This advancement goes beyond mere speed; it empowers users to achieve unmatched efficiency and productivity. The increased return speed significantly boosts operational throughput, enabling engineers to handle tasks more swiftly and effectively. Importantly, this speed enhancement is achieved without sacrificing accuracy. Operations will run smoothly and seamlessly, upholding the precision and reliability that engineers depend upon.

Unlock the Potential of Advanced Materials Testing
Discover how the LSPlus Series from Lloyd Instruments can revolutionize your materials testing experience. Contact us today to request more information and explore how our advanced solutions can be precisely tailored to address your specific material testing needs. Upgrade to the LSPlus Series and experience a new level of precision, reliability, and efficiency in your materials testing.

Request more information to see how we can help you with a materials testing solution that suits your need.

AMETEK
LS5 Plus Standard
Reference : AME-LS5+SH-230V

Enhanced Materials Testing Capabilities with the LSPlus Series for compression and tensile testings

The LS5 Plus (up to 5KN), see technical specifications below, is part of a serie of 3 available configurations:  LSPlus1, LSPlus2.5, and LSPlus5.

Lloyd Instruments introduces the LSPlus Series, a significant advancement in materials testing technology. Building upon the established reputation of the LS Series, the LSPlus incorporates cutting-edge components to deliver unparalleled performance and reliability for diverse material testing applications.

Unmatched Precision and Accuracy
The LSPlus Series boasts superior speed control and enhanced accuracy compared to its predecessor. The high-precision, interchangeable YLC Series load cells guarantee meticulous results, with an impressive ±0.5% reading accuracy down to 1/100th of the load cell capacity. This enables engineers to have the utmost confidence in their material analysis data.

Versatile Design for Varied Testing Needs
Available in three configurations (LSPlus1, LSPlus2.5, and LSPlus5) with distinct sizes and capacities, the LSPlus Series offers the versatility needed to accommodate a wide range of material testing requirements across numerous industries.  From tensile and compression testing to peel adhesion testing of materials like rubber and medical devices, the LSPlus Series consistently delivers dependable results.

Advanced Functionality for Streamlined Testing Workflows
The LSPlus Series facilitates seamless testing through interchangeable grips and a comprehensive suite of material test types offered within the
NEXYGENPlus software, exceeding basic functionality. This software allows for effortless data exchange with Excel and Word for efficient analysis and reporting, revolutionizing the way test results are interpreted and presented. The LSPlus empowers engineers to effortlessly convert raw data into actionable insights, saving valuable time and resources throughout the testing process.

Maximized Throughput without Compromising Accuracy
For high-volume testing applications and automated environments, the LSPlus Series excels with its exceptional material test and return speed of 2032 mm/min (80 in/min). This advancement goes beyond mere speed; it empowers users to achieve unmatched efficiency and productivity. The increased return speed significantly boosts operational throughput, enabling engineers to handle tasks more swiftly and effectively. Importantly, this speed enhancement is achieved without sacrificing accuracy. Operations will run smoothly and seamlessly, upholding the precision and reliability that engineers depend upon.

Unlock the Potential of Advanced Materials Testing
Discover how the LSPlus Series from Lloyd Instruments can revolutionize your materials testing experience. Contact us today to request more information and explore how our advanced solutions can be precisely tailored to address your specific material testing needs. Upgrade to the LSPlus Series and experience a new level of precision, reliability, and efficiency in your materials testing.

Request more information to see how we can help you with a materials testing solution that suits your need.
