Sigma 3-16KL, refrigerated benchtop centrifuge 220-240 V, 50/60 Hz

Reference: SIG-10360

Sigma 3-16KL, refrigerated benchtop centrifuge, with motorized lid lock.

Intuitive operation in an all-rounder
Like the Sigma 3-16L, the Sigma 3-16KL refrigerated general-purpose centrifuge has a wide range of applications. The intuitive user interface with patented one-button control and illuminated buttons makes it easy to operate. It fits into the work environment with a pleasantly low noise level and achieves 4°C at maximum speed.

The Sigma 3‑16KL is also available as the Sigma 3‑16L unrefrigerated centrifuge and as an IVD model.

Controller Specifications:

Programs: 50
Acceleration curves: 10
Deceleration curves: 10
Cycle counting: Yes

Request more information

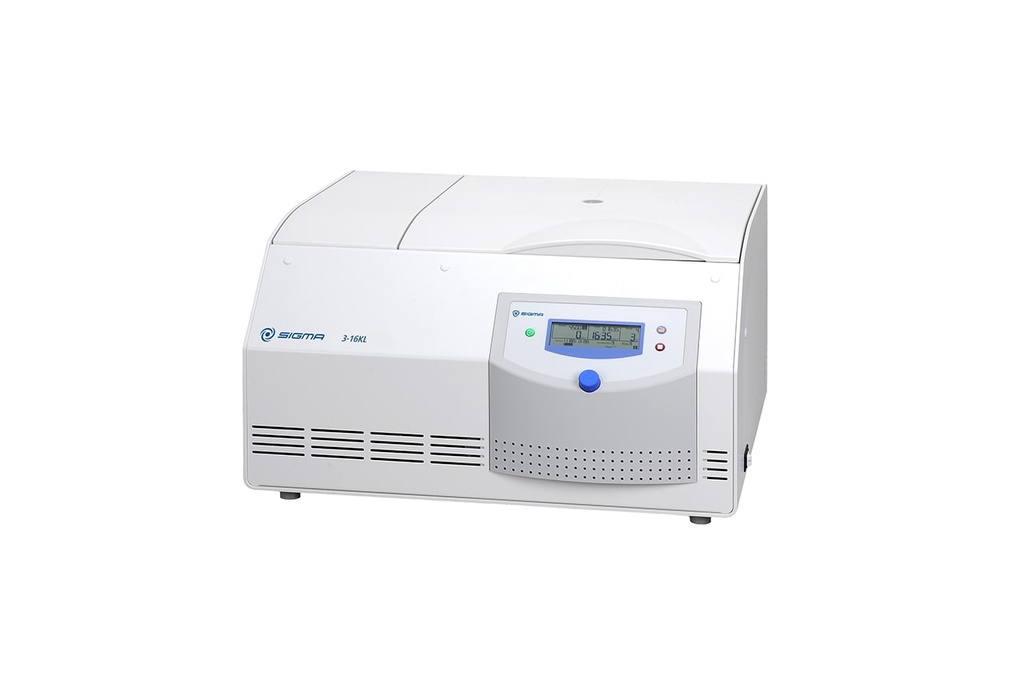

Sigma 3-16KL, refrigerated benchtop centrifuge 220-240 V, 50/60 Hz

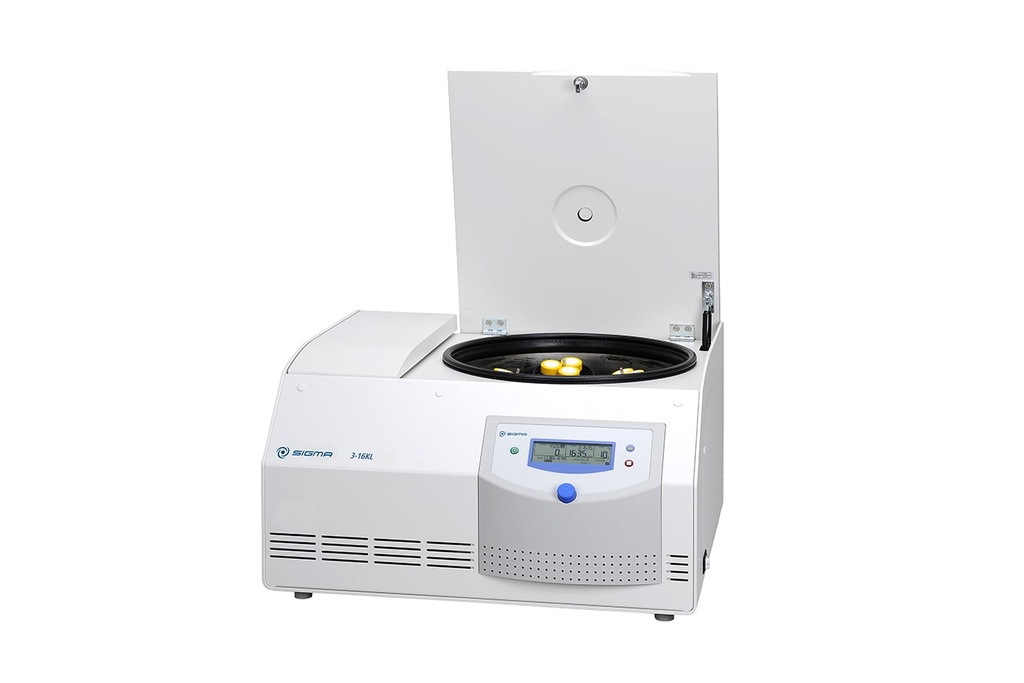

Sigma 3-16KL refrigerated benchtop centrifuge opened

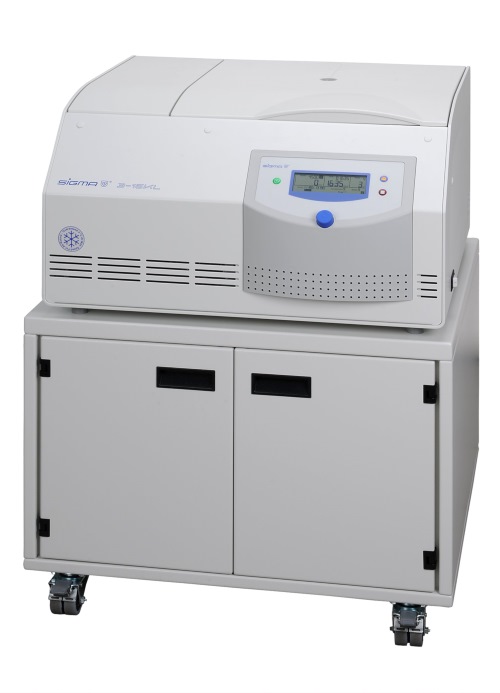

Sigma 3-16KL refrigerated tabletop centrifuge on centrifuge cabinet 17926 - closed

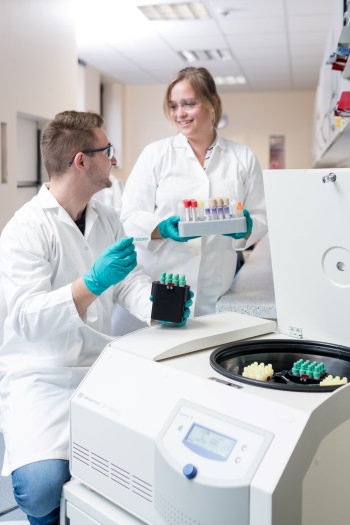

Scientists loading Sigma 3-16KL refrigerated tabletop centrifuge with blood collection tubes

Technical information

Max. capacity [ml]
swing-out rotor	4 x 400

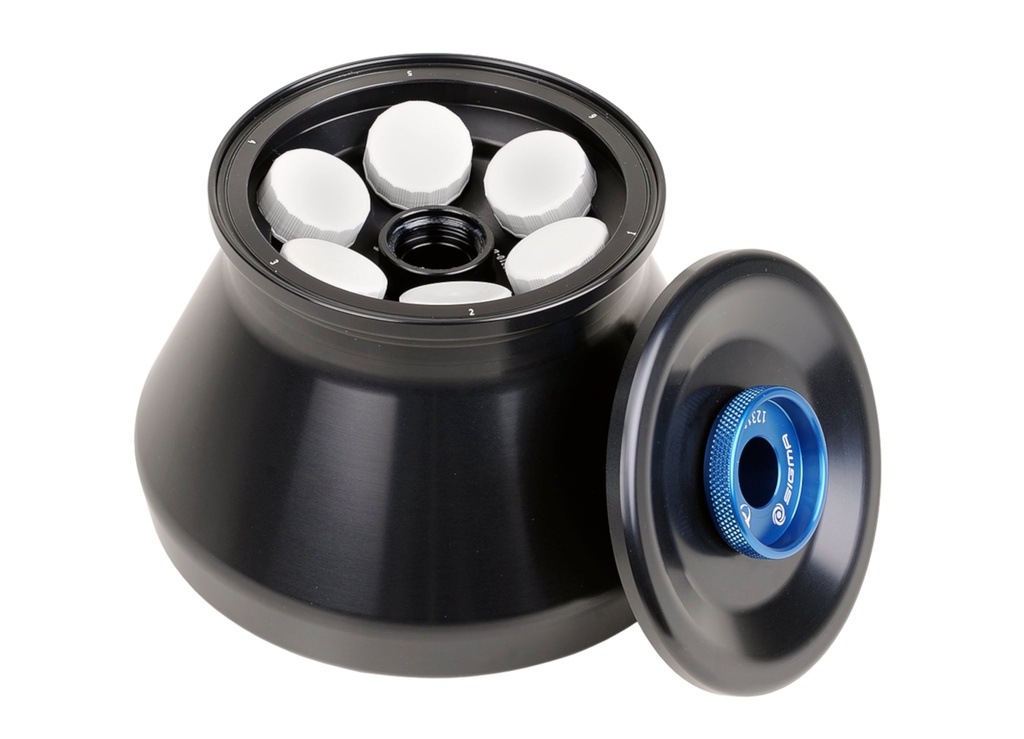

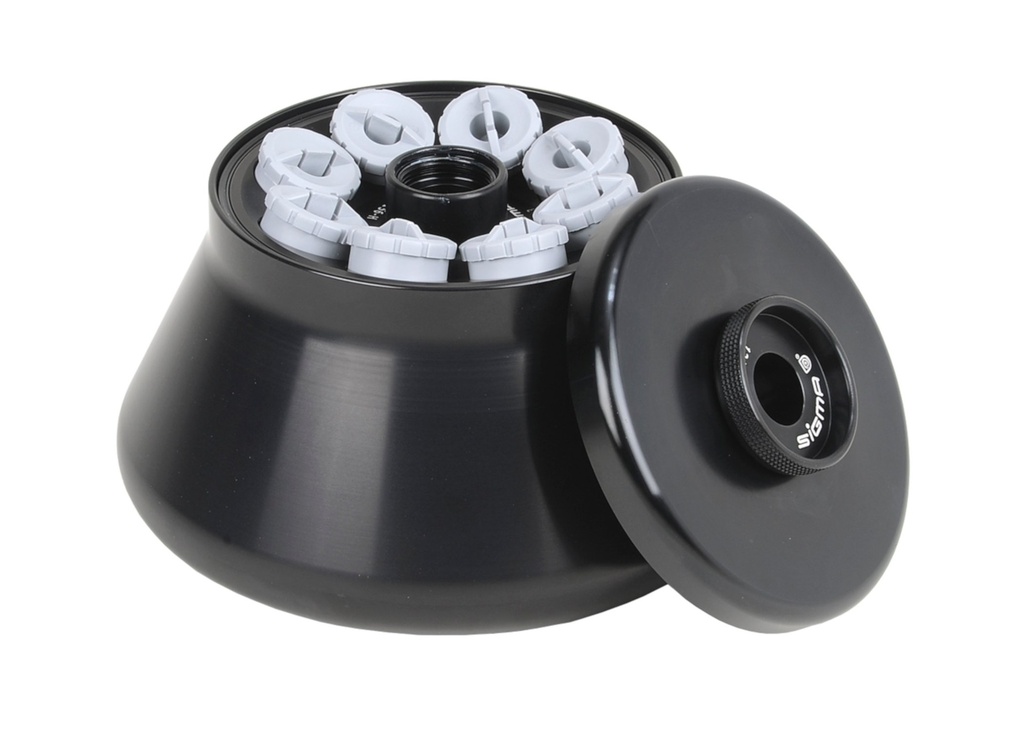

fixed-angle rotor	6 x 94
Max. RCF	21.984
Max. speed [rpm]	15.300
Min. speed [rpm]	100

Noise level at maximum speed (approximate) [dB(A)]

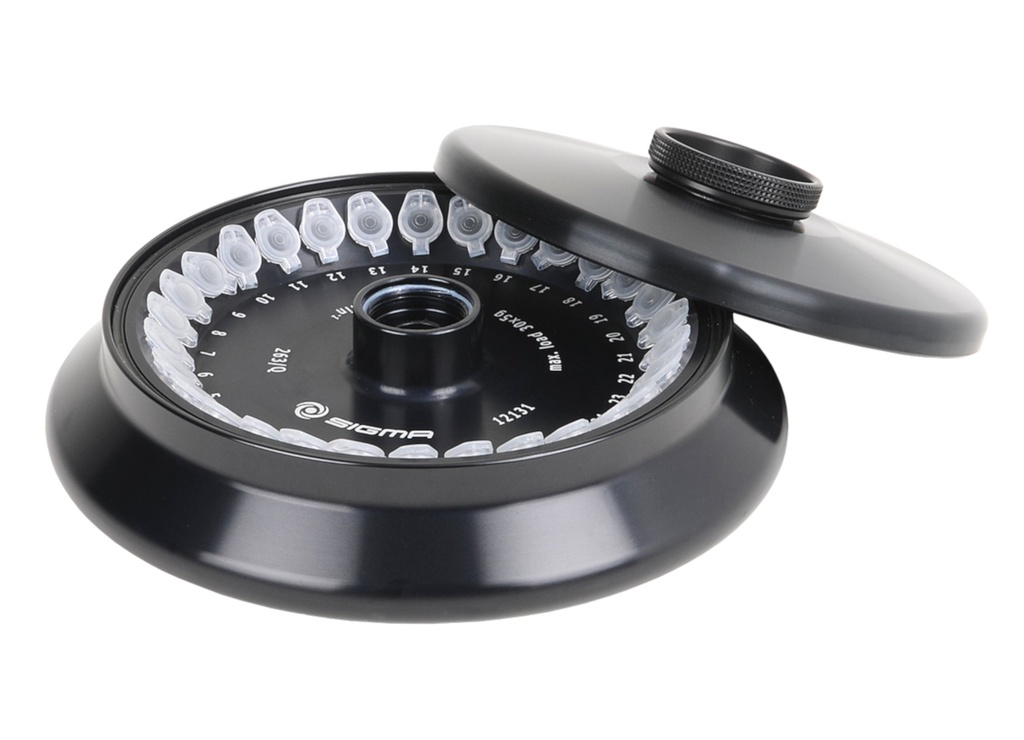

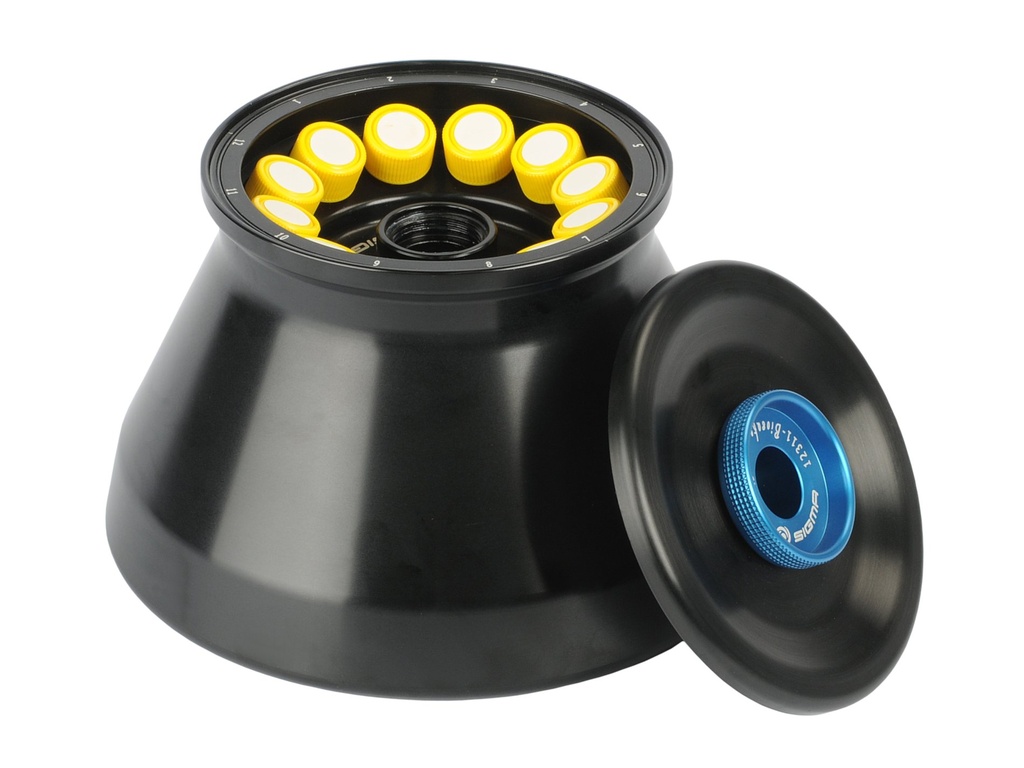

fixed-angle rotor 12154	≤ 55

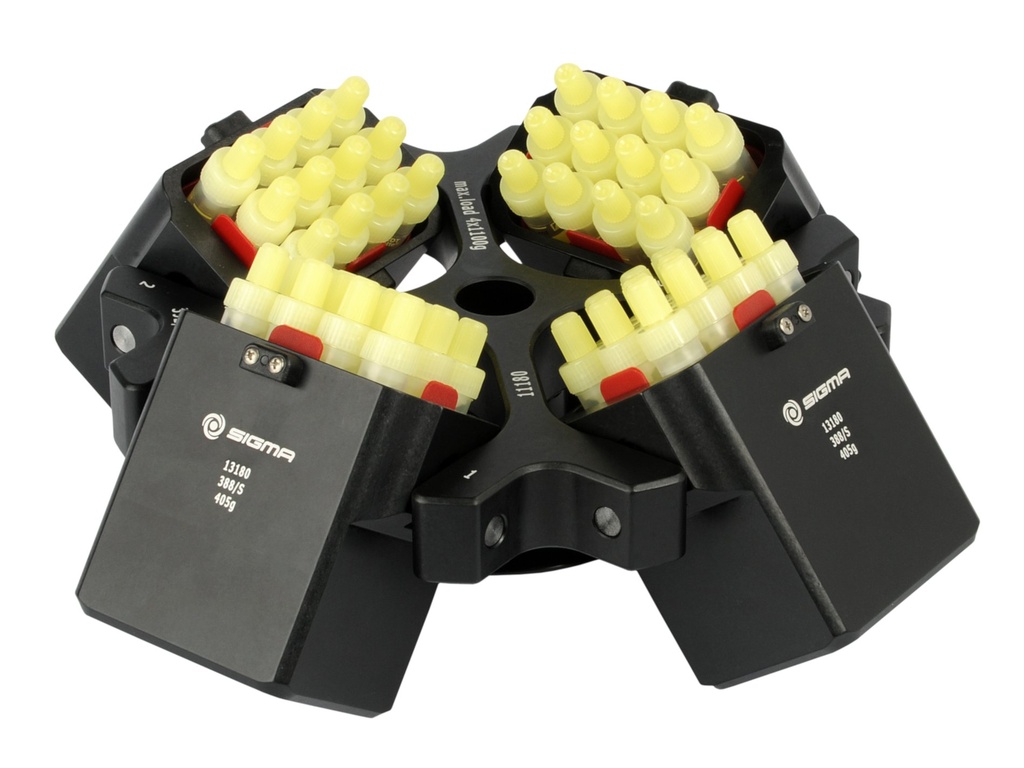

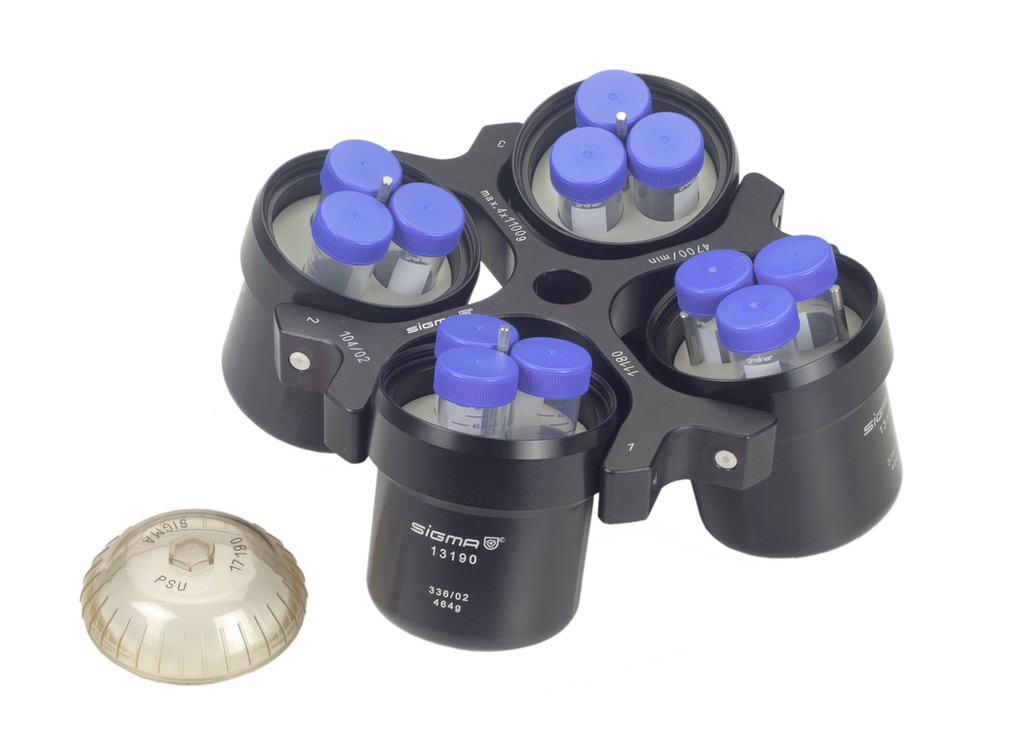

swing-out rotor 11180 with bucket 13190	≤ 52
Max. acceleration time [s]
fixed-angle rotor 12154	≤ 25
swing-out rotor 11180 with bucket 13190	≤ 16
Max. braking time [s]
fixed-angle rotor 12154	≤ 40
swing-out rotor 11180 with bucket 13190	≤ 17

Temperature setting range [°C]	-10 – +40
Power consumption [W]	1.010
Height x Width x Depth [mm]	355 x 630 x 600
Height with open lid [mm]	785
Weight without rotor [kg]	78
Refrigerant	R134a
Charge [kg] / Pressure [bar]	0,385 / 23
CO2 equivalent [t]	0,551
