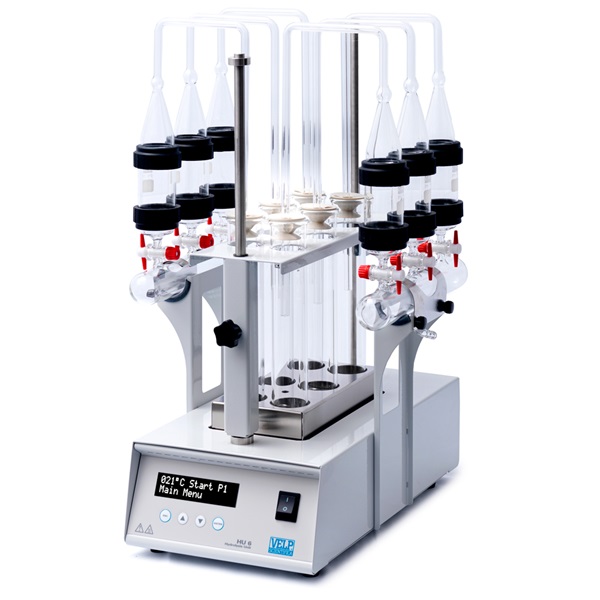

HU 6 Hydrolysis Unit

Reference: VEL-F30300150

https://www.analis.com/web/image/product.template/123372/image_1920?unique=689d05d

Preliminary Hydrolysis for total fat determination

The VELP Scientifica Hydrolysis Unit HU 6 is the ideal solution for the sample preparation prior to solvent extraction for the determination of the total fat content, in order to free the fat molecules ready for extraction.

This procedure is required in a number of AOAC Official Methods to determine the fat content of food samples such as meat, cheese, seafood, chocolate, cereal flours, etc.

The HU 6 performs hydrolysis in complete safety and handles six samples at the same time in order to maximize productivity.

Fast and safe hydrolysis

The samples are heated in test-tubes in an aluminum heating block offering excellent thermal homogeneity. Hydrolysis is performed in an acidic environment (4N hydrochloric acid) and in some cases also in a basic environment (20% w/v ammonia) for about 60 minutes at a temperature of 170°C. The hydrolyzed sample is then filtered in a glass crucible and washed with warm deionized water to eliminate traces of hydrochloric acid.

The HU 6 is supplied with a vacuum pump that ensure safety thanks to the reduction of acid fumes.

The glass crucible containing the hydrolyzed and washed sample is oven dried before being placed in a desiccator. The crucible is then transferred directly to the SER 158 and SER 148 Solvent Extraction Unit avoiding any possible sample loss and ensuring improved accuracy of results.

    This combination does not exist.

    HU 6 Hydrolysis Unit

    Technical information

    Construction material:

    epoxy painted stainless steel structure

    Number of positions:

    6 samples

    Set temperature:

    display visualization

    Countdown:

    display visualization

    Display:

    LCD

    Number of programs:

    20

    Selectable language:

    IT, EN

    Temperature range:

    from room temp. to 200 °C

    Temperature calibration:

    automatic

    Stability of the heating block temperature:

    ± 0,5°C

    Precision of the heating block temperature:

    ± 0,5°C

    Reaching of set temperature:

    acoustic and visual signal

    Power:

    1150 W

    Dimensions (WxHxD):

    420x230x130 mm (16.5x9.0x5.1 in)

    Weight:

    14 Kg / 30.8 lb


    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    VELP-Brochure-Hydrolysis Unit (HU 6)
    23 / 12 / 2024
    Download icon Download

    Related accessories, consumables & products

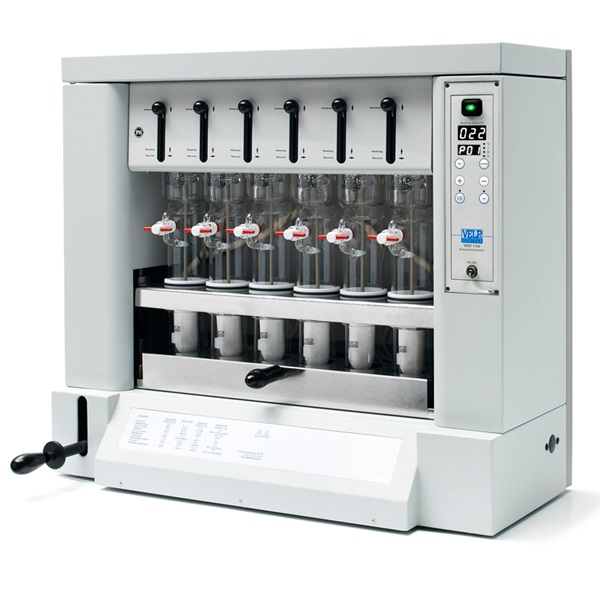

    SER 148/6 - Solvent Extractors
    VELP

    SER 148/6 - Solvent Extractors

    Reference : VEL-F30300242

    The reliable solution for solvent extraction

    The SER 148/3 and SER 148/6 can be used to separate a substance or a group of elements from solid and semi-solid samples according to the Randall technique (consisting of Immersion, washing and solvent Recovery).

    As for the automatic version SER 158, the main field of application is the determination of the content of soluble products such as fats, detergents, plasticizers and pesticides in food, animal feeds, detergents, rubber and plastic formulas, pharmaceutical products, soil.

    The SER 148 Series is a semi-automatic solution with no compromises on operator safety (IP55) and solvent consumption also guaranteeing a limited cost per analysis.

    Combined to HU6 Hydrolysis Unit, is possible to use the same crucibles to prevent any possible sample loss between the two units.

    Randall Method, Faster Results

    Perform single or multiple solvent extractions with Randall method, an improvement of Soxhlet technique, as hot solvents are used to speed up the analysis. In fact, the fast solubilization made by hot solvent permits a considerable reduction of the extraction time (approx. 90 minutes).

    The extraction is made by immersion of the sample in the boiling  solvent, followed by a rinsing phase with cold solvent.

    Maximum reproducibility is ensured, as well as a high recovery rate of the solvent used.

    SER Series can be used with a wide range of sample types and with a variety of solvents, for increased flexibility.

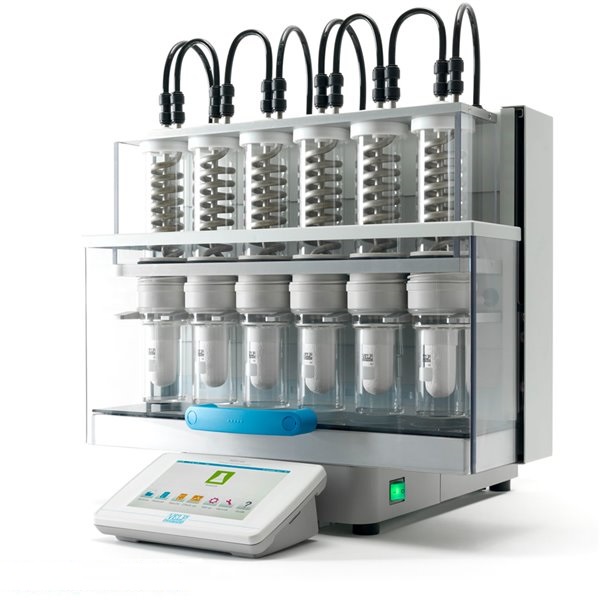

    SER 158/6 Automatic Solvent Extractor
    VELP

    SER 158/6 Automatic Solvent Extractor

    Reference : VEL-S303A0380

    Fast and accurate solid-liquid extraction

    The SER 158 Series automatic solvent extractors, available in 3- and 6-position models, provide precise and accurate solutions for both quantitative and qualitative extractable matter determination according to the Randall method, analyzing up to 5 times faster than traditional Soxhlet extraction.

    The solid-liquid extraction process efficiently removes soluble components from solids through 5 sequential steps. The SER 158 works in compliance with international standards, including s AOAC, ISO, EPA, APHA, UNI.

    With robust heating, advanced software, and integrated safety features, the SER 158 ensures reproducible extraction results.

    The SER 158 is fully automated to maximize productivity and free operator time. Just Load&Go!

    Unparalleled versatility and scalability

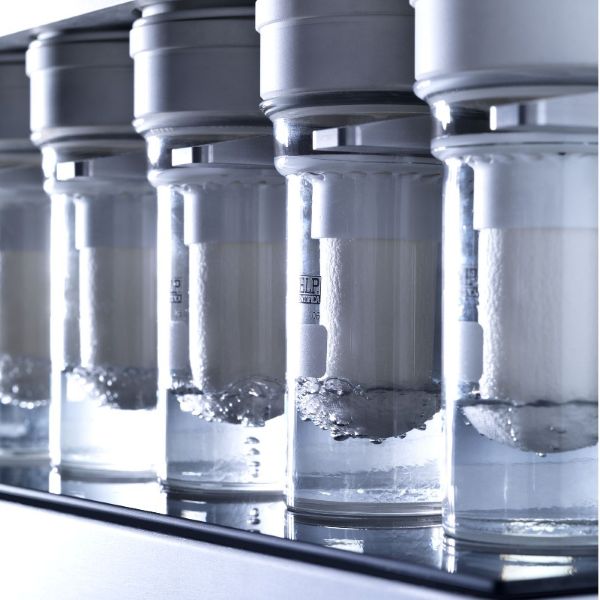

    VELP SER 158 solvent extraction - versatility and scalability - zoom image
    The SER 158 Series stands out for its versatility, designed to handle all sample types and sizes with a complete range of accessories and consumables:

    • Butyl, Viton, and the exclusive Vaflon seals ensure broad compatibility with the majority of solvents and solvent mixtures.
    • 3 different sizes of cups, thimble holders, and thimbles enable precise extraction of minimal sample amounts while reducing solvent use.
    • Choose between cellulose thimbles for quantitative analysis and glass fiber thimbles for qualitative analysis.
    • Compatibility with HU6 glass crucible to prevent sample loss during transfer.

    The SER 158 is a universal solvent extractor and combining up to 4 units enables you to perform multiple applications independently and simultaneously.

    Smart and easy to use.

    The SER 158’s exclusive 7" ControlPadTM offers a highly intuitive User Interface, simplifying setup and interaction with the analyzer.

    Engineered for 24/7 unattended operation, the SER 158 leverages the Load&Go technologies, minimizing the need for manual intervention. The integrated, removable ControlPadTM supports connection with a balance and barcode reader, maximizing automation and ensuring full traceability.

    Choose from a library of pre-installed methods, create new ones, and mark your favorites for a fast start-up. The ControlPad™ displays each extraction step in real-time, providing a comprehensive set of information and options.

    Results are immediately calculated and stored in the on-board memory. With three USB ports and an Ethernet connection, data can be easily exported to external devices for seamless integration.
