What is a laboratory oven?
A laboratory oven is an instrument designed for drying within a laboratory. A laboratory oven typically uses electrical heating elements to heat the chamber from 4 sides. Temperature is measured by an accurate Pt sensor inside the chamber. Temperature range typically goes up to 300°C.
What is the difference between a laboratory oven and a laboratory incubator?
From a technology point of view these 2 instruments are very similar. They both use electrical heating elements in 4 sides to control the temperature. A laboratory incubator is designed to have a better temperature performance around incubation temperatures (for example 37°C). A laboratory oven focusses more on having a larger temperature range (up to 300°C). Although these are very similar instruments from a technology point of view, the applications are very different. A laboratory oven is in general more used for drying applications (like glassware drying or moisture determination). An incubator is more used for applications at lower incubation temperatures (like microbiology).
What is the difference between a natural convection oven and a forced convection oven?
Natural convection ovens will use natural convection as the main heat transfer method. This means that air will mix naturally by the rising of hot air. Forced convection ovens will have a ventilator in the chamber that will actively mix the air to speed up the air mixing and heat transfer. In general, natural convection ovens are preferred when working with powder samples. For other sample types in general forced convection ovens are preferred because of the better temperature performance and drying time.
Our products

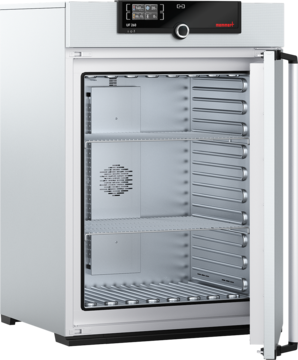

Universal oven UF30, forced air circulation, with SingleDISPLAY, 32 l, working-temperature range at least 10 °C above ambient temperature to +300 °C, setting temperature range +20 °C to +300 °C, with 1 grid, stainless steel door, electronically adjustable air flap from 0 to 100 % in 10 % steps and adjustable fan speed from 0 % to 100 % in 10 % steps, Ethernet interface for reading out protocol log, double overtemperature protection, internal data logger with storage capacity of at least 10 years, calibration facility; works calibration certificate at +160 °C; textured stainless steel exterior: 585 x 704 x 434 mm; stainless steel interior: 400 x 320 x 250 mm; voltage: 230 V, 50/60 Hz; max. electrical load: approx. 1600 W
Universal oven UF55, forced air circulation, with SingleDISPLAY, 53 l, working-temperature range at least 10 °C above ambient temperature to +300 °C, setting temperature range +20 °C to +300 °C, with 1 grid, stainless steel door, electronically adjustable air flap from 0 to 100 % in 10 % steps and adjustable fan speed from 0 % to 100 % in 10 % steps, Ethernet interface for reading out protocol log, double overtemperature protection, internal data logger with storage capacity of at least 10 years, calibration facility; works calibration certificate at +160 °C; textured stainless steel exterior: 585 x 784 x 514 mm; stainless steel interior: 400 x 400 x 330 mm; voltage: 230 V, 50/60 Hz; max. electrical load: approx. 2000 W
Universal oven UF75, forced air circulation, with SingleDISPLAY, 74 l, working-temperature range at least 10 °C above ambient temperature to +300 °C, setting temperature range +20 °C to +300 °C, with 2 grids, stainless steel door, electronically adjustable air flap from 0 to 100 % in 10 % steps and adjustable fan speed from 0 % to 100 % in 10 % steps, Ethernet interface for reading out protocol log, double overtemperature protection, internal data logger with storage capacity of at least 10 years, calibration facility; works calibration certificate at +160 °C; textured stainless steel exterior: 585 x 944 x 514 mm; stainless steel interior: 400 x 560 x 330 mm; voltage: 230 V, 50/60 Hz; max. electrical load: approx. 2500 W
Universal oven UF110, forced air circulation, with SingleDISPLAY, 108 l, working-temperature range at least 10 °C above ambient temperature to +300 °C, setting temperature range 20 °C to 300 °C, with 2 grids, stainless steel door, electronically adjustable air flap from 0 to 100 % in 10 % steps and adjustable fan speed from 0 % to 100 % in 10 % steps, Ethernet interface for reading out protocol log, double overtemperature protection, internal data logger with storage capacity of at least 10 years, calibration facility; works calibration certificate at +160 °C; textured stainless steel exterior: 745 x 864 x 584 mm; stainless steel interior: 560 x 480 x 400 mm; voltage: 230 V, 50/60 Hz; max. electrical load: approx. 2800 W
Universal oven UF260, forced air circulation, with SingleDISPLAY, 256 l, working-temperature range at least 10 °C above ambient temperature to +300 °C, setting temperature range +20 °C to +300 °C, with 2 grids, stainless steel door, electronically adjustable air flap from 0 to 100 % in 10 % steps and adjustable fan speed from 0 % to 100 % in 10 % steps, Ethernet interface for reading out protocol log, double overtemperature protection, internal data logger with storage capacity of at least 10 years, calibration facility; works calibration certificate at +160 °C; textured stainless steel exterior: 824 x 1183 x 684 mm; stainless steel interior: 640 x 800 x 500 mm; voltage: 230 V, 50/60 Hz; max. electrical load: approx. 3400 W
Universal oven UN30, natural convection, with SingleDISPLAY, 32 l, working-temperature range at least 5 °C above ambient temperature to +300 °C, setting temperature range +20 °C to +300 °C, with 1 grid, stainless steel door, electronically adjustable air flap from 0 to 100 % in 10 % steps, Ethernet interface for reading out protocol log, double overtemperature protection, internal data logger with storage capacity of at least 10 years, calibration facility; works calibration certificate at +160 °C; textured stainless steel exterior: 585 x 704 x 434 mm; stainless steel interior: 400 x 320 x 250 mm; voltage: 230 V, 50/60 Hz; max. electrical load: approx. 1600 W
Universal oven UN75, natural convection, with SingleDISPLAY, 74 l, working-temperature range at least 5 °C above ambient temperature to +300 °C, setting temperature range +20 °C to +300 °C, with 2 grids, stainless steel door, electronically adjustable air flap from 0 to 100 % in 10 % steps, Ethernet interface for reading out protocol log, double overtemperature protection, internal data logger with storage capacity of at least 10 years, calibration facility; works calibration certificate at +160 °C; textured stainless steel exterior: 585 x 944 x 514 mm; stainless steel interior: 400 x 560 x 330 mm; voltage: 230 V, 50/60 Hz; max. electrical load: approx. 2500 W
Universal oven UN55, natural convection, with SingleDISPLAY, 53 l, working-temperature range at least 5 °C above ambient temperature to +300 °C, setting temperature range +20 °C to +300 °C, with 1 grid, stainless steel door, electronically adjustable air flap from 0 to 100 % in 10 % steps, Ethernet interface for reading out protocol log, double overtemperature protection, internal data logger with storage capacity of at least 10 years, calibration facility; works calibration certificate at +160 °C; textured stainless steel exterior: 585 x 784 x 514 mm; stainless steel interior: 400 x 400 x 330 mm; voltage: 230 V, 50/60 Hz; max. electrical load: approx. 2000 W
Universal oven UN110, natural convection, with SingleDISPLAY, 108 l, working-temperature range at least 5 °C above ambient temperature to +300 °C, setting temperature range +20 °C to +300 °C, with 2 grids, stainless steel door, electronically adjustable air flap from 0 to 100 % in 10 % steps, Ethernet interface for reading out protocol log, double overtemperature protection, internal data logger with storage capacity of at least 10 years, calibration facility; works calibration certificate at +160 °C; textured stainless steel exterior: 745 x 864 x 584 mm; stainless steel interior: 560 x 480 x 400 mm; voltage: 230 V, 50/60 Hz; max. electrical load: approx. 2800 W
Universal oven UN160, natural convection, with SingleDISPLAY, 161 l, working-temperature range at least 5 °C above ambient temperature to +300 °C, setting temperature range +20 °C to +300 °C, with 2 grids, stainless steel door, electronically adjustable air flap from 0 to 100 % in 10 % steps, Ethernet interface for reading out protocol log, double overtemperature protection, internal data logger with storage capacity of at least 10 years, calibration facility; works calibration certificate at +160 °C; textured stainless steel exterior: 745 x 1104 x 584 mm; stainless steel interior: 560 x 720 x 400 mm; voltage: 230 V, 50/60 Hz; max. electrical load: approx. 3200 W
Universal oven UN260, natural convection, with SingleDISPLAY, 256 l, working-temperature range at least 5 °C above ambient temperature to +300 °C, setting temperature range +20 °C to +300 °C, with 2 grids, stainless steel door, electronically adjustable air flap from 0 to 100 % in 10 % steps, Ethernet interface for reading out protocol log, double overtemperature protection, internal data logger with storage capacity of at least 10 years, calibration facility; works calibration certificate at +160 °C; textured stainless steel exterior: 824 x 1183 x 684 mm; stainless steel interior: 640 x 800 x 500 mm; voltage: 230 V, 50/60 Hz; max. electrical load: approx. 3400 W
