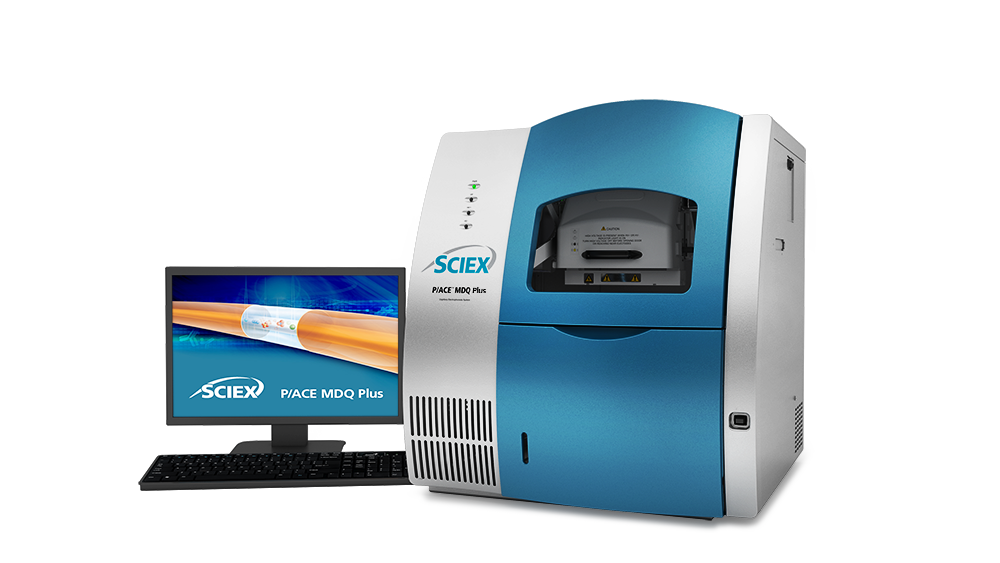

P/ACE MDQ Plus Capillary Electrophoresis System

Reference: ABS-B52521

The P/ACE MDQ Plus is an automated, programmable capillary electrophoresis system designed to perform fast separations from complex samples.

The system includes:
> a selectable-wavelength high sensitivity modular UV/Vis detector (includes 200, 214, 230 and 254 nm filters to optimize analyte specificity) with UV source optics,
> temperature-controlled sample storage module
> 32 Karat™ Software configured on a desktop controller
> Installation Qualification, Operation Qualification 1 (OQ1) and documentation to aid in software validation are also included.

If required:
Add application support and training when desired.
Add other detectors specific for your application when desired - Optional DAD and/or LIF

Operational Qualification (OQ3) is NOT available for this system.

Request more information

P/ACE MDQ Plus Capillary Electrophoresis System

Technical information

System specifications

Dimensions:
Height: 29.2 in (74.2 cm)
Door open: 38.8 in (98.6 cm)
Width: 25 in (63.5 cm)
Depth: 28.4 in (72.1 cm)

Weight (uncrated):
188 lbs (85.3 kg) (includes UV/Vis detector)

Electrical requirements:
Voltage: 100 - 240 V; 50/60 Hz
Voltage range: 1 to 30 kV programmable at 0.1 kV increments

Current range:
3 to 300 μA programmable at 0.1 μA increments

Pressure delivery range:
-5 to +100 PSI

Sample temperature control:
4 - 60°C

Capillary temperature control:
15 - 60°C

System capacity

Sample trays:
2 x 96-well plates
2 x 48 universal vials
2 x 48 0.3 ml vials or microfuge tubes

Buffer tray:
2 x 36 universal vials

Detection capability

UV (optional)
200, 214, 254, 280 nm standard filter
190 - 600 nm (custom filter option)

Diode array (optional)
190 - 600 nm programmable
0.5 - 32 Hz scan collection frequency programmable

Laser induced fluorescence (LIF) (optional)
300 - 700 nm excitation range
350 - 750 nm emission range
0 - 1000 RFU

Source lasers with 3 mW power output:
488 nm solid-state laser (included in A66528)
635 nm diode laser (optional)

Supplies and accessories

Universal vial caps (100 pack): P/N A62250
Universal vials (100 pack): P/N A62251
200 μL microvials (100 pack): P/N 144709
NanoVials (100 pack): P/N 5043467
Electrode assembly: P/N A47775
Vial cap opener: P/N A95348
Vial holder assembly, 6x6 (36 vials): P/N A94462
Vial holder assembly, 6x8 (48 vials): P/N A94461
Capillary cartridge, semi assembled (no capillary): P/N A11147
Blank cartridge assembly kit: P/N 144738
Cartridge rebuilding kit: P/N 144645
Cartridge tubing: P/N 144689
Capillary cartridge coolant (450 mL): P/N 359976
