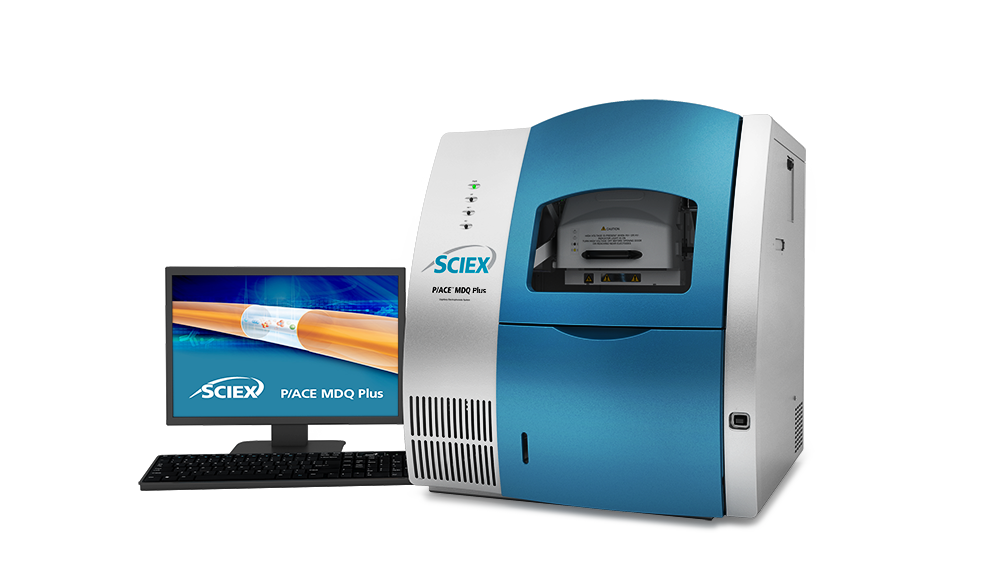

P/ACE MDQ Plus Capillary Electrophoresis System

Reference: ABS-B52521

https://www.analis.com/web/image/product.template/25142/image_1920?unique=9c80963

The P/ACE MDQ Plus is an automated, programmable capillary electrophoresis system designed to perform fast separations from complex samples.

The system includes:
> a selectable-wavelength high sensitivity modular UV/Vis detector (includes 200, 214, 230 and 254 nm filters to optimize analyte specificity) with UV source optics,
> temperature-controlled sample storage module
> 32 Karat™ Software configured on a desktop controller
> Installation Qualification, Operation Qualification 1 (OQ1) and documentation to aid in software validation are also included.

If required:
Add application support and training when desired.
Add other detectors specific for your application when desired - Optional DAD and/or LIF

Operational Qualification (OQ3) is NOT available for this system.

    This combination does not exist.

    P/ACE MDQ Plus Capillary Electrophoresis System

    Technical information

    System specifications

    Dimensions:
    Height: 29.2 in (74.2 cm)
    Door open: 38.8 in (98.6 cm)
    Width: 25 in (63.5 cm)
    Depth: 28.4 in (72.1 cm)

    Weight (uncrated):
    188 lbs (85.3 kg) (includes UV/Vis detector)

    Electrical requirements:
    Voltage: 100 - 240 V; 50/60 Hz
    Voltage range: 1 to 30 kV programmable at 0.1 kV increments

    Current range:
    3 to 300 μA programmable at 0.1 μA increments

    Pressure delivery range:
    -5 to +100 PSI

    Sample temperature control:
    4 - 60°C

    Capillary temperature control:
    15 - 60°C

    System capacity

    Sample trays:
    2 x 96-well plates
    2 x 48 universal vials
    2 x 48 0.3 ml vials or microfuge tubes

    Buffer tray:
    2 x 36 universal vials

    Detection capability

    UV (optional)
    200, 214, 254, 280 nm standard filter
    190 - 600 nm (custom filter option)

    Diode array (optional)
    190 - 600 nm programmable
    0.5 - 32 Hz scan collection frequency programmable

    Laser induced fluorescence (LIF) (optional)
    300 - 700 nm excitation range
    350 - 750 nm emission range
    0 - 1000 RFU

    Source lasers with 3 mW power output:
    488 nm solid-state laser (included in A66528)
    635 nm diode laser (optional)

    Supplies and accessories

    Universal vial caps (100 pack): P/N A62250
    Universal vials (100 pack): P/N A62251
    200 μL microvials (100 pack): P/N 144709
    NanoVials (100 pack): P/N 5043467
    Electrode assembly: P/N A47775
    Vial cap opener: P/N A95348
    Vial holder assembly, 6x6 (36 vials): P/N A94462
    Vial holder assembly, 6x8 (48 vials): P/N A94461
    Capillary cartridge, semi assembled (no capillary): P/N A11147
    Blank cartridge assembly kit: P/N 144738
    Cartridge rebuilding kit: P/N 144645
    Cartridge tubing: P/N 144689
    Capillary cartridge coolant (450 mL): P/N 359976
