BROOKFIELD (AMETEK)

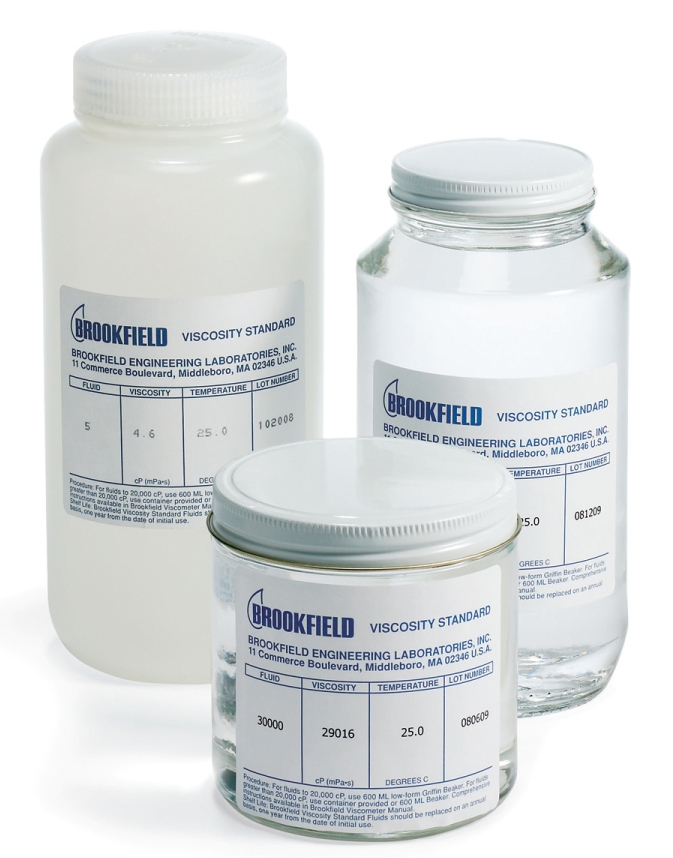

5 cP VISCOSITY STANDARD (appx 900ml)

Reference: AME-5 CPS

Silicone viscosity standard fluids are most commonly used to verify calibration of Brookfield lab viscometers anviscometers and rheometers and are less temperature sensitive than mineral oils.
General purpose silicone fluids are the most commonly used standard for verifying calibration of your Brookfield Viscometer/Rheometer.
Silicone Standards are for Newtonian fluids which are accurate to ±1% of viscosity value.
Silicone fluids provide excellent temperature stability and are less temperature sensitive than oil viscosity standards.

Brookfield Viscosity Standards are certified by methods traceable to the United States National Institute of Standards and Technology (NIST).
The selection of one or two fluids will normally provide sufficient measurement points to verify calibration of your instrument.
All fluids are supplied in ½ liter (1 pint) containers complete with a certificate of calibration.

FEATURES & BENEFITS

Accuracy: ±1% of viscosity value
Excellent temperature stability
Recommended for use with Brookfield and most other rotational viscometers
Most economical
Special viscosity values and temperature calibrations available upon request

Request more information

Technical information

General Purpose Silicone Fluids
Brookfield Part #	Nominal Viscosity cP (mPa · s)	Temp °C
5 cps	5	25°C
10 cps	10	25°C
50 cps	50	25°C
100 cps	100	25°C
500 cps	500	25°C
1000 cps	1,000	25°C
5000 cps	5,000	25°C
12500 cps	12,500	25°C
30000 cps	30,000	25°C
60000 cps	60,000	25°C
100000 cps	100,000	25°C
