BECKMAN COULTER LIFE SCIENCES

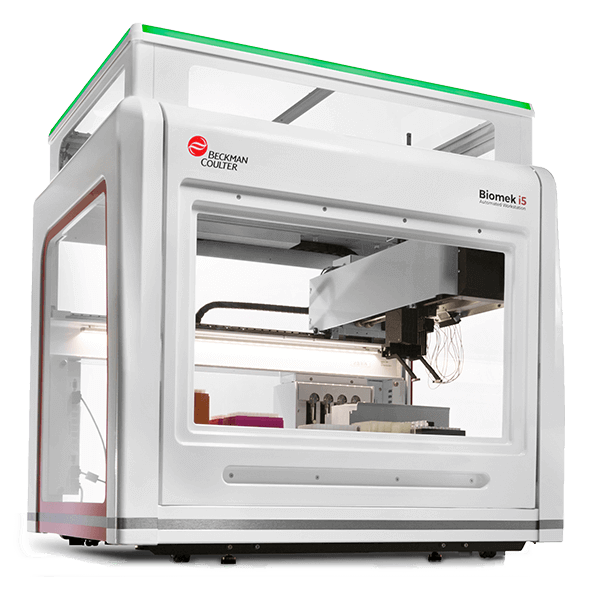

Biomek i5 Multichannel with enclosure

Reference: BEC-B87583

The Biomek i5 automated liquid handler with enclosure is ideal for medium- to high-throughput workflows. The Biomek i5 Multichannel B87583 features an enclosed versatile workspace with up to 25 deck positions, flexible pipetting options with a Multichannel head (96/384/Pin tool), and simple system operations. The Biomek i5 offers application-focused solutions with automated demonstrated methods and capabilities for genomic, drug discovery & basic research workflows.

Request a quote and an automated liquid handling specialist will get in touch with you to discuss your lab's specific needs.

B87583 configuration of the automated workstation system includes:
accuframe tool, side and rear safety shields, front safety light curtain, Enclosure, Automation Controller, Biomek Software

Request more information

Technical information

Minimum Table Support Requirements	71x83cm(28x33in)
Platform	Biomek i-Series
Pod and Tool Type	1μL - 300 μL 96-Channel Head; 5 μL -1200 μL 96-Channel head; 0.5 μL - 60 μL Multichannel-384 Head
Tip Type	T30_384; T25F_384; T50_384; T40F_384; T80_384; T40F; T80_LLS; T40F_LSS; T90; T50F; T90_LSS; T50F_LLS; T230; T230_LSS; T190F_LLS; T230_WB; T1070; T1020_WB
Environmental Conditions	Maximum altitude: 2000 m
Installation Category	II
Power Requirements	100-240 VAC, 50/60 Hz, 10 A
Operating System	Windows® 10
Software	Biomek software, SAMI EX scheduling software, Biomek PowerPack software, Biomek Method Launcher, DART 2.0 software
Display	22" controller screen
Operating Mode(s)	Semi-automated, manual, controlled by operator
Autoclavable	No
Material(s)	Aluminum Chassis, ABS Cover, Acrylic Panels
Finish	Hardcoat anodized coating, High-gloss paint
Weight	181 kg
Width	112 cm
Depth	81 cm
Height	112 cm
Package Quantity	1
Temperature Range	10° C - 30°C
Humidity Restrictions	20%–85% (non-condensing) at 30°C
