BECKMAN COULTER LIFE SCIENCES

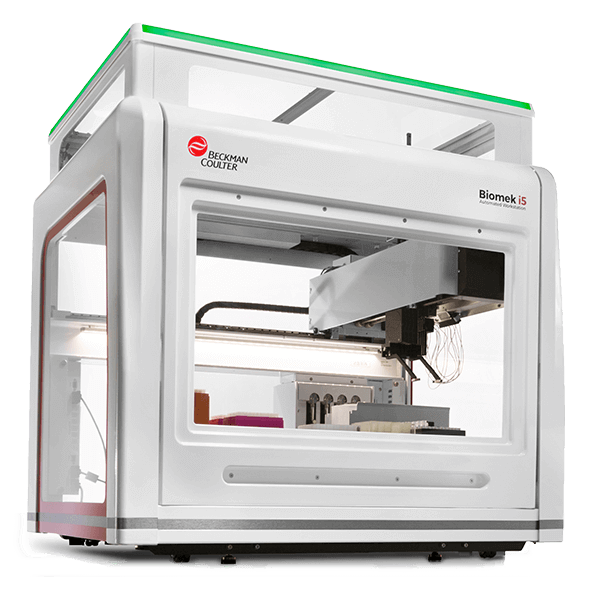

Biomek i5 Span-8 with enclosure

Reference: BEC-B87584

The Biomek i5 automated liquid handler Span-8 with enclosure is ideal for medium- to high-throughput workflows. It features an enclosed versatile workspace with up to 25 deck positions, Span-8 pipetting with liquid-level sensing, and simple system operations. The Biomek i5 offers application-focused solutions with automated demonstrated methods & capabilities for genomic, drug discovery and basic research workflows.

B87584 configuration of this automated worksation system includes:
accuframe tool, side and rear safety shields, front safety light curtain, Enclosure, Automation Controller, Biomek Software, 8 x 1mL Syringes, 8 x Disposable Mandrels, Passive Wash Station
Comes with a single box of p/n B85775 T80 conductive tips

Request a quote and an automated liquid handling specialist will get in touch with you to discuss your lab's specific needs.

Request more information

Technical information

Minimum Table Support Requirements	71x83cm(28x33in)
Platform	Biomek i-Series
Pod and Tool Type	Span-8 Pod
Environmental Conditions	Up to 2000 m
Installation Category	II
Power Requirements	100-240 VAC, 50/60 Hz, 10 A
Operating System	Windows® 10
Software	Biomek software, SAMI EX scheduling software, Biomek PowerPack software, Biomek Method Launcher, DART 2.0 software
Display	22" controller screen
Operating Mode(s)	Semi-automated, manual, controlled by operator
Autoclavable	No
Material(s)	ABS Cover, Aluminum Chassis, Acrylic Panels
Finish	High-gloss paint, Hardcoat anodized coating
Weight	172 kg(379.2 lb)
Width	112 cm(44.1 in)
Depth	81 cm(31.9 in)
Height	112 cm(44.1 in)
Package Quantity	1
Temperature Range	10° C - 30°C
Humidity Restrictions	20%–85% (non-condensing) at 30°C
