BECKMAN COULTER LIFE SCIENCES

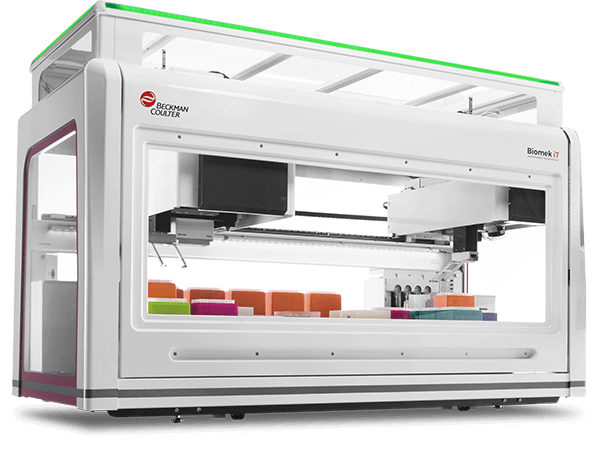

Biomek i7 dual-Multichannel with enclosure

Reference: BEC-B87586

Biomek i7 Automated Workstation is the most powerful and comprehensive Biomek available.

- High-throughput
- 45 deck positions
- 0.5 - 5,000 µL pipetting volume range
- Single or dual heads

B87586 configuration of the system includes: accuframe tool, side and rear safety shields, front safety light curtain, Enclosure, Automation Controller, Biomek Software

Request more information

Biomek i7 dual-Multichannel with enclosure

Technical information

Minimum Table Support Requirements	116x63cm(46x25in)
Platform	Biomek i-Series
Pod and Tool Type	1μL - 300 μL 96-Channel Head; 5 μL -1200 μL 96-Channel head; 0.5 μL - 60 μL Multichannel-384 Head
Tip Type	T30_384; T25F_384; T50_384; T40F_384; T80_384; T40F; T80_LLS; T40F_LSS; T90; T50F; T90_LSS; T50F_LLS; T230; T230_LSS; T190F_LLS; T230_WB; T1070; T1020_WB
Environmental Conditions	Maximum altitude: 2000 m
Installation Category	II
Power Requirements	100-240 VAC, 50/60 Hz, 10 A
Operating System	Windows® 10
Software	Biomek software, SAMI EX scheduling software, Biomek PowerPack software, Biomek Method Launcher, DART 2.0 software
Display	22" controller screen
Operating Mode(s)	Semi-automated, manual, controlled by operator
Autoclavable	No
Material(s)	Aluminum Chassis, ABS Cover, Acrylic Panels
Finish	Hardcoat anodized coating, High-gloss paint
Weight	269 kg(593 lb)
Width	170 cm(66.9 in)
Depth	81 cm(31.9 in)
Height	112 cm(44.1 in)
Package Quantity	1
Temperature Range	10° C - 30°C
Humidity Restrictions	20%–85% (non-condensing) at 30°C
