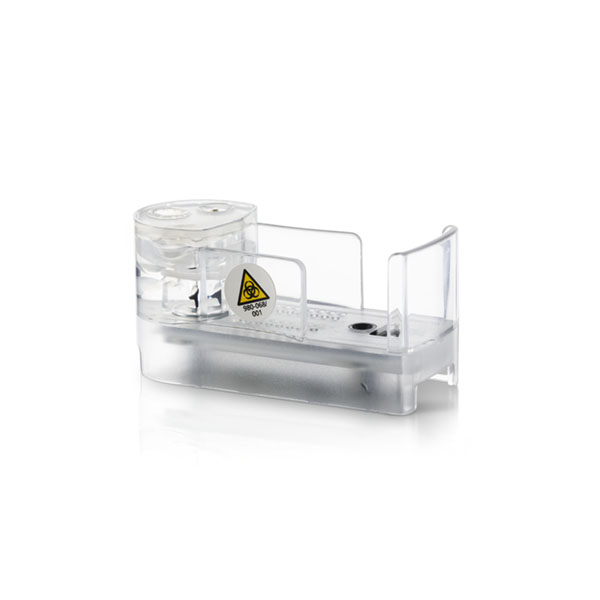

SC300 sensor cassette for MetaFLEX

Reference: BEC-B93030

https://www.analis.com/web/image/product.template/4271/image_1920?unique=9c80963

Sensor cassette for the fast and efficient Vi-CELL MetaFLEX Bioanalyze platform.

The Vi-CELL MetaFLEX sensor cassette contains sensors for the tests (except for the oximetry and bilirubin tests). It uses thick-film sensor technology and miniaturized sensors to enable direct measurements of glucose and lactate from a 100 μL sample (65 μL sample plus 35 μL tare).


SC300 measures pH, pO2, pCO2, Glucose, Lactate, Electrolytes in cell culture medium and also more parameters associated with whole blood analysis.

    This combination does not exist.

    SC300 sensor cassette for MetaFLEX

    Technical information

    • Good for 300 tests
    • In-use lifetime of 30 days (or until max number of tests)
    • Automatic QC
    • Shelf life of 4 months
    • Storage temperature of 2-8° C / 35-46° F

    Related accessories, consumables & products

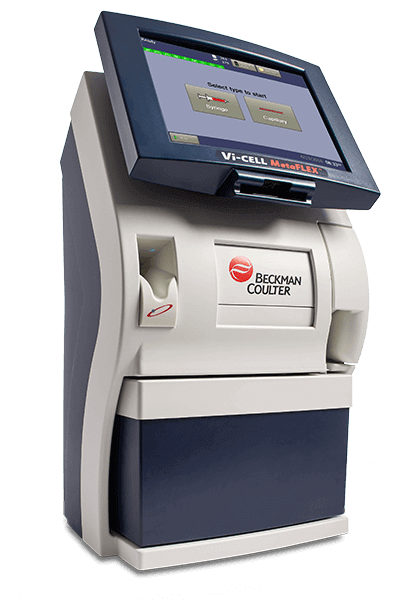

    Vi-CELL™ MetaFLEX, Complete System, Bioanalyte Analyzer
    BECKMAN COULTER LIFE SCIENCES

    Vi-CELL™ MetaFLEX, Complete System, Bioanalyte Analyzer

    Reference : BEC-B93015

    Bioanalyte analyzer for Speed, Reliability, Low Sample Volume.
    Ideal for micro to large-scale cell culture applications, the Vi-CELL MetaFLEX analyzer delivers fast, accurate analysis of pH, pO2, pCO2, glucose, lactate, electrolytes, and more parameters. The system provides an automatic quality management system with 3 dedicated on-board QC solutions and a customizable QC schedule.
    Security and data log features help you comply with 21 CFR Part 11 guidelines.

    This complete system includes:
    - B93017 Vi-CELL MetaFLEX
    - B93029 Solution Pack (includes reagents, calibrators, wash solutions, QC controls and waste collection)
    - B93030 SC300 sensor cassette
    - B97759 Vi-CELL MetaFLEX Start Up Kit includes the following:
     * Backflush device
     * Thermal Paper roll
      * Inlet Gasket with Holder
    - C00195 Vi-CELL MetaFLEX Service Installation and training.

    Measuring samples as small as 65 µL and returning results in just 35 seconds, our With less maintenance, more reliability, and a surprisingly small footprint, it’s a sophisticated research solution that profiles test samples quickly, easily, and accurately—keeping your test cell cultures in balance, viable, and growing.

    Features :

    Quality Management
    3 dedicated QC solutions
    Automatic failure detection & resolution
    Continuous system & analysis checks
    Automatic lockout of parameter(s) that fail QC
    Customizable QC schedule

    Operation
    Results in 35 seconds*
    Small sample volume (65 µL all parameters)*
    Process 44 samples per hour*
    Cycle time per sample is 1 minute*
    23.5 hours per day average uptime**
    *May vary during startup
    **May vary during startup (2.5 min for system calibration is longest activity)

    21 CFR Part 11 Enabled
    Sample results log: 2000
    Activity log: 5000
    Calibration adjustment log: 1000
    Data secured by password protection
    Electronic signature capability
    Secure user sign-on (8 user level permissions)
    Administrative configuration tools

    Applications
    R&D
    QC
    Manufacturing
    Ideal for micro to large scale cell culture applications, the Vi-CELL MetaFLEX is designed for rapid and accurate Bioanalyte analysis.

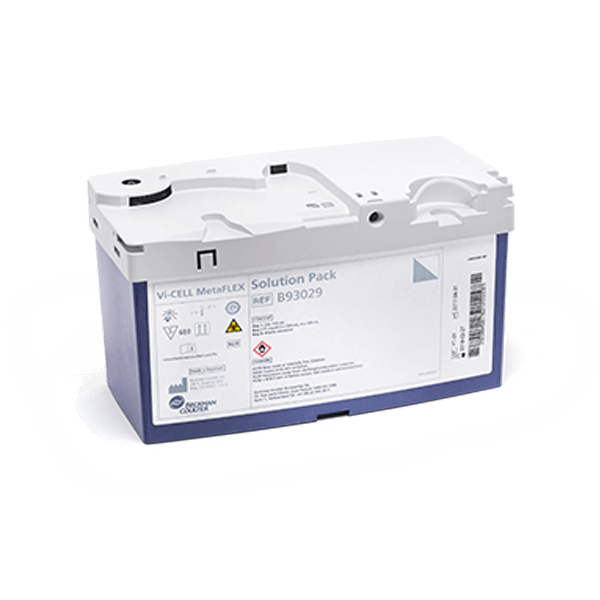

    Solution pack for MetaFLEX
    BECKMAN COULTER LIFE SCIENCES

    Solution pack for MetaFLEX

    Reference : BEC-B93029

    Solution pack Vi-Cell MetaFLEX solution pack includes reagents, calibrators, wash solutions, QC controls and waste collection
