BINDER

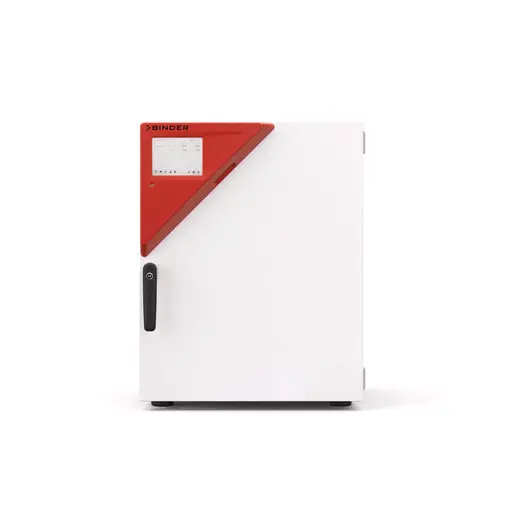

CB056-230V, Standard, Series CB - CO2 incubators with hot air sterilization and heat sterilizable CO2 sensor, 53 L, 230 V 1~ 50/60 Hz

Reference: BIN-9640-0005

https://www.analis.com/web/image/product.template/127943/image_1920?unique=dc5d6e8

Maximum reliability in a minimal footprint

When bench space is limited but reliability can't be compromised, the BINDER CB 56 delivers the same proven anti-contamination concept as the larger CB models, in a compact 53 L chamber suited to smaller labs, satellite workstations, or projects requiring multiple independently controlled units rather than one large chamber. Its heat sterilizable CO₂ sensor and 180°C hot air sterilization guarantee dependable, drift-free conditions for every cell culture — regardless of scale.

Key technical highlights:

  • 53 L compact chamber: seamless, fanless stainless steel interior — ideal where bench or incubator-room space is at a premium
  • 180°C hot air sterilization: proven anti-contamination concept without chemical consumables
  • Heat sterilizable CO₂ sensor: single-beam infrared technology, stable and drift-free over repeated cycles
  • Double-pan humidification system with condensation protection, maintaining 90–95% RH
  • Fail-safe CO₂ regulation: protects culture pH stability even during frequent door openings
  • Cell therapy compartmentalization option: divided inner door (4 doors / 2 shelves) for segregated small-batch handling
  • Full traceability: internal data logging with USB export, Ethernet connectivity, zero-voltage alarm contact

    This combination does not exist.

    Technical information

    Specification Detail
    Interior volume 53 L
    Temperature range +4°C above ambient to 50°C
    Temperature uniformity at 37°C ±0.3 K
    Temperature fluctuation at 37°C ±0.1 K
    Recovery time after door opening (30 sec, 37°C) 5 min
    Humidity 90–95% r.h.
    CO₂ range 0–20 vol.%
    CO₂ measurement Infrared (IR), single-beam
    CO₂ recovery time (30 sec door opening, 5 vol.%) 5 min
    Interior dimensions (W x H x D) 400 x 400 x 330 mm
    Exterior dimensions (W x H x D) 528 x 674 x 545 mm
    Net weight 53 kg
    Max. shelf load 10 kg
    Max. total load 30 kg
    Number of shelves (standard/max) 2 / 3
    Nominal power 0.8 kW
    Sound pressure level 41 dB(A)
    Energy consumption at 37°C 45 Wh/h

    Available options: Divided inner door for cell therapy compartmentalization (4 doors/2 shelves), access ports with silicone plug (back/left/right, 30 mm), calibration certificates (temperature / temperature+CO₂), APT-COM™ 4 monitoring software (Basic/GLP/Professional editions).
