ERLAB

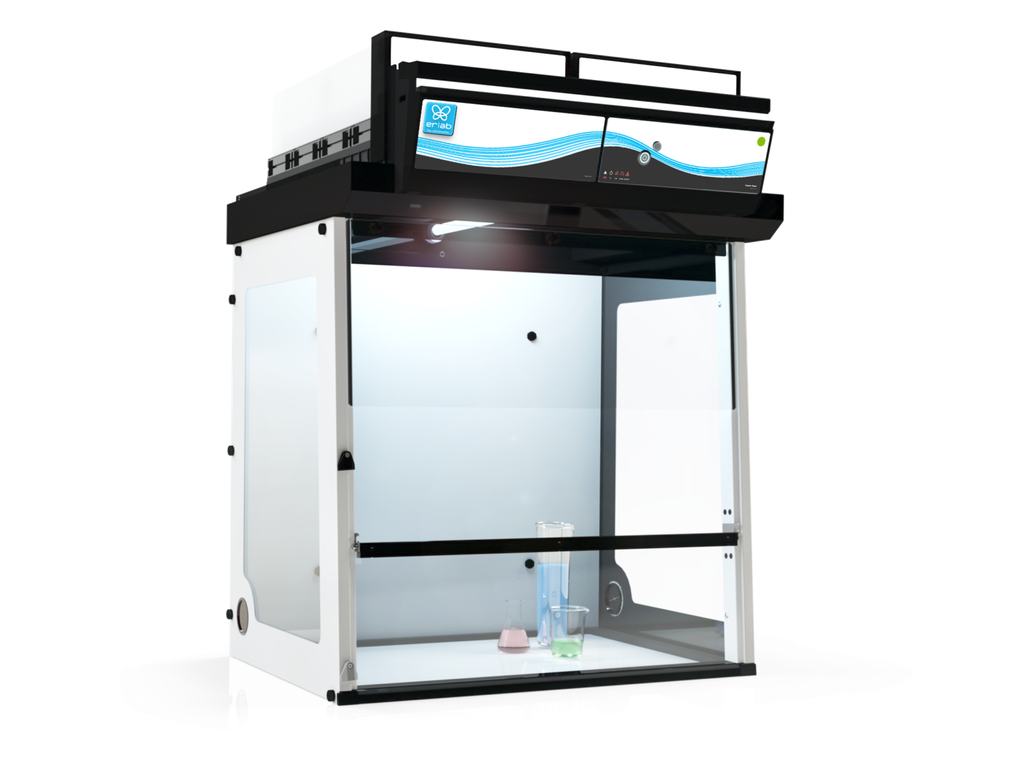

Captair 392 Smart Ductless Fume Hood 1m

Reference: ERL-AA636B00014A21

The Erlab captair Smart 392 is a ductless filtration fume hood designed to protect the user by filtering hazardous vapors produced by your samples. It is quiet, easy to use and fully customizable to your exact needs and laboratory application.

Features:

Reverso type opening
Cut costs of installation, maintenance and operation with a ductless fume hood
With Erlab’s unrivalled SMART technology you can work with complete confidence that you are fully protected from the hazardous fumes and particles produced from your laboratory applications
Simple communication by clear sound and light pulses indicate varied information including faults, run time, air face velocity, filter saturation, ventilation settings, fan failure, etc.
Overall dimensions (WxD) 1005x749 mm. Height is dependent on filter configuration and can be 1340-1515 mm.
Corrosion resistant, electro-galvanized steel coated with an anti-acid polymer
The eGuard App is available for remote control monitoring of the hood, changing the settings, and delivering safety alerts immediately to your devices (mobile phone, tablet and PC)
One filtering column that can be configured to handle liquids, powders or both
Continuous monitoring of air face velocity
105W

Options:

Three different work surface options with built in spill tray (Trespa/phenolic resin, 304L stainless steel or tempered glass)
Can be supplied with a fixed bench or you have the option to use your own bench
The Molecode detection sensor can be supplied in three types (acid, solvents and formaldehyde)
By providing us with your chemical handlings, we can calculate what type of activated carbon or HEPA filters you require and initiate a filter rotation schedule to ensure full protection for years to come
Safety filter in case of main filter saturation
Available with a number of tap options (nitrogen, hot water, cold water, vacuum, natural gas, compressed air, distilled water, un-ionized water, methane, etc.)
Transparent back panel
Internal 240V electrical socket
Waste port
Sink (30x15 cm), location to be indicated by customer
Analis exclusive warranty and service contract available to include annual visits and replacement filters

Power supply:

Standard 230V

Safety Standards

AFNOR NF X 15-211:2009: France - BS 7989: England, DIN 12 927:Germany - EN 1822:1998 (HEPA H14 & ULPA U17 Filters) - CE Marking
