ERWEKA

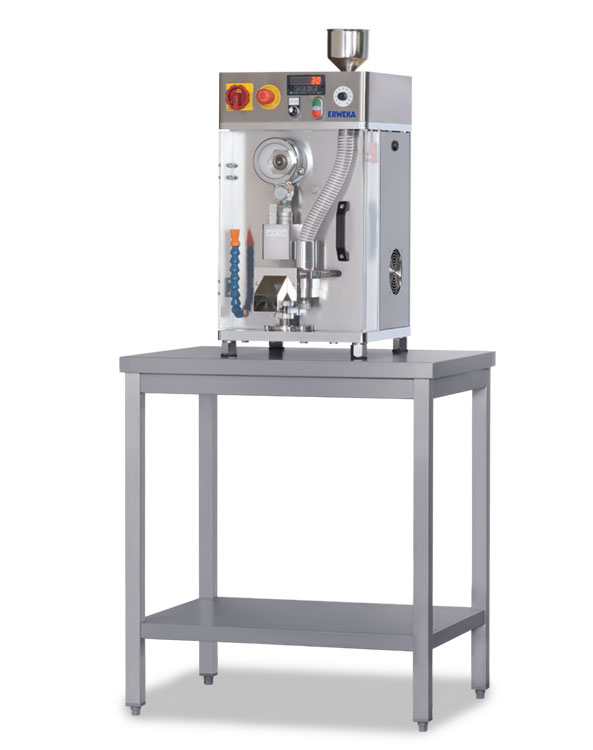

EP-1 single punch tablet press

Reference: ERW-17744

The EP-1 is the ideal desktop tablet press for R&D purposes. EP-1 single punch tablet press punch diameter up to 20 mm, up to 3 tons compression force, up to 17 mm filling depth, maximum 4.000 strokes/h throughput.

All components are either covered with hard chrome, or made of stainless steel AISI 304 or acrylic glass for the front door. Frame parts (plates) are made of 1.0332 StW22 and are bright chrome-plated.

Request more information

Technical information

Press speed infinitely variable
Max. tablet diameter 20 mm
Max. filling depth 17 mm
Max. compression force 3 t
Dimensions press 425/385/695 mm (L/W/H)
Max. tablet output 4.000 tablets/hour
Net weight 135 kg
Dimensions with attachment parts 503/408/797 mm (L/W/H)
Power supply 240V -15%+10%/50-60Hz
Electrical load 2.2 kVA
