ESCO LIFE SCIENCES

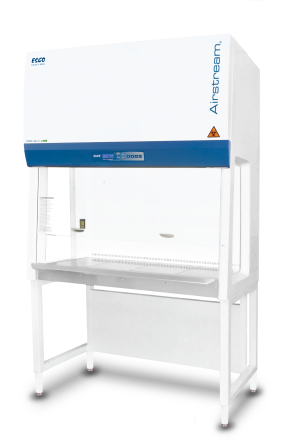

AC2-4E8 Airstream® Class II, biological safety cabinet (E-Series), 1.2m

Reference: ESC-2010621

https://www.analis.com/web/image/product.template/3387/image_1920?unique=9c80963

The Esco Airstream® Gen 3 Class II Biological Safety Cabinet (AC2) is an effective solution in providing operator, product and environmental protection. It also features stable and self-compensating airflow, despite building voltage fluctuations & filter loading. Certified to EN 12469, Esco Airstream® Class II Biological Safety Cabinet also has antimicrobial coating on all its external and internal painted surfaces for improved safety.

The AC2- E series has tempered glass sidewalls that increases visibility and prevents the operator from experiencing a ""boxed-in"" feeling. This unit is also equipped with multi-piece, autoclavable work tray for easy cleaning process.

    This combination does not exist.

    AC2-4E8 Airstream® Class II, biological safety cabinet (E-Series), 1.2m

    Technical information

    SectionSpecifications
    A. General Construction
    External Dimensions (W x D x H)Without Base stand: 1340 x 810 x 1400 mm (52.8” x 32.0” x 55.1”)
    With Optional Base stand 711 mm (28”): 1340 x 810 x 2111 mm (52.8” x 32.0” x 83.1”)
    Internal Work Area (W x D x H)1220 x 580 x 660 mm (48.0” x 22.8” x 26.0”)
    Area: 0.56 m² (6.1 ft²)
    Working Opening190 mm (7.5”)
    MaterialMain body: 1.2 mm (0.05”) 18-gauge electro-galvanized steel with white oven-baked epoxy-polyester anti-microbial powder-coated finish
    Work Zone: Abrasion and corrosion-resistant 304 grade, 1.5 mm 16-gauge stainless steel with 4B finish
    Side walls: UV-absorbing tempered glass, 5 mm (0.2”), colorless and transparent
    ISOCIDE™ Antimicrobial Powder Coating
    Weight230 kg (507 lbs) (Excluding optional stand)
    B. Blower and Filtration
    BlowerOne Direct Current Electronically Commutated Motor (DC ECM)
    Low heat and low energy consumption, providing 70% more energy savings
    Auto-compensating feature adjusts blower speed to maintain airflow in case of filter loading
    FiltrationULPA / H14 filter with 99.999% efficiency at 0.3-0.1 μm
    Airflow Velocity (Inflow)0.45 m/s (90 fpm)
    Air QualityISO 14644-1 Class 3
    C. Control Panel and Electrical
    ControllerSentinel™ Gold Microprocessor Controller
    Four-line LCD display
    Soft touch keys for Blower, Light, and UV lamp with LED indicator
    QuickStart Mode and Standby Mode
    UV timer
    Audible and visual alarms
    Electrical RequirementsPower Rating: 220-240 V AC 50/60 Hz, 1 Ø
    Nominal Power Consumption: 160 W
    Heat Dissipation: 580 BTU/h
    LightingFluorescent lamp intensity: 1404 Lux
    Optional UV lamp (253.7 nm)
    D. Ergonomics
    ServiceabilityAll electrical components located at the back of the front panel
    Control Panel LocationCentered and angled-down for ergonomic use
    Noise Emission58.7 dBA (NSF/ANSI 49); 53.5 dBA (EN12469)
    Additional ErgonomicsOptional ergonomic footrest and lab chair
    Angled arm rest for comfort
    Easy-to-reach electrical outlets at sides
    Easy-to-clean coved corners
    Easy-to-lift autoclavable multi-piece work tray with large tray handles
    E. Accessories
    Additional FeaturesSupport stand (Leveling feet or Caster wheels or Telescoping)
    Electrical outlets
    UV lamp
    Service fixtures (Gas, water, etc.)
    IV Bars
    Exhaust accessories (Air-tight damper, thimble exhaust collar, anti-blowback valve, tri-safe exhaust collar with alarm)
    Air-tight cable port
    Footrest
    Lab chair
    PVC arm rest
    Pre-filter
