ESCO LIFE SCIENCES

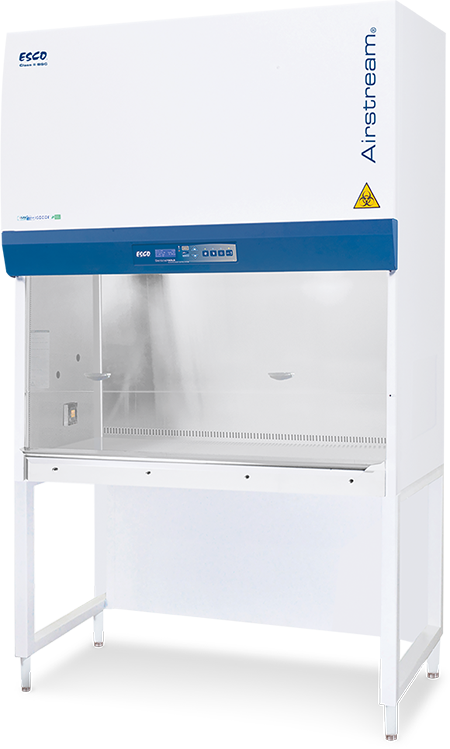

AC2-4S8 Airstream® ClassII, Biological Safety Cabinet (S-Series), 1.2m

Reference: ESC-2010711

https://www.analis.com/web/image/product.template/3533/image_1920?unique=4679f60

The Esco Airstream® Gen 3 Class II Biological Safety Cabinet (AC2) is an effective solution in providing operator, product and environmental protection. It also features stable and self-compensating airflow, despite building voltage fluctuations & filter loading. Certified to EN 12469, Esco Airstream® Class II Biological Safety Cabinet also has antimicrobial coating on all its external and internal painted surfaces for improved safety.

The AC2- S series Class II Biosafety cabinet features a one-piece stainless steel with coved corners for cleanability. The side capture zones and negative pressure side walls optimize containment.

    This combination does not exist.

    Technical information

    SectionDetails
    A. General Construction
    External Dimensions- Without Base stand: 1340 x 810 x 1400 mm (52.8” x 32.0” x 55.1”)
    - With Optional Base stand 711 mm (28”): 1340 x 810 x 2111 mm (52.8” x 32.0” x 83.1”)
    Internal Work Area Dimensions- 1220 x 580 x 660 mm (48.0” x 22.8” x 26.0”)
    - Area: 0.56 m² (6.1 ft²)
    Working Opening190 mm (7.5”)
    Material- Main body: 1.2 mm (0.05”) 18-gauge electro-galvanized steel with white oven-baked epoxy-polyester anti-microbial powder coated finish
    - Work Zone: Abrasion and corrosion-resistant 304 grade, 1.5 mm 16-gauge stainless steel with 4B finish
    - Side walls: 1.5 mm (0.06”) 16 gauge stainless steel, type 304, with 4B finish
    - ISOCIDE™ Antimicrobial Powder coating
    Weight230 kg (507 lbs) (Excluding optional stand)
    B. Blower and Filtration
    BlowerEquipped with one Direct Current Electronically Commutated Motor (DC ECM)
    - Low heat and low energy consumption offering 70% more energy savings
    Auto-compensating featureAdjusts blower speed to maintain optimum airflow in case of filter loading
    FilterUltra-low Particulate Air (ULPA) / H14 filter with 99.999% efficiency at 0.3-0.1 μm
    Airflow VelocityAverage inflow velocity of 0.45 m/s (90 fpm)
    Air QualityISO 14644-1 Class 3
    C. Control Panel and Electrical
    ControllerSentinel™ Gold Microprocessor Controller
    - Four-line LCD display
    - Soft touch keys for Blower, Light, and UV lamp with LED indicator
    ModesQuickStart Mode and Standby Mode
    TimerUV timer
    AlarmsAudible and visual alarms
    Electrical RequirementsPower rating: 220-240 V AC 50/60 Hz, 1 Ø
    Power Consumption160 W
    Heat Dissipation580 BTU/h
    LightingFluorescent lamp intensity: 1404 Lux
    Optional UV Lamp253.7 nm
    D. Ergonomics
    ServicingEasy-to-service, all electrical components located at the back of the front panel
    Control PanelCentered and angled-down location of the control panel
    Noise EmissionLow noise: 58.7 dBA (NSF/ANSI 49); 53.5 dBA (EN12469)
    Optional FeaturesErgonomic footrest and lab chair
    Arm RestAngled arm rest for comfortable working position
    Electrical OutletsEasy-to-reach outlets located at the sides of the cabinet
    Work TraySpill-containing single-piece work tray with large tray handles
    E. AccessoriesSupport stand (Leveling feet or Caster wheels or Telescoping), Electrical Outlets, UV lamp, Service fixtures (Gas, water, etc.), IV Bars, Exhaust accessories (Air-tight damper, thimble exhaust collar, anti-blowback valve, tri-safe exhaust collar with alarm), Air-tight cable port, Footrest, Lab Chair, PVC arm rest, Pre-filter
