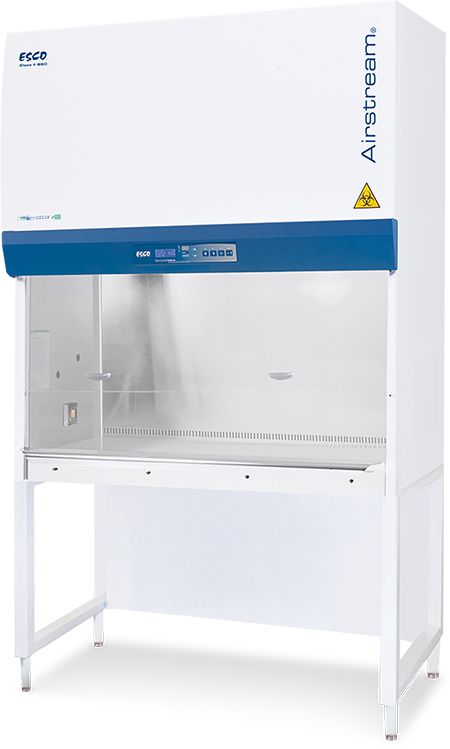

AC2-6S8 Airstream® ClassII, Biological Safety Cabinet (S-Series), 1.8m

Reference: ESC-2010722

The Esco Airstream® Gen 3 Class II Biological Safety Cabinet (AC2) is an effective solution in providing operator, product and environmental protection. It also features stable and self-compensating airflow, despite building voltage fluctuations & filter loading. Certified to EN 12469, Esco Airstream® Class II Biological Safety Cabinet also has antimicrobial coating on all its external and internal painted surfaces for improved safety.

The AC2- S series Class II Biosafety cabinet features a one-piece stainless steel with coved corners for cleanability. The side capture zones and negative pressure side walls optimize containment.

Request more information

AC2-6S8 Airstream® ClassII, Biological Safety Cabinet (S-Series), 1.8m

Technical information

Category	Details
A. General Construction	External Dimensions (Width x Depth x Height): - Without Base stand: 1950 x 810 x 1400 mm (76.8” x 32.0” x 55.1”) - With Optional Base stand 711 mm (28”): 1950 x 810 x 2111 mm (76.8” x 32.0” x 83.1”) Internal Work Area Dimensions (Width x Depth x Height): - 1830 x 580 x 660 mm (72.0” x 22.8” x 26.0”) - Area: 0.86 m² (9.2 ft²) Working Opening: - 190 mm (7.5”) Material: - Main body: 1.2 mm (0.05”) 18-gauge electro-galvanized steel with white oven-baked epoxy-polyester anti-microbial powder coated finish - Work Zone: Abrasion and corrosion resistant 304 grade, 1.5 mm 16-gauge stainless steel with 4B finish - Side walls: 1.5 mm (0.06”) 16 gauge stainless steel, type 304, with 4B finish - ISOCIDE™ Antimicrobial Powder coating Weight: - 346 kg (763 lbs) (Excluding optional stand)
B. Blower and Filtration	Blower: - Equipped with one Direct current Electronically Commutated Motor (DC ECM) - Low heat and low energy consumption offering 70% more energy savings - Auto-compensating feature that adjusts blower speed in order to maintain the optimum airflow in case of filter loading. Filter: - Ultra-low Particulate Air (ULPA) / H14 filter with 99.999% efficiency at 0.3-0.1 μm - Average airflow velocity (Inflow) of 0.45 m/s (90 fpm) - ISO 14644-1 Class 3 air quality
C. Control Panel and Electrical	Controller: - Sentinel™ Gold Microprocessor Controller - Four-line LCD display - Soft touch keys for Blower, Light, and UV lamp with LED indicator - QuickStart Mode and Standby Mode - UV timer - Audible and visual alarms Electrical Requirements: - Power rating: 230 V AC 50/60 Hz, 1 Ø - Nominal Power Consumption: 283 W - Heat dissipation: 966 BTU/h Lighting: - Fluorescent lamp intensity: 1384 Lux - Optional UV lamp (253.7 nm)
D. Ergonomics	Ease of Service: - All electrical components located at the back of the front panel Control Panel: - Centered and angled-down location Noise Emission: - Low noise emission of 58.2 dBA (NSF/ANSI 49); 53.6 dBA (EN12469) Comfort Features: - Optional ergonomic footrest and lab chair - Angled arm rest for comfortable working position - Easy-to-reach electrical outlets located at the sides of the cabinet - Easy-to-clean coved corners in the working area and smoothly finished corners of the drain pan - Spill-containing single-piece work tray with large tray handles
E. Accessories	Included Accessories: - Support stand (Leveling feet or Caster wheels or Telescoping) - Electrical Outlets - UV lamp - Service fixtures (Gas, water etc.) - IV Bars - Exhaust accessories (Air-tight damper, thimble exhaust collar, anti-blowback valve, tri-safe exhaust collar with alarm) - Air-tight cable port - Footrest - Lab Chair - PVC arm rest - Pre-filter
