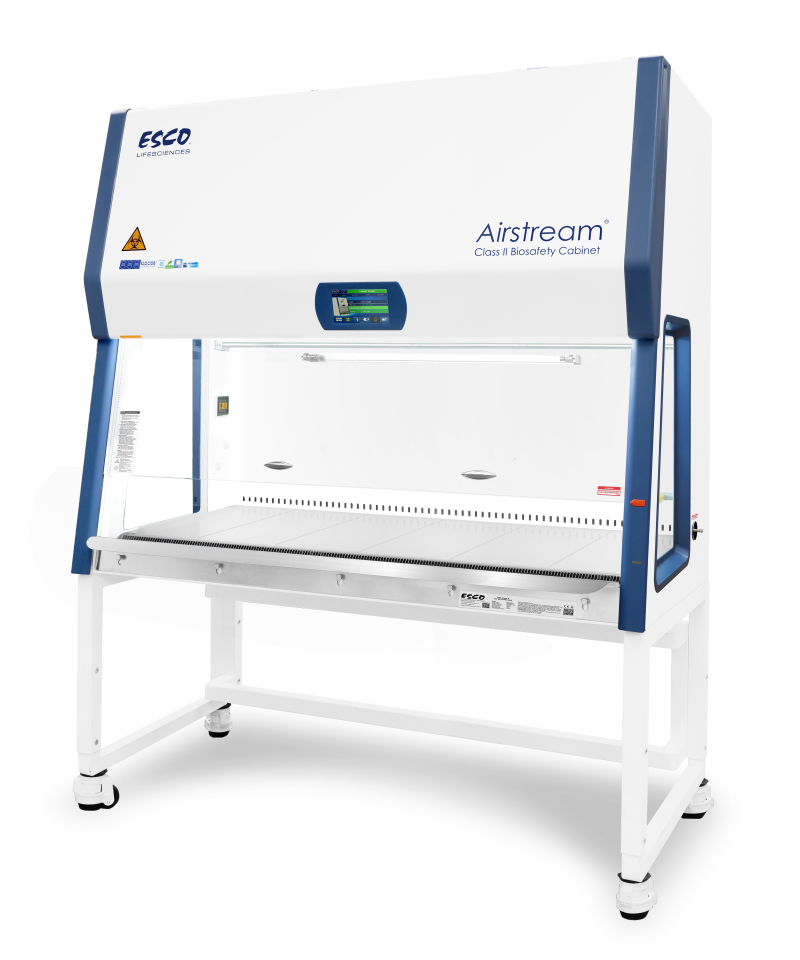

AC2-6E8 G4 Airstream® G4 class II A2 biological safety cabinet, 1.8m

Reference: ESC-2011484

https://www.analis.com/web/image/product.template/128178/image_1920?unique=9c80963

Introducing the Airstream® (E-series) G4 Class II Biosafety Cabinet

The Airstream® (E-series) G4 Biosafety Cabinet sets a new standard in laboratory safety and efficiency. Featuring the intuitive Centurion Touchscreen Controller, this EN12469-certified BSC offers seamless operation with a convenient standby mode, activated effortlessly by the adjustable standby height.

Designed with ergonomics in mind, it boasts a spacious work zone illuminated by dimmable LED lights, delivering industry-leading brightness. A durable stainless-steel armrest ensures comfort and support during extended use. With expanded model options, the Airstream® (E-series) G4 offers both stainless steel (S-series) and glass (E-series) side wall variants, providing versatile choices for any laboratory setup.

Beyond its advanced performance, the Airstream® G4 integrates eco-friendly features, enhancing sustainability while maintaining superior safety standards. Compact yet powerful, this biosafety cabinet is the ideal solution for research labs and scientific facilities, offering unmatched convenience and protection.

Key Features

✓ Certified for 175 mm sash opening ✓ Dimmable LED lighting

✓ Centurion Touchscreen Controller

✓ Equipped with single ECM motor for up to 70% energy savings

✓ Advance Filtration System

✓ ISO Class 3 Work zone

✓ ISOCIDE™ Antimicrobial Powder coating

✓ Angled front (10°) to optimize user comfort and ergonomics.

✓ Dynamic Chamber™ prevents contaminants from escaping.

✓ BMS connection through Voltage Free Relay Contacts

✓ Serial interface port

    This combination does not exist.

    AC2-6E8 G4 Airstream® G4 class II A2 biological safety cabinet, 1.8m

    Technical information

    CategorySpecification
    A. General Construction
    External Dimensions (w/o Base)1950 x 850 x 1400 mm (76.8" x 33.5" x 55.1")
    Internal Work Area Dimensions1830 x 610 x 650 mm (72.0" x 24.0" x 25.6")
    Working Area0.9 m² (9.8 sq.ft)
    Sash OpeningWorking: 175 mm (6.9”), Maximum: 490 mm (19.3”)
    MaterialMain Body: Electro-galvanized steel, 1.5 mm (0.06") / 16 gauge; Work Zone: Stainless steel, 1.5 mm (0.06") / 16 gauge; Sash Glass: 6 mm UV-absorbing tempered glass; Side Walls: 6 mm UV-absorbing tempered glass
    WeightCabinet Net: 338 kg (745 lbs), Cabinet + Support Stand Shipping Weight: 407 kg (897 lbs)
    B. Blower and Filtration
    Blower TypeDirect Current Electronically Commutated Motor (ECM)
    Energy Efficiency70% energy savings, auto-compensating blower speed for filter loading
    Filtration Efficiency>99.999% for particle size 0.1-0.3 microns (ULPA, ISO Class 3 air quality)
    Filtration StandardsULPA as per IEST-RP-CC001.3 in USA, H14 as per EN 1822 in EU
    Airflow VelocityInflow: 0.45 ± 0.025 m/s (90 ± 5 fpm), Downflow: 0.32 ± 0.025 m/s (63 ± 5 fpm)
    Key Features
    CertificationCertified for 175 mm sash opening
    LightingDimmable LED lighting
    ControllerCenturion Touchscreen Controller with 7” LCD Display, QuickStart, Standby Mode
    FiltrationAdvanced filtration system, ISO Class 3 Work zone
    Antimicrobial CoatingISOCIDE™ Antimicrobial Powder Coating
    User Comfort10° angled front, ergonomic features, angled armrest
    Dynamic Chamber™Prevents contaminants from escaping
    ConnectivityBMS connection, Voltage Free Relay Contacts, Serial interface port
    C. Control Panel and Electrical
    Controller TypeCenturion Touchscreen, 7” LCD Display
    Electrical Requirements220-240 VAC, 50/60 Hz; Nominal Power Consumption: 320 W; Heat Load: 1092 BTU/hr
    Lighting Intensity>1000 Lux (>93 foot-candles); Optional UV Lamp (253.7 nm)
    D. Ergonomics
    Control PanelCentered, angled-down for easy reach and viewing
    Comfort Features10° angle for glare reduction, angled armrest, ergonomic footrest, lab chair
    Noise Emission55 dBA measured in anechoic chamber
    Electrical Outlets1 outlet on each side, total of 5 amps
    E. Safety
    AlarmsAirflow alarm, sash alarms (visual & audible for safety height deviation)
    Glass SafetyUV-absorbing tempered glass, UV safety interlock
    F. Accessories
    Available AccessoriesFixed support stand with 2-in-1 castor wheels, UV lamp, service fixtures, footrest, lab chair, armrest, pre-filter
    DisclaimerTechnical specifications may be subject to changes without notice
