ESCO LIFE SCIENCES

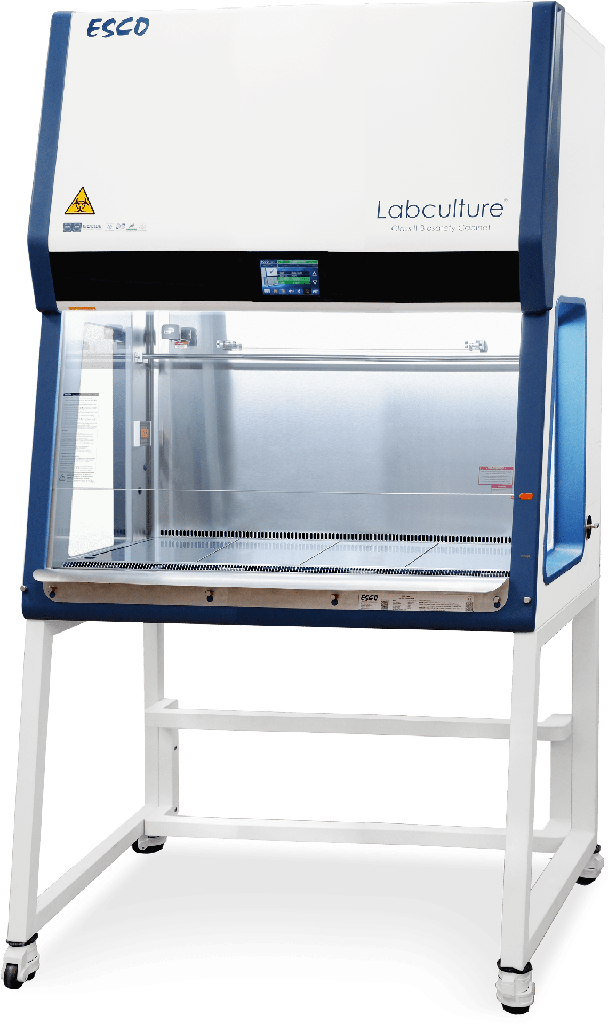

LA2-3E8-EU G4 Labculture® Biological Safety Cabinet, Class II A2, 0.9M/3'
Reference: ESC-2011742
https://www.analis.com/shop/esc-2011742-la2-3e8-eu-g4-labculture-r-biological-safety-cabinet-class-ii-a2-0-9m-3-93875 https://www.analis.com/web/image/product.template/93875/image_1920?unique=5dc1305Labculture® Plus (E-Series) G4 Class II A2 Biological Safety Cabinet, Model LA2-3E8-EU G4.
The new BSC with Centurion Touchscreen controller is EN 12469-certified and now available in 200 mm (8") opening, with standby height that easily activates standby mode.
Labculture® Plus G4 (LA2-E-EU G4) has an ergonomic work zone comprised of bright illumination using an industry-leading dimmable LED lamp combined with a raised, durable, stainless-steel armrest and an autoclavable, multi-piece work zone devised for optimum work comfort.
Key Features:
- Centurion Touchscreen Controller
- Dimmable LED
- Ergonomic Features
- Tiltable Sash for easy cleaning of the inner sash glass
- USB Port and Remote Modbus
- Cabinet Construction of E-Series: (*1)
- Tempered Glass Side walls increase visibility and prevent the operator from experiencing a "boxed-in" feeling
- Multi-piece work tray, autoclavable
- Green Product with energy-efficient Dual DC ECM (up to 70% energy savings)
- ULPA Filter
- Isocide™ Antimicrobial Powder Coating
(*1) In addition to this E series, other models are also available with single-piece work trays and stainless steel sidewalls in S series.
Technical information
Specifications
- 200 mm (8”) sash opening
- Dimmable LED lighting system
- Centurion touchscreen controller
- Tiltable sash for easy glass cleaning
- Standby height that activates standby mode sustains ISO Class 3 work zone as the fan runs at half speed
- USB port to relay operational parameters to Building Management System (BMS)
- Remote Modbus
- Default cable port
- Optional 21 CFR Compliance
- E-Series: Multi-piece work tray, glass sidewalls
- Motorized window
- Equipped with DC ECM blower for up to 70% energy savings
- Low power consumption
- Available width sizes: 3 ft, 4 ft, 5 ft, and 6 ft
LA2-3E8-EU G4 Model
- Nominal Size: 3 ft (0.9 meter),
- External Dimensions (W x D x H) Without Optional Base Stand: 1035 x 858 x 1570 mm
Models
| Item Code | Model Code | Description |
|---|---|---|
| E-Series (Tempered Glass side walls, multi-piece work tray) | ||
| 2011742 | LA2-3E8-EU G4 | Labculture® Plus G4 Class II Biological Safety Cabinet, 3ft/0.9m, 220-240 VAC, 50/60 Hz |
| 2011743 | LA2-4E8-EU G4 | Labculture® Plus G4 Class II Biological Safety Cabinet, 4ft/1.2m, 220-240 VAC, 50/60 Hz |
| 2011744 | LA2-5E8-EU G4 | Labculture® Plus G4 Class II Biological Safety Cabinet, 5ft/1.5m, 220-240 VAC, 50/60 Hz |
| 2011745 | LA2-6E8-EU G4 | Labculture® Plus G4 Class II Biological Safety Cabinet, 6ft/1.8m, 220-240 VAC, 50/60 Hz |
Accessories
| Item Code | Model Code | Description |
|---|---|---|
| 5170251 | UV-15A-L | UV Lamp for 3ft Cabinets |
| 5170255 | UV-30A-L | UV Lamp for 4ft, 5ft, 6ft Cabinets |
| EO _ | Electrical Outlet (Direct Mounted) x 2 | |
| IV Bars | ||
| 5170499 | IV-910 | IV Bar 910 mm |
| 5170231 | IV-1215 | IV Bar 1215 mm |
| 5170500 | IV-1520 | IV Bar 1520 mm |
| 5170501 | IV-1825 | IV Bar 1825 mm |
| Support Stands | ||
| 5131343 | SPEU-3A0 | Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 3ft cabinets |
| 5131344 | SPEU-4A0 | Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 4ft cabinets |
| 5131455 | SPEU-5A0 | Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 5ft cabinets |
| 5131456 | SPEU-6A0 | Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 6ft cabinets |
| 5170457 | SPEU-3B0 | Support Stand w/ Castors and Leveling feet (36” / 914 mm height) for 3ft cabinets |
| 5170458 | SPEU-4B0 | Support Stand w/ Castors and Leveling feet (36” / 914 mm height) for 4ft cabinets |
| 5170459 | SPEU-5B0 | Support Stand w/ Castors and Leveling feet (36” / 914 mm height) for 5ft cabinets |
| 5170460 | SPEU-6B0 | Support Stand w/ Castors and Leveling feet (36” / 914 mm height) for 6ft cabinets |
| Service Fixtures | ||
| 5170410 | SF-1G20 | European Style Service Fixture with 20mm Thread Length - Gas |
| 5170457 | SF-1V20 | European Style Service Fixture with 20mm Thread Length - Vacuum |
| 5170502 | SF-1A20 | European Style Service Fixture with 20mm Thread Length - Air |
| 5170503 | SF-1N20 | European Style Service Fixture with 20mm Thread Length - Nitrogen |
| 5170458 | SF-1W20 | European Style Service Fixture with 20mm Thread Length - Water |
| 5170504 | SF-2U22 | American Style Service Fixture with 22mm Thread Length - Universal |
| 5170026 | COPPER PIPING | Copper Piping for Service Fixture - Must be Factory Installed |
| 5070086 | SOLENOID GAS VALVE 230 VAC | Solenoid Gas Valve |
| Exhaust Collars | ||
| 5171186 | ECO-LA2EU-3FT G4 | Thimble Exhaust Collar for LA2-3-EU G4 |
| 5171187 | ECO-LA2EU-4FT G4 | Thimble Exhaust Collar for LA2-4-EU G4 |
| 5171188 | ECO-LA2EU-5FT G4 | Thimble Exhaust Collar for LA2-5-EU G4 |
| 5171189 | ECO-LA2EU-6FT G4 | Thimble Exhaust Collar for LA2-6-EU G4 |
| Exhaust Accessories | ||
| 5170352 | ABBV-10P | Anti-blowback Valve 10 inches |
| 5170354 | ABBV-10S | Anti-blowback Valve 10 inches (304 Stainless Steel) |
| 5170104 | B2-DAMPER | Manual Volumetric Exhaust Damper |
| VHP Ports | ||
| 5075042 | VHP-OUT TOP BOX LA2-3-EU G4 | VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-3-EU G4 |
| 5075043 | VHP-OUT TOP BOX LA2-4-EU G4 | VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-4-EU G4 |
| 5075044 | VHP-OUT TOP BOX LA2-5-EU G4 | VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-5-EU G4 |
| 5075045 | VHP-OUT TOP BOX LA2-6-EU G4 | VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-6-EU G4 |
| Pre-Filters | ||
| 5090061 | PF-41 | Prefilter, 895x125x6mm, LA2-EU 3ft G4 |
| 5090062 | PF-42 | Prefilter, 1200x125x6mm, LA2-EU 4ft G4 |
| 5090063 | PF-43 | Prefilter, 1505x125x6mm, LA2-EU 5ft G4 |
| 5090064 | PF-44 | Prefilter, 1810x125x6mm, LA2-EU 6ft G4 |
| Others | ||
| 5170127 | MEWREST | Arm Rest Padding |
| 5170073 | FT-REST | Foot Rest |
| 9010179 | IQ/OQ Protocol |
