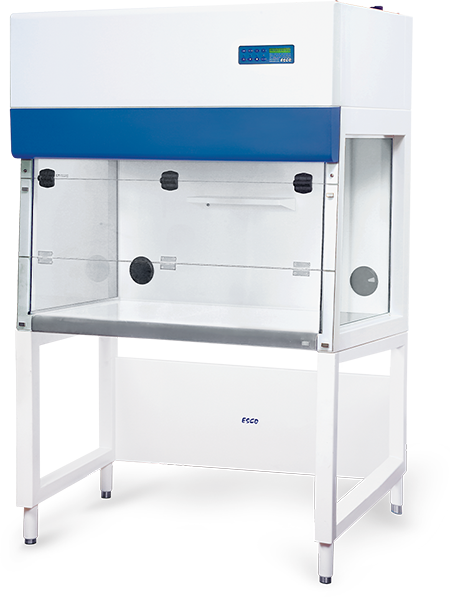

PCR-3A1 Airstream® Polymerase Chain Reaction Cabinet, 0.9m

Reference: ESC-2150001

Polymerase Chain Reaction is fundamental to almost all applications requiring a high copy number of starting material and is used in all laboratories working with DNA and RNA. Because of the high copy number generated during PCR, it is essential to prevent possible contamination of the PCR .

Esco Airstream® PCR Cabinet (PCR) is equipped with HEPA-filtered laminar flow, airflow monitoring, UV lamp & prefilter change alarm to provide a sterile environment for reagent and sample preparation during PCR mastermix preparation.

Request more information

PCR-3A1 Airstream® Polymerase Chain Reaction Cabinet, 0.9m

Technical information

GENERAL CONSTRUCTION
Nominal Size	0.9 meter (3’)
Main Body	Electrogalvanized Steel with white oven-baked epoxy-polyester powder coated finish, Coated with Esco Isocide™ antimicrobial coating
Workzone	1.2 mm (0.05”) 18-gauge stainless steel grade 304
Side walls	UV-absorbing tempered glass, 5 mm, colourless transparent
External dimensions (L x W x H)	1035 x 617 x 950 mm (40.7" x 24.3" x 37.4")
Internal dimensions (L x W x H)	935 x 538 x 550 mm (36.8" x 21.2" x 21.7")
Net Weight	99 kg (218 lbs)
BLOWER AND FILTRATION
Laminar Airflow Velocity	0.30 m/s (60 fpm)
Motor	Direct current Electronically Commutated Motor (DC ECM)
Air Quality	ISO 14644-1 Class 3
HEPA Filter	99.99% efficiency at 0.3 µm
Disposable Fibres	85% arrestance
INTERFACE AND ELECTRICAL
Interface	Sentinel™ Silver microprocessor Control System
Power Rating	220-230 VAC, 50 Hz, 1 Ø
Nominal Power	135 W
Heat Dissipation	461 BTU/h
Lighting	Fluorescent lamp intensity: 975 Lux
UV Decontamination	253.7 nm 15W UV lamp
ERGONOMICS
Sound Emission	<56 dBA
Design	Angled front, rounded work surface front edge, glass sides
OPTIONS AND ACCESSORIES
Accessories	Hinged Front Cover, UV Lamp, Support Stand with Caster Wheels, Support Stand with Levelling Feet, and Telescoping Support Stand with Levelling Feet
