ESCO LIFE SCIENCES

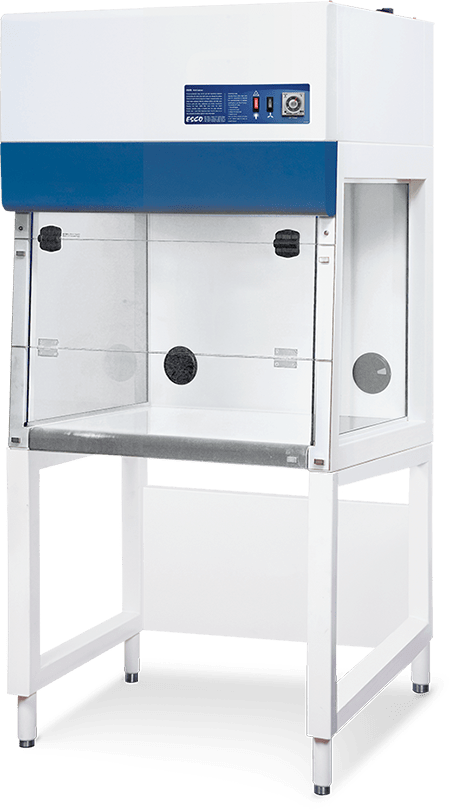

SCR-2A1 Streamline® polymerase chain reaction cabinet, 0.6m
Reference: ESC-2150009
https://www.analis.com/shop/esc-2150009-scr-2a1-streamline-r-polymerase-chain-reaction-cabinet-0-6m-2423 https://www.analis.com/web/image/product.template/2423/image_1920?unique=ffecbdfIn practice, all polymerase chain reaction (PCR) procedures are conducted in the same room. Under these circumstances, PCR Cabinets are used for reagent preparation and sample preparation to minimize contamination. Because of the high copy number generated during PCR, it is essential to prevent possible contamination of the PCR.
Esco Streamline® PCR Cabinet (SCR) provides a compact and low footprint environment for handling reagents such as PCR master mixes. It is equipped with simple rocker switches to control blower, light, and UV. The HEPA-filtered air guarantees a contaminant-free environment for reliable PCR results.
Technical information
GENERAL CONSTRUCTION | |
Nominal Size | 0.6 meter (2’) |
Main Body | Electrogalvanized Steel with white oven-baked epoxy-polyester powder coated finish, Coated with Esco Isocide™ antimicrobial coating |
Workzone | 1.2 mm (0.05”) 18-gauge stainless steel grade 304 |
Side walls | UV-absorbing tempered glass, 5 mm, colourless transparent |
External dimensions (L x W x H) | 730 x 617 x 950 mm (28.7” x 24.3” x 37.4”) |
Internal dimensions (L x W x H) | 630 x 538 x 550 mm (24.8” x 21.2” x 21.7”) |
Net Weight | 76.5 kg (169 lbs) |
BLOWER AND FILTRATION | |
Laminar Airflow Velocity | 0.30 m/s (60 fpm) |
Motor | Direct current Electronically Commutated Motor (DC ECM) |
Air Quality | ISO 14644-1 Class 3 |
HEPA Filter | 99.99% efficiency at 0.3 µm |
Disposable Fibres | 85% arrestance |
INTERFACE AND ELECTRICAL | |
Controller | Rocker switches |
Power Rating | 220-230 VAC, 50 Hz, 1 Ø |
Nominal Power | 136 W |
Heat Dissipation | 464 BTU/h |
Lighting | Fluorescent lamp intensity: 800 Lux |
UV Decontamination | 253.7 nm 15W UV lamp |
ERGONOMICS | |
Sound Emission | <63 dBA |
Design | Angled front, rounded work surface front edge, glass sides |
OPTIONS AND ACCESSORIES | |
Accessories | Hinged Front Cover, UV Lamp, Support Stand with Caster Wheels, Support Stand with Levelling Feet, and Telescoping Support Stand with Levelling Feet |
