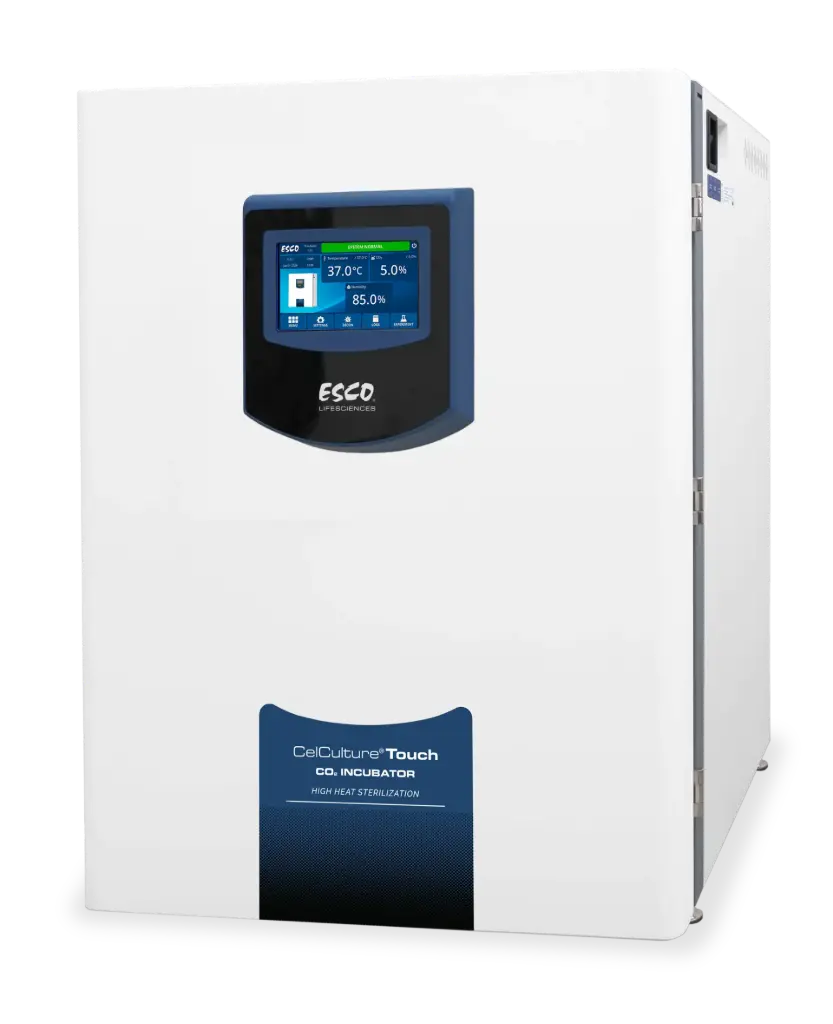

CelCulture® Incubator 170 L, IR Sensor, CO2 Control, ULPA, 220-240 VAC 50/60 Hz

Reference: ESC-2170371

https://www.analis.com/web/image/product.template/98702/image_1920?unique=1d13731

Exceptional purity for your cell cultures

The CelCulture® 170 L incubator combines precision, hygiene, and ease of use. Equipped with an infrared sensor for reliable CO2 control and an integrated ULPA filter, it guarantees air quality equivalent to ISO Class 5 inside the chamber — a guarantee of reproducibility for your experimental results.

Key technical highlights:

  • Ultra-fast environment recovery to ISO Class 5: chamber conditions are restored within just 11 minutes after door closing¹
  • Integrated antimicrobial protection: exterior electrogalvanized steel with Isocide™ coating, eliminating 99.9% of surface bacteria within 24 hours
  • Enhanced gas safety: 0.2µm gas filters on all inlets, ensuring purity of gases injected into the chamber

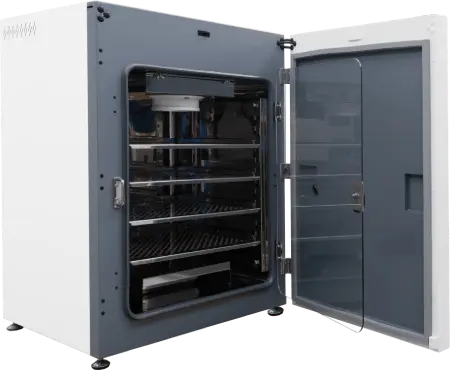

  • Maintenance-friendly design: rounded corner chamber, perforated stainless steel shelves, removable water pan for optimized humidity management
  • Integrated access port as standard — no additional option required

    This combination does not exist.

    Technical information

    Specification Detail
    Usable volume 170 L
    External dimensions (W x D x H) 660 x 700 x 906 mm
    Internal dimensions (W x D x H) 505 x 535 x 633 mm
    Number of shelves (standard/max) 4 / 7
    Max. load per shelf 11 kg
    Control CO2 via infrared (IR) sensor
    Filtration Integrated ULPA filter
    Power supply 220-240 VAC, 50/60 Hz
    Nominal power at 37°C 45 W
    Net weight 109 kg

    ¹ Test conducted at factory under controlled environmental conditions per Esco method, on model CCL-170B-8-TS. Full report available upon request.
