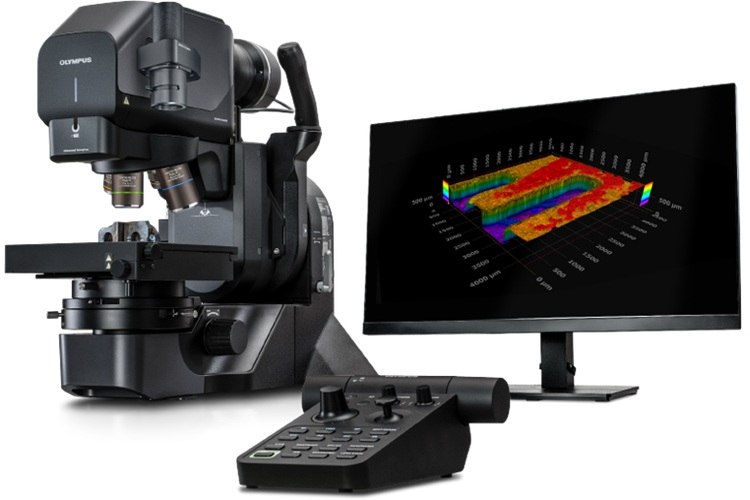

DSX2000 Digital Microscope

Reference: EVI-DSX2000

https://www.analis.com/web/image/product.template/129830/image_1920?unique=910445b

High-Precision Digital Microscope for Quality Control and Research

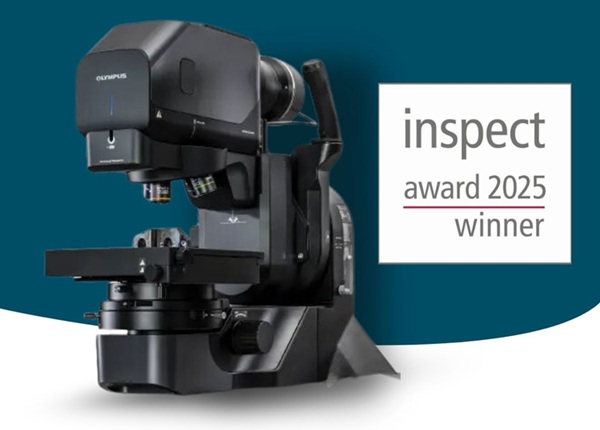

Recently nominated for the 2025 inspect award in Automation + Control, the Olympus / Evident DSX2000 is an all-in-one solution for advanced inspection, measurement, and reporting.

  • Fully motorized system with smart tools and AI-assisted measurements
  • Ultra-high resolution imaging beyond 4K for detecting fine surface details
  • Broad zoom range and extended depth of focus for macro-to-micro views
  • Intuitive, customizable interface for routine tasks or expert workflows
  • Fast, standards-based documentation and reporting

Perfect for electronics, automotive, and materials science QC.
Contact Analis for a tailored quote or on-site demo.

    This combination does not exist.

    Technical information

    Category Specification
    Optical System Telecentric zoom head (motorized or manual sliding nosepiece)
    Zoom Ratio 1X to 10X (motorized)

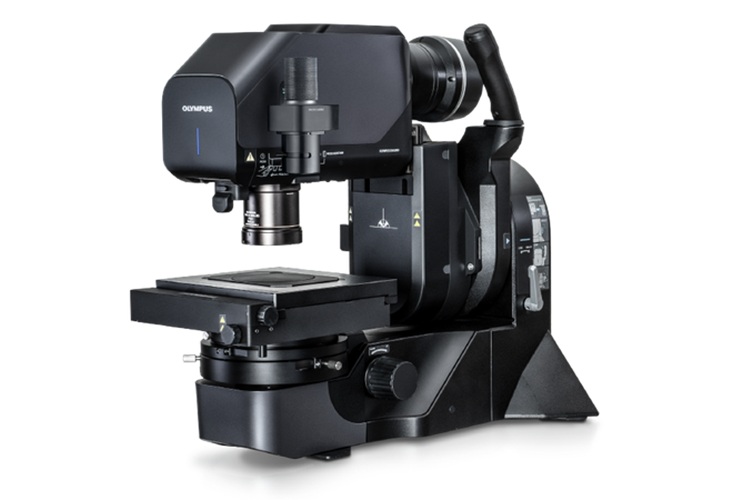

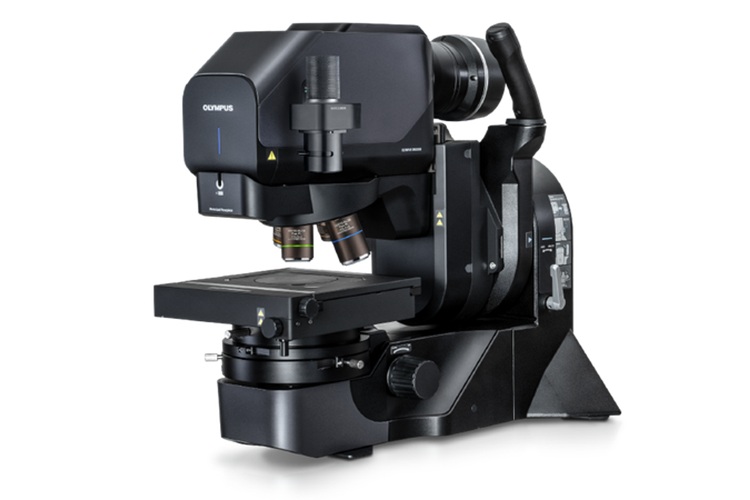

    Objectives Supported Up to 4 on motorized (DSX20-MZH), up to 2 on others
    Observation Modes Brightfield (BF), oblique (OBQ), darkfield (DF), MIX (DF and BF), polarization (PO), differential interference contrast* (DIC), or our unique shaded relief (SR) method.
    *Not available on the SZH model.
    Image Sensor 1.1" 12.37 MP CMOS, global shutter, 60 fps, Peltier cooled
    Resolution Modes Full HD to Ultra Mode (8192 × 6000 px)
    Stage Options Manual and motorized XY; 100×100 mm, up to 200×100 mm
    Sample Size (Z) Max height up to 145 mm depending on lens/frame

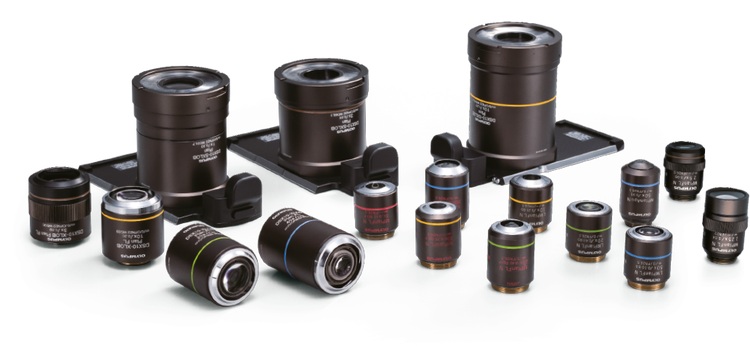

    Magnification Range 21X – 7300X (based on 27” 4K display at 175% scaling)

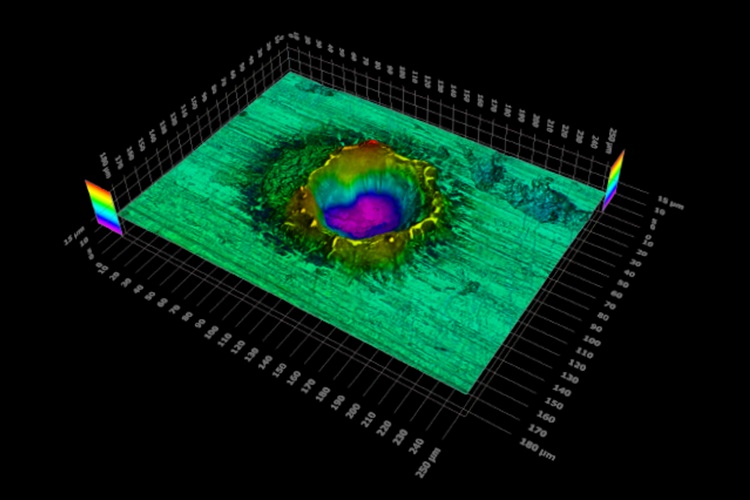

    3D Analysis Yes – height maps, volume, stitching, layer measurement
    Software PRECiV DSX with AI, macro recording, 3D, compliance tools
    Connectivity Microsoft 365 integration, OneDrive saving, network ready
    Power 100–240 V AC, 1.1/0.54 A, 50–60 Hz
    Weight System (frame + stage + display): ~54.7 kg
    Dimensions (DSX20-MZH with RMTS + TF frame) W: 574 mm × D: 620 mm × H: 1500 mm

    Download the full brochure for complete technical specifications and configurations of the DSX2000 digital microscope.
    Contact our local experts for detailed guidance, application support, quotations, or to request a personalized demo.

    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    Brochure EVIDENT DSX2000 EN.pdf
    26 / 03 / 2025
    Download icon Download
