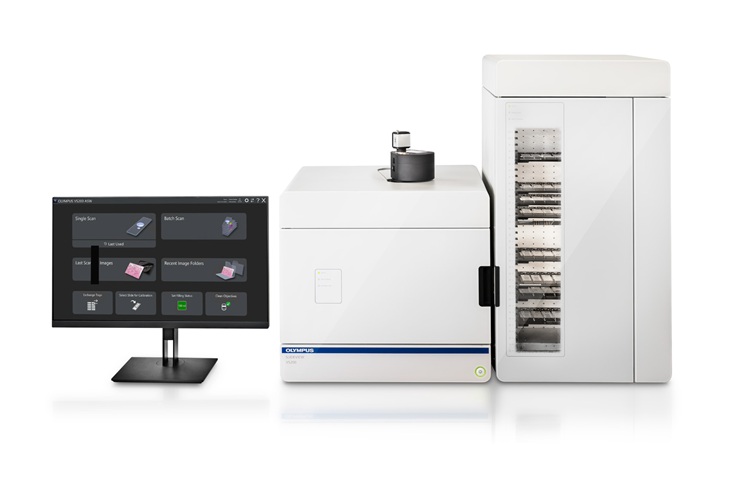

VS200 Research Slide Scanner

Reference: EVI-VS200

Universal Whole Slide Imaging for Research Labs

The VS200 Research Slide Scanner delivers exceptional image quality and scanning efficiency for high-end research, pathology, and life science applications. With advanced optics, AI-assisted workflows, and up to five observation modes, the VS200 supports confident and precise analysis of complex tissue and cell samples. Its scalable design adapts to your lab’s current and future needs.

Applications: Digital pathology, neuroscience, cancer research, organoid imaging, multiplex fluorescence, stem cell analysis.

Key Features at a Glance

Up to 5 imaging modes: Brightfield, darkfield, fluorescence, polarization, phase contrast
AI-assisted scanning: TruAI for automatic cell detection and segmentation
High-throughput: Scan up to 210 slides with multiple tray loader
Multiplex fluorescence support: Co-expression analysis with TruSight Live deblurring
Optional SILA module: Confocal-like imaging via speckle illumination optical sectioning
Flexible slide compatibility: Supports various slide sizes up to 128 × 76.5 mm
Efficient image management: DICOM compatibility and OlyVIA viewer integration

This solution is highly modular to adapt to your research or clinical imaging needs.

SILA Optical Sectioning

The VS200 integrates SILA (Speckle Illumination Acquisition) to remove out-of-focus light and deliver sharp, high-contrast images from thick samples—computed in real-time with no post-processing delay.

Analis offers integration and consultation for digitized pathology workflows.

The SLIDEVIEW DX VS200 is now a CE-marked device under the EU IVDR* for use in clinical diagnostics in Europe. Read more in Evident’s announcement

Request more information

Evident Multiplexed Fluorescent Lung Tissue sample stained with Ultivue PD-L1 kit imaged

Evident Slide Scanner - Human cartilage captured under five imaging techniques - brightfield, darkfield, fluorescence, phase contrast, and polarization

Evident TruAI Deep Learning - Pancreatic tissue analyzed with TruAI neural network segmentation for accurate islet detection

Technical information

Category	Specification
Slide Capacity	Single tray: 6 slides Multiple tray loader: up to 210 slides
Compatible Slide Sizes	26 × 76 mm, 52 × 76 mm, 76 × 102 mm, 102 × 127 mm, 128 × 76.5 mm
Imaging Modes	Brightfield, darkfield, fluorescence, polarization, phase contrast
Objectives (X Line)	2X – 100X incl. oil & silicon immersion (motorized 6-position nosepiece)
Pixel Resolution	0.055 μm/pixel (100X), 0.091 μm (60X), 0.137 μm (40X), 0.548 μm (10X)
Color Camera	2/3” CMOS, 3.45 μm × 3.45 μm pixel size
Focus & Stage	Motorized Z-focus and XY stage with auto control
AI Functions	Automatic detection, barcode reading, focus mapping, TruAI deep learning
Fluorescence Module	Optional with fly-eye lens, TruSight Live deblurring, up to 6-line laser SILA
Scan Time (20X)	Brightfield: ~1.5 min Fluorescence (4 ch): ~6.5 min
Output Formats	VSI, JPEG, TIFF, DICOM
Software	Quick & expert mode, batch scan, priority scan, extended focus imaging (EFI)
Power Supply	100–240V AC, 50/60 Hz, 4A
Dimensions (Base Unit)	W: 530 mm × D: 652.5 mm × H: 885 mm
Weight	Base system: 75 kg Full system with loader: 149 kg
