LABWIT

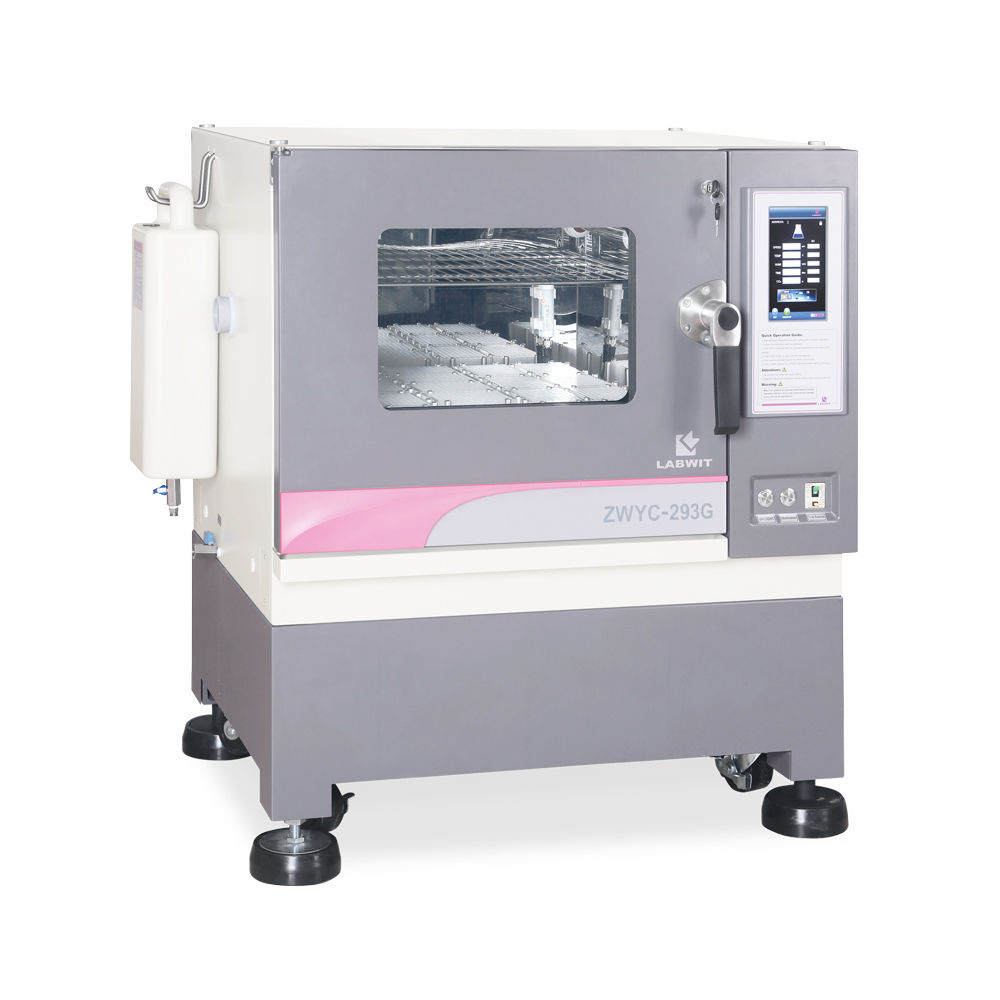

120L Ultra compact shaking incubator, 4-60C
Reference: LAB-ZWYC-293G

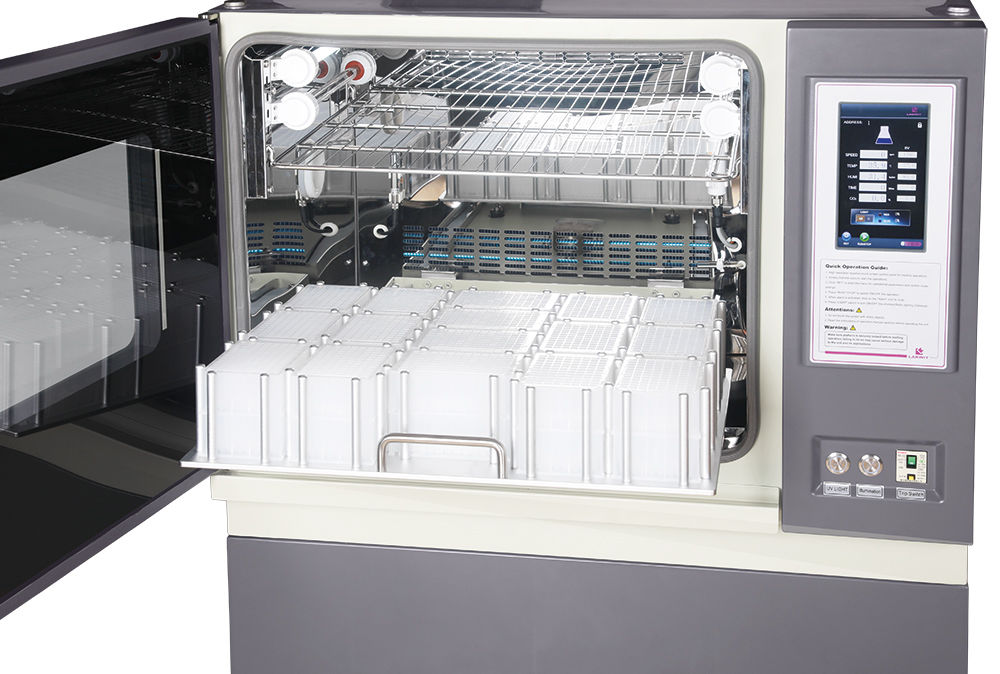

https://www.analis.com/shop/lab-zwyc-293g-120l-ultra-compact-shaking-incubator-4-60c-113436 https://www.analis.com/web/image/product.template/113436/image_1920?unique=60febf2The NEW Ultra ZWYC-293G offers comprehensive solutions for shaking cultivations on small foot print, including active humidity and CO2 control technology, offering exceptional flexibility, allowing for traditional shaking incubations with flasks and tubes, as well as micro-volume high-throughput microbial screening with 96-well plates.
Compact size for all-round applications, optimized controlling for process reliability, secured protections for precious samples, ZWYC-293G looks after all that you care about the most when it comes to shaking incubations for microbial, mammalian, and plant cell cultures.
Key Features:
- Ultra-compact design: Maximizes bench space while providing ample capacity for your incubation needs.

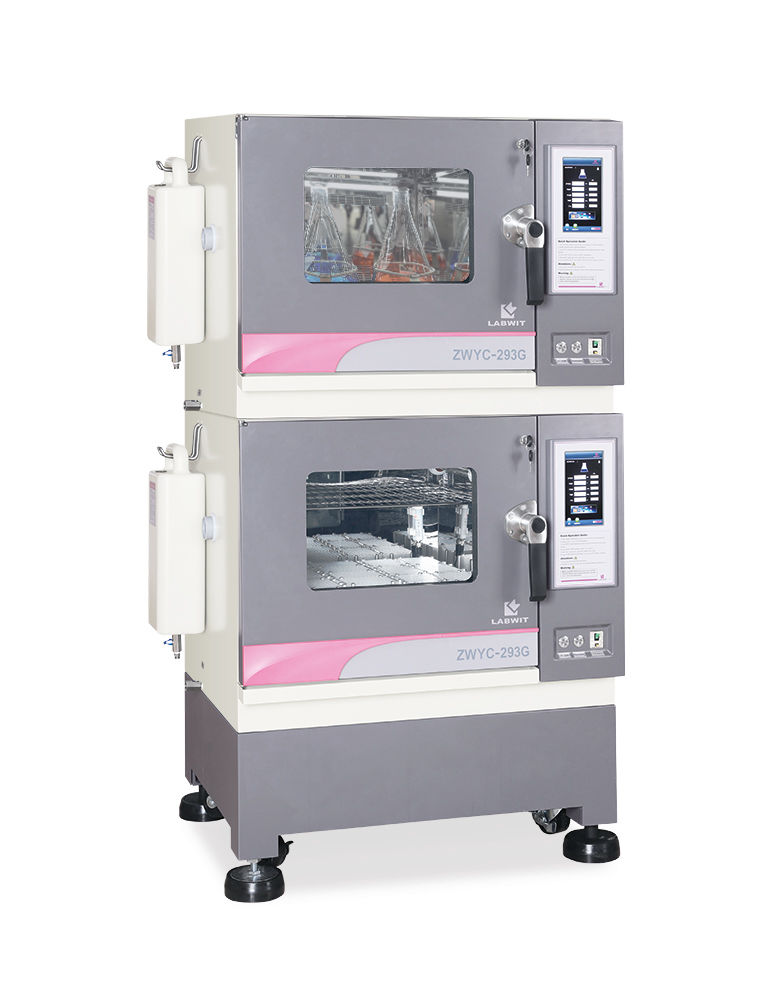

- Stackable configuration: Allows for easy expansion and customization to fit your laboratory setup. Compatible to stack with ZWYR-293.
- Ø1-50mm Shaking Diameter: Flexibility for most common shaking orbit used, ensuring uniform mixing and optimal growth conditions for small to large vessels.

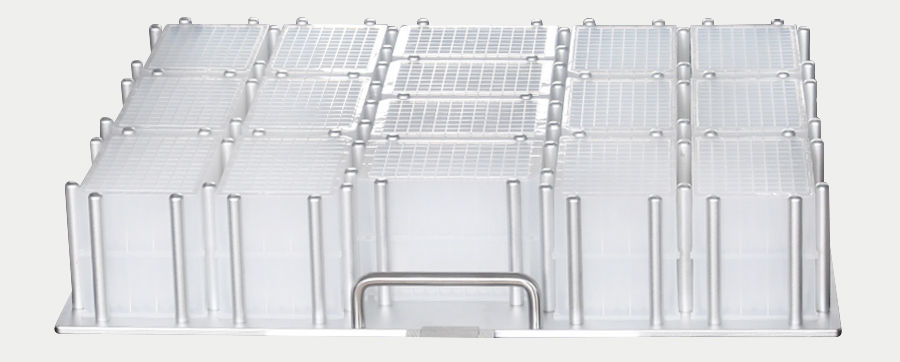

- Ø3m Shaking Diameter (P5052): Aligning with the trends of high throughput screening, this option enables high speed up to 1200rpm.
- Humidity Active Control (P5053): 140°C direct steam injection system enables fast responsive humidity control, preventing the sample from drying out.
- CO2 Control (P5054): World class single beam, dual wavelength IR CO2 sensor, providing reliable performance, ensuring the healthy growth of cell cultures.
- Condensation Control:
o Heated full piece of glass door panel with no screws, minimizes the condensation, and easy for cleaning
o Chamber with rounded corners for easy cleaning

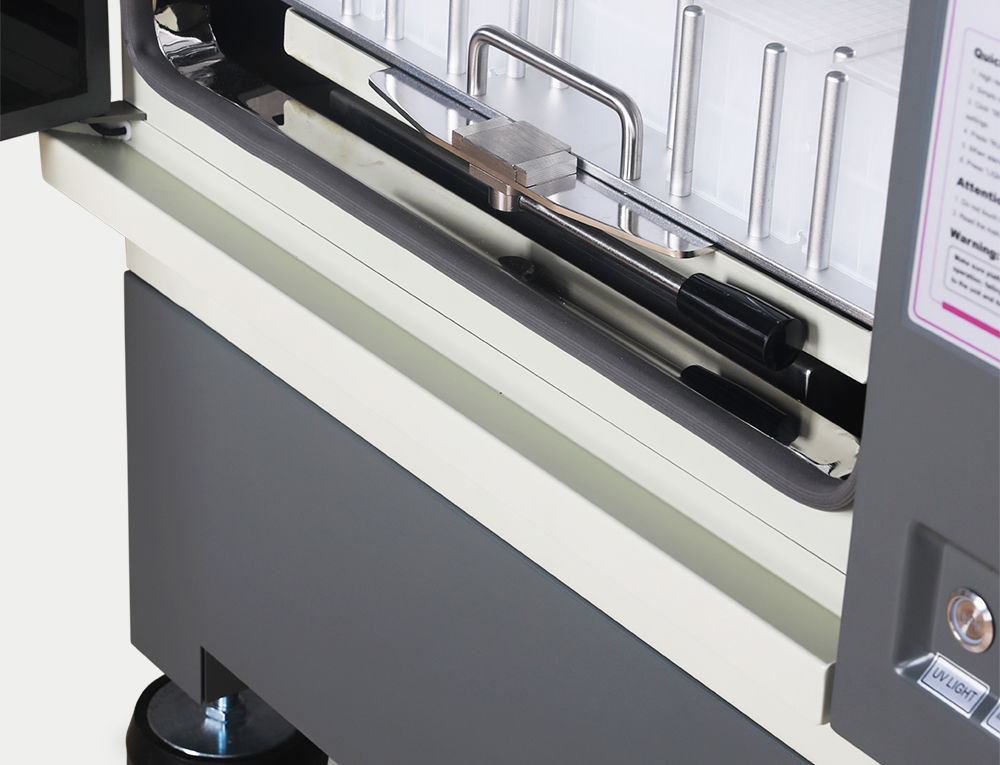

o Water dripping slot catches any excessive condensation - New dual lighting system: two sets of LED illumination and UV lighting inside the chamber. UV light is interlocked with the door opening.
- New ergonomic door handle locks the door securely preventing gas & water leakage.

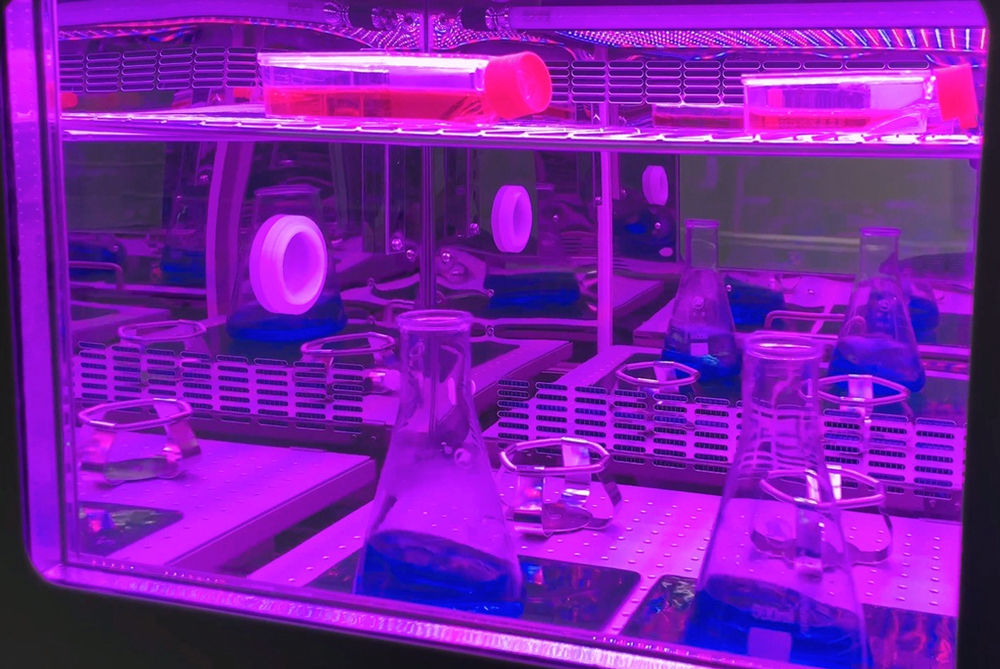

- LED photosynthetic lighting panels (P5031WW; P5031RB): Available in Red & Blue dual color; and warm white single color.
Technical information
Machine Specifications | |
---|---|
Model | ZWYC-293G |
Volume (L) | 120 |
Outside (WxDxH) | 840x764x625mm |
Inside (WxDxH) | 570x505x418mm |
Net/Gross Weight (kg) | 120/165 |
Control Panel | 7" (800x480) TFT Touch Screen |
Illumination | LED |
Language | English |
Ambient Temperature (°C) | 5-35°C |
UV Light | 254nm, 8W x 2Pcs |
Noise Level | <55 dB (1m above floor) |
Power | 765W |
Electricity | AC 220-240V 50/60 Hz |
Data Logging | USB port |
Static Shelf | Standard, 1 piece |
Base Stand | Standard: H 15cm, Options: H 35cm or H 50cm |
Key Lock | Yes, standard |
Shaking Unit | |
---|---|
Drive Type | Direct Beltless Driving System |
Tray Size (WxD) | 500 x 400mm |
Maximum Load | 15kg |
Speed Range | 30-300 rpm |
Speed Accuracy | ±1 rpm |
Timer | 0 - 9999 mins |
Shaking Mode | Orbital |
Shaking Diameter | Ø1-50mm Stepless Adjustment |
Temperature | |
---|---|
Control Mode | Fixed Value and Program |
Temp. Range (°C) | Ambient-20 to 60°C (Min. 4°C) # |
Temp. Accuracy (°C) | 0.1°C |
Temp. Uniformity (°C) | ±0.3°C @37°C |
Principle of Sensor | PT100 |
Air Circulation | 360m³/Hour |
Recovery (@37°C) | 8 mins (30 Seconds Door Opening) |
Control Mode | Fixed Value & Program |
Ø3mm Shaking Diameter (Option) | |
---|---|
Part No. | P5052 |
Shaking Speed | 100-1200rpm |
Shaking Tray | 96 Well Plate Tray (P6050) |
Tray Size (WxD) | 530 x 435mm |
Max. Capacity | 96 Deep Well Plate: 2x16 pcs |
Humidity (Option) | |
---|---|
Part No. | P5053 |
Humidity Range | 40-80%RH, at 25-55°C |
Humidity Accuracy | 0.1%RH |
Humidity Uniformity | ±3%RH |
Principle of Sensor | Capacitive |
System | Direct Steam Injection |
Co² (Option) | |
---|---|
Part No. | P5054 |
Principle of Sensor | Infrared, NDIR |
CO² Range | 0-20% |
CO² Accuracy | ±0.15 @ 5.0% |
Temperature Range | 25-55°C |
CO² Recovery (@5%) | 5 mins (30 Seconds Door Opening) |
Photosynthetic Lighting (Option) | ||
---|---|---|
Part NO. | P5031RB | P5031WW |
Light Type | LED, 50% Red, 50% Blue | LED, 100% Warm White |
Spectrum | Red: 640-660nm, | 4000k: 400-700nm |
Light Intensity | Up to 350 μmol/(m2*s) | Up to 220 μmol/(m2*s) |
Control | Yes, Individually, from 0-100% output | Yes, from 0-100% output |
Power | 120W | |
Control Mode | Fixed Value and Programmable | |
Dimensions (WxDxH) | 550x430x10mm | |
# Min. 15°C when Photosynthetic Lighting option is applied. With P5020, temperature range upgrade to 4-80°C, no UV light. |
Order Information | |
---|---|
ZWYC-293G | ZWYC-293G, 120L, Ultra Compact Shaking Incubator, 4-60°C |
P4003 | Built-in Printer |
P5053 | Direct Steam Humidification Kit for ZWYC-293G |
P5054 | IR CO² Kit for ZWYC-293G |
P5016 | RS-485 Interface |
P5020 | Temperature Upgrade, 80°C, for ZWYR-D2401; ZWYC/R-293 |
P5031RB | LED Lighting Panel and Control Kit, Red & Blue, for ZWYC/R-293 |
P5031WW | LED Lighting Panel and Control Kit , Warm White , for ZWYC/R-293 |
P5032-35 | Cabinet Base Stand for ZWYR-293, ZWYC-293G, 840 x 710 x 350mm |
P5032-50 | Frame Base Stand for ZWYR-293, ZWYC-293G, 840 x 710 x 500mm |
P5033 | TCP/IP interface |
P5052 | Ø3mm Shaking Diameter for ZWYC-293G, 150-1200rpm, with P6050 x 1 |
P6040 | Tray for ZWYC/R-293, 500x400mm, Predrilled |
P6041 | Tray for ZWYC/R-293, 500x400mm, Plain |
P6050 | 96 Well Plate Tray for ZWYC-293G, 530x435mm |
P7029 | Universal Spring Pallet for ZWYR-293, ZWYC-293G, 500 x 400mm |
P8010 | Tube Rack S/S |
P8011 | Tube Rack ABS Plastic |
P8032 | O Clamp for 96 Well Plate, S/S |
P8017 | Sticky Mat, 20 x 20cm |
P8022 | O Clamp, S/S, for 100ml Flask, with Spring Retainer |
P8023 | O Clamp, S/S, for 250ml Flask, with Spring Retainer |
P8024 | O Clamp, S/S, for 500ml Flask, with Spring Retainer |
P8025 | O Clamp, S/S, for 750ml Flask, with Spring Retainer |
P8026 | O Clamp, S/S, for 1000ml Flask, with Spring Retainer |
P8027 | O Clamp, S/S, for 2000ml Flask, with Spring Retainer |
P8028 | O Clamp, S/S, for 3000ml Flask, with Spring Retainer |
P8029 | O Clamp, S/S, for 5000ml Flask, with Spring Retainer |
