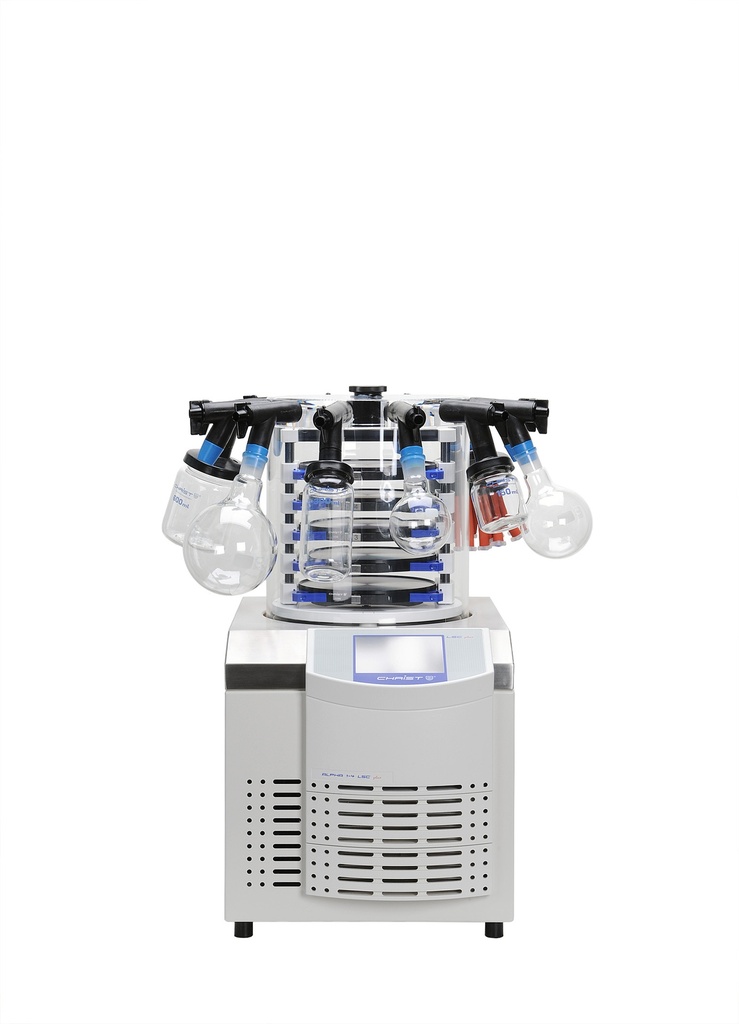

Freeze dryer Alpha 1-4 LSCplus

Reference: MAR-102141

Laboratory freeze-dryer
For efficient lyophilization of samples with the innovative Wireless Shelf Technology.

The Alpha 1-4 LSCplus Basic device consist in a compact tabletop unit for effective lyophilisation of specimens with innovative Wireless Shelf Technology. The freeze dryer can be configured with tried and tested accessories to meet your specific needs. The simple and intuitive LSCplus controller supports manual and automatic process control for reproducible results.
Two different drying methods are available to handle virtually every task. –55 °C condenser temperature for drying aqueous specimens.

Special Features

Vacuum control
Pressure rise test
Defrost function
Product temperature
Program selector

Equipped with natural refrigerants*
As a leading manufacturer of freeze drying systems, Martin Christ uses natural refrigerants to provide sustainable and environmentally friendly freeze drying solutions. These innovations help reduce environmental impact and build a greener future.

In 2009, Martin Christ became one of the first manufacturers to convert laboratory and pilot freeze dryers to nonflammable refrigerants. As a result, their freeze dryers have a particularly low Global Warming Potential (GWP) index.

* 50 Hz version, technichal changes reserved

Request more information

Technical information

Ice condenser capacity	4 kg
Ice condenser temperature	-55 °C
Dimensions of base model (W x H x D)	390 x 415 x 555 mm
Weight	48 kg
Communication port	Ethernet
GWP Index	2

aircooled
refrigerator 0,51 kW,
environmentally friendly,
natural refrigerant,
without vacuum pump,
bench top unit,
integrated support plate for direct mounting of acrylic chambers or accessories with a diameter of 300 mm,
stainless steel worktop,
ice condenser and ice condenser chamber with drain valve for defrosted water,
ice capacity max. 4 kg,
ice condenser performance max. 4 kg/24 h,
ice condenser temperature approx. –55°C,
ice condenser chamber 6.5 litres,
with hot gas defrosting,
vertical lay-out,
with associated accessories suitable for freezing and drying in a range of approx. -25°C to +60°C,
included vacuum sensor equipped with microprocessor controller LSCplus (Lyo-Screen-Control plus):
- VGA-TFT colour-Display,
- graphical user interface with touch screen,
- clearly arranged and "intuitive to use"-menu structures provide an optimum selection of different functions,
- graphical summary of programs similar to LPCplus software,
- data storage on USB memory (option),
- multi language user interface,
- access-protection by password,
- survey of process data in a freeze dryer-flow sheet,
- input of max. 30 freeze drying-programs in tabular form (option),
- can be combined with the WINDOWS-based software LPCplus for controlling and -documentation by PC
  useable for WST (wireless shelf technology) for heatable shelve
