MARTIN CHRIST

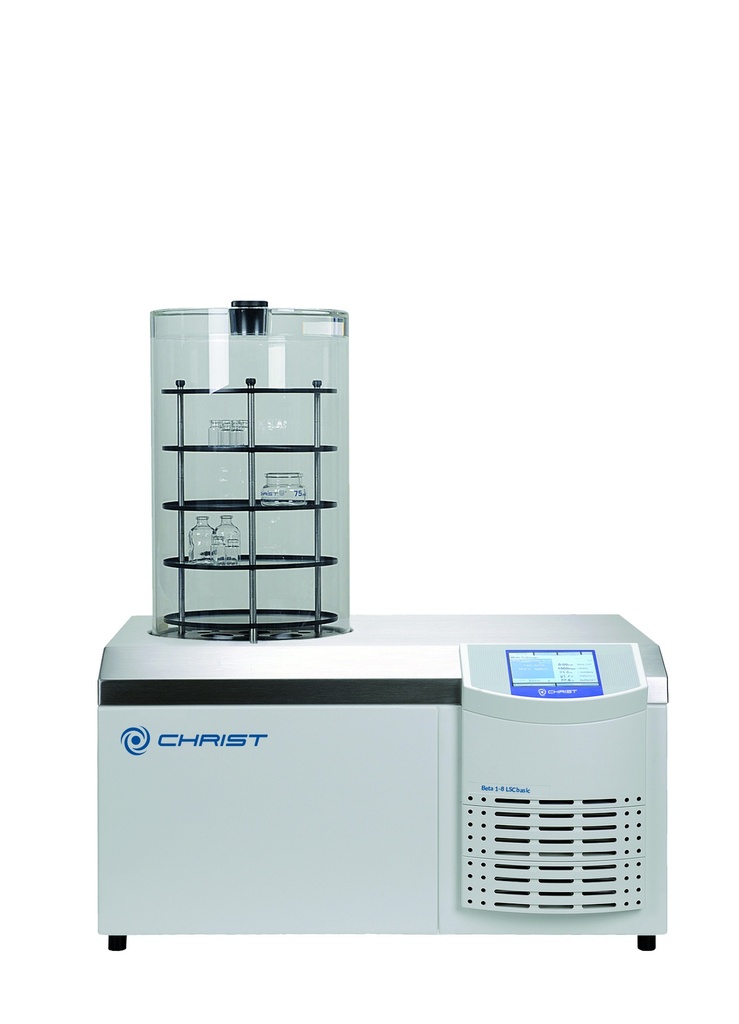

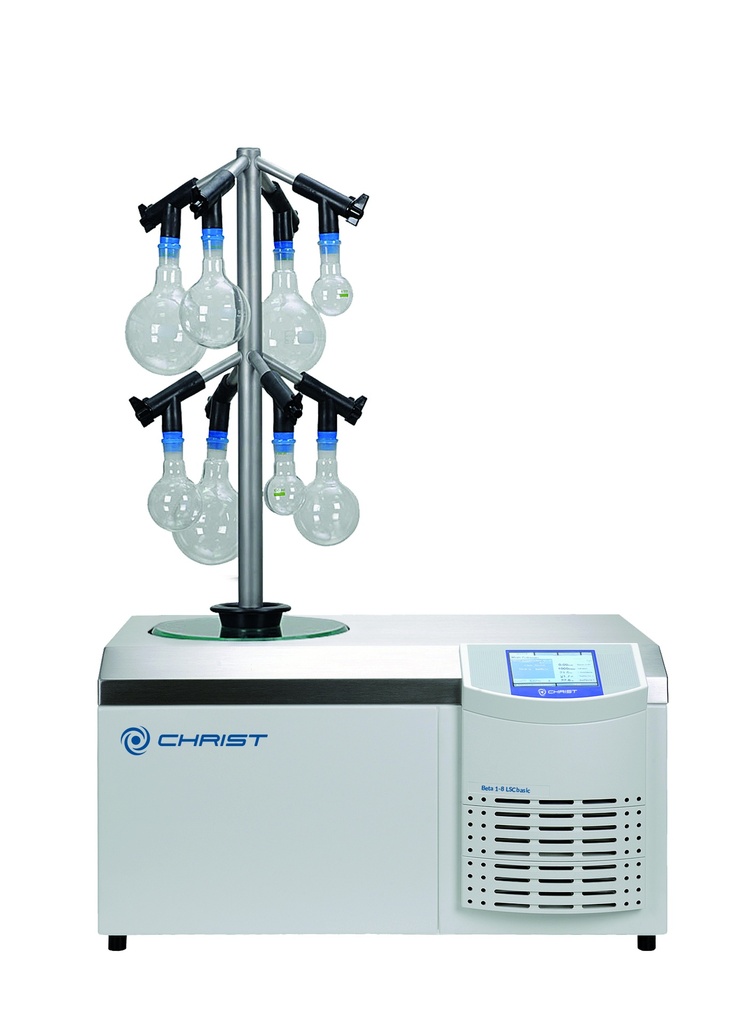

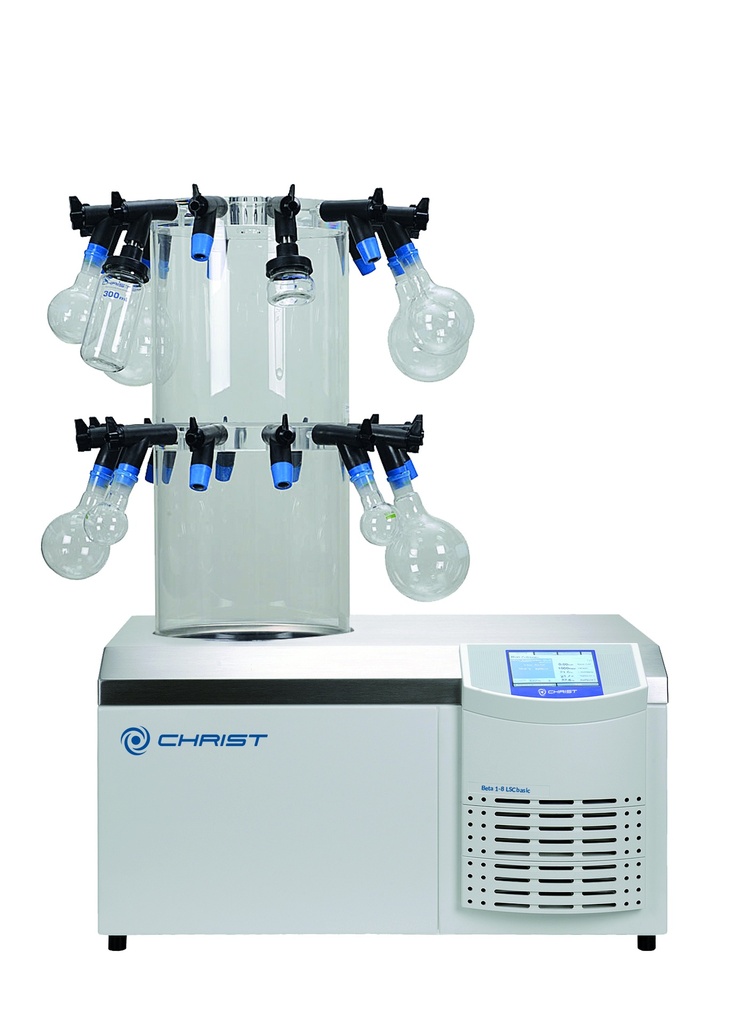

Freeze dryer Beta 1-8 LSCbasic

Reference: MAR-102420

Laboratory freeze-dryer
Compact benchtop unit for efficient drying of larger sample quantities

Beta 1-8 LSCbasic basic device consists of a Compact tabletop unit for the effective drying of relatively large specimen quantities. The LDplus user interface makes the work very easy. You can choose from a wide range of configurations to adapt the freeze dryer optimally to your specific needs. Condenser temperature of –55 °C for drying aqueous products.

Special Features

Conversion of product temperature and vacuum according to the vapour pressure curve above ice
Touch screen

Equipped with natural refrigerants*
As a leading manufacturer of freeze drying systems, we use natural refrigerants to provide sustainable and environmentally friendly freeze drying solutions. Our innovations help reduce environmental impact and build a greener future.

In 2009, we became one of the first manufacturers to convert our laboratory and pilot freeze dryers to nonflammable refrigerants. As a result, our freeze dryers have a particularly low Global Warming Potential (GWP) index.

* 50 Hz version, technichal changes reserved

Request more information

Technical information

Ice condenser capacity	8 kg
Ice condenser temperature	-55 °C
Dimensions of base model (W x H x D)	780 x 415 x 540 mm
Weight	63 kg
Communication port	Ethernet
GWP Index	2

aircooled,
environmentally friendly,
natural refrigerant,
without vacuum pump,
bench top unit,
integrated base plate for direct mounting of acrylic chambers or accessories with a diameter of 300 mm,
stainless steel worktop,
ice condenser and ice condenser chamber with drain valve for defrosted water, ice capacity max. 8 kg,
ice condenser performance max. 6 kg/24 h,
ice condenser temperature approx. -55°C,
ice condenser chamber 11 litres, with hot gas defrosting, vertical lay-out,
suitable for freeze drying in round flasks, wide neck filter bottles and/or on unheated shelves,
equipped with microprocessor controller LSCbasic (Lyo-Screen-Control basic):
- VGA-TFT colour-Display,
- graphical user interface with touch screen,
- clearly arranged and "intuitive to use"-menu structures provide an optimum selection of different functions,
- multi language user interface,
- access-protection by password,
- survey of process data,
  vacuum in combination with vacuum measuring sensor VCP 63 part no. 125488,
vacuum control possible in connection with pressure control valve part no. 125910

Broad choice of configurations detailled here : Beta 1-8 LSCbasic - Martin Christ Gefriertrocknungsanlagen
