PG 8593 AE WW AD 3NAC 400V 50Hz B
Reference: MIE-10088820

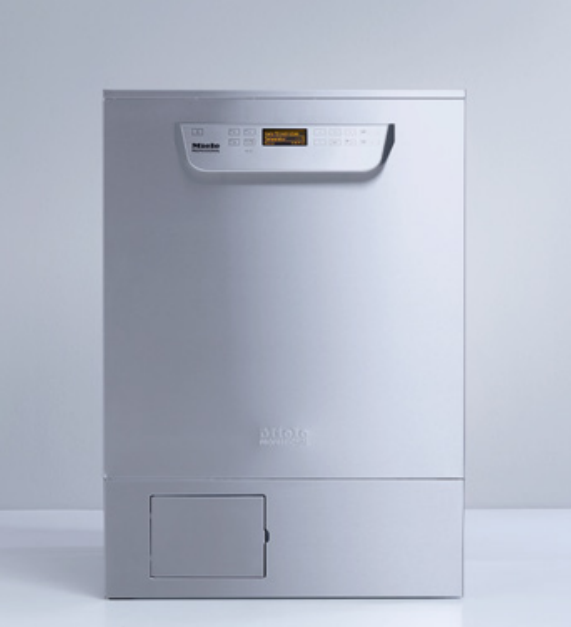

https://www.analis.com/shop/mie-10088820-pg-8593-ae-ww-ad-3nac-400v-50hz-b-25173 https://www.analis.com/web/image/product.template/25173/image_1920?unique=445f7d8The Miele PG 8593 is a professional laboratory glassware washer designed for efficient and hygienic cleaning, particularly for complex and delicate items like narrow-lumened laboratory glassware. One of its standout features is DryPlus active hot-air drying, which provides faster and more effective drying compared to models equipped with the EcoDry system. This feature is especially useful for ensuring that intricate glassware is thoroughly dried, minimizing the risk of contamination and improving workflow efficiency.
The DryPlus system uses HEPA-filtered air to ensure particle-free drying, making it ideal for critical laboratory applications. In contrast, the EcoDry system relies on passive drying by releasing steam after the program, which can be slower and less effective for demanding requirements.
This washer is also ergonomic, featuring an AutoClose function for ease of use and a salt container accessible from the door, eliminating the need for bending or heavy lifting during maintenance. It includes customizable programs to accommodate various types of glassware and soils, with ample capacity to handle high throughput in laboratory environments.
Technical information
Feature | PG 8593 |
---|---|
Width | 600 |
Height, depth [mm] | 835 (820¹), 600 |
Shortest cycle time³ [mins.] | 20 |
Capacity: Lab bottles | 128 |
Capacity: Pipettes | 98 |
Capacity: Mixed load consisting of laboratory bottles and pipettes | 130 |
Capacity: Mixed load consisting of laboratory glassware and phials | 260 |
Drying | DryPlus |
Conductivity monitoring | Optional |
Integrated dispenser pump (depending on version)⁴ | 1 |
Powder dispensing | – |
Special version for oil-based applications | Optional |
Integrated feed pump for demineralised water | Optional |
Drawer for supply canisters (3 x 5 l or 2 x 10 l) | – |
Electrical connection 3N AC 400 V, 50 Hz | • |
Total rated load [kW] | 9.3 |
