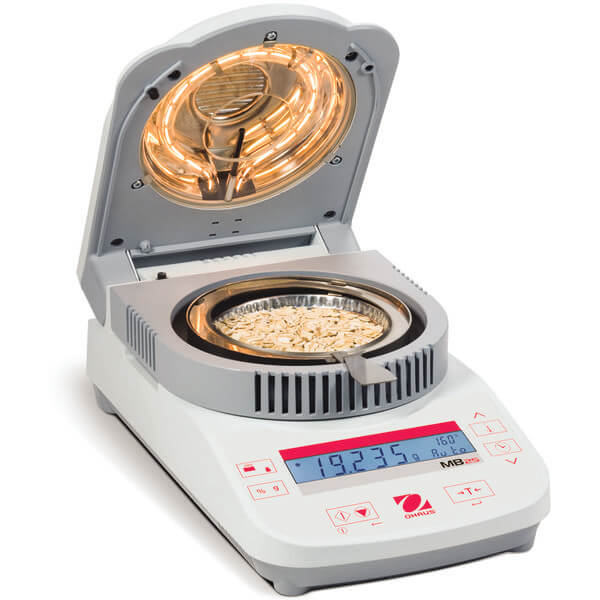

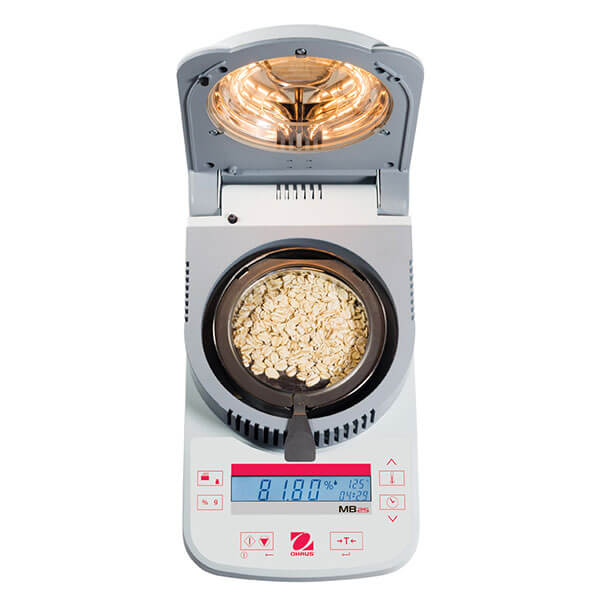

MB25 Moisture Balance
Reference: OHA-80252472
https://www.analis.com/shop/oha-80252472-mb25-moisture-balance-65163 https://www.analis.com/web/image/product.template/65163/image_1920?unique=9d1f5f0Outstanding Performance, Flexible Configuration and Reliable Results
The MB25 provides precise moisture content determination at an unbeatable value. With a large backlit LCD display, standard RS232 port, 110g capacity with a readability of 0.005g/0.05% and halogen heating, the MB25 offers moisture analysis for any budget.
Applications
Percent Moisture Determination, Percent Solid Determination, and Weighing
Display
Backlit liquid crystal display (LCD)
Operation
Power cord (included)
Communication
RS232 (included)
Construction
Halogen heat source, ABS housing, metal pan support, metal pan handler, in-use cover
Design Features
3 shut off criteria (manual, timed or auto), 1 standard heating profile, 50° to 160° C heating range (5° C increments)
Technical information
Maximum Capacity | 110 g |
Readability Moisture Content | 5 mg/0.05% |
Pan Size | 3.5 in (90 mm) |
Heater Type | Halogen Lamp |
Communication | RS232 (Included) |
Dimensions | 11 in x 5 in x 6.5 in (280 mm x 127 mm x 165 mm) (LxHxW) |
Display | Backlit LCD |
In-Use Cover | Included |
Net Weight | 5 lb (2.1 kg) |
Power | AC Power (Included) |
Shut-Off Criteria | Timed; Manual; Automatic - Preset Weight Loss/Time |
Temperature Range | 50 °C – 160 °C |
Units of Measurement | Gram |
Working Environment | 50°F – 104°F, 80%RH, non-condensing (10°C – 40°C, 80%RH, non-condensing) |
